GenV HyperGate45HP 35psi Black
The GenV HyperGate45 HP external wastegate is a motorsport-proven, cost-effective 45mm external wastegate with base spring pressure options of up to 50psi! Add some reference signal manipulation, and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.
Available In
38mm GenV UltraGate38HP - TS-0551-1312
40mm GenV CompGate40HP - TS-0552-1312
45mm GenV Hyperflow45HP - TS-0553-1312
Features
HP Actuator - Up to 50psi Base Pressure
Class Leading Thermal Performance
Class Leading CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Optional Actuator Liquid Cooling
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
Product details
-
Brand: Turbosmart
-
Part number: TS-0553-1312
-
Barcode: 9329677022155
-
Package dimensions: 22 x 17 x 14 cm
-
Package weight: 1.7465 kg

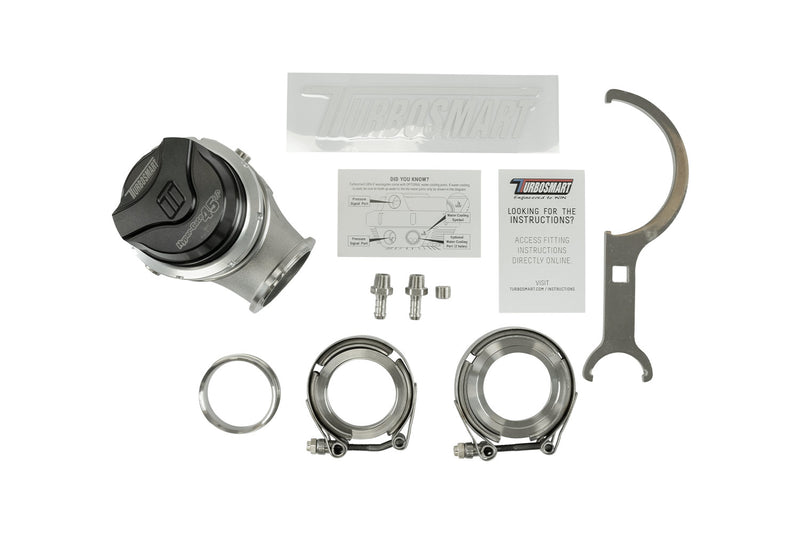

What's in the box
SUPPLIED WITH
GenV Wastegate unit
Locking Collar Tool
10 and 25psi springs Included in Box
GenV SS316 Valve seat
V-Band Inlet and Outlet Clamps
Inlet and Outlet Flanges
Hose Tale and Blank Fitting Kit
Turbosmart Decal
Technical drawings
View technical drawing
Product video
https://www.youtube.com/watch?v=ftm67JPF_qE, https://www.youtube.com/watch?v=xsIuj4N-uMU, https://www.youtube.com/watch?v=pAZ-JWmw0SQ, https://www.youtube.com/watch?v=iIeI141vSDA
