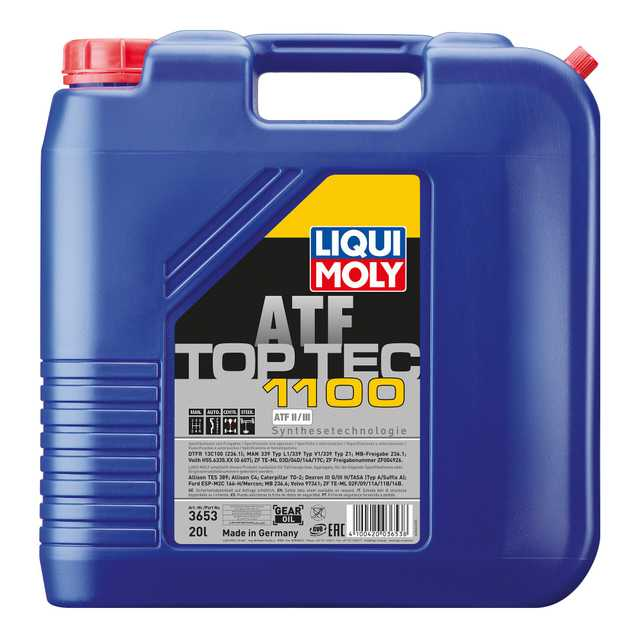

LIQUI MOLY Top Tec ATF 1100
Next generation synthetic technology automatic transmission fluid with extremely high performance reserves. Provides high thermal stability, thereby ensuring optimum resistance to aging. Outstanding protection against wear and good friction characteristics. Maximum safety reserves thanks to modern additive technology. With improved formula for long transmission service life. Compatible with all sealing materials.
Key benefits
- optimum stability to aging
- excellent corrosion protection
- minimizes wear
- excellent viscosity/temperature properties
- outstanding friction characteristics
- very good low-temperature properties
- highest thermal stability
- high chemical resistance
Suitable applications
For automatic transmissions, manual transmissions, steering systems, hydraulic systems and auxiliary drives in both passenger cars and commercial vehicles. Usage according to the prescribed specifications from the unit or vehicle and transmission manufacturers.
Specifications and approvals
DTFR 13C100 H, MAN 339 Typ L1, MAN 339 Typ V1, MAN 339 Typ Z1, MB-Approval 236.1, Voith H55.6335.XX (G 607), ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 14A, ZF TE-ML 17C, ZF approval number ZF004926
LIQUI MOLY recommendations
Allison C4, Allison TES 389, Caterpillar TO-2, Dexron III G, Dexron III H, Dexron TASA (Typ A/Suffix A), Ford ESP-M2C 166-H, Ford Mercon, MB 236.6, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 09, ZF TE-ML 11A, ZF TE-ML 11B, ZF TE-ML 14B
Application
The specifications and instructions from the unit or vehicle manufacturer must be followed. Top Tec ATF 1100 can also be used for refilling systems in which traditional ATF oils are used. Optimum effectiveness, however, is only possible when the product is used on its own (i.e. no mixing).
Product details
-
Brand: LIQUI MOLY
-
Part number: 3653
-
Pack size: 20 L
Suitable applications:
For automatic transmissions, manual transmissions, steering systems, hydraulic systems and auxiliary drives in both passenger cars and commercial vehicles. Usage according to the prescribed specifications from the unit or vehicle and transmission manufacturers.
Specifications and approvals:
DTFR 13C100 H, MAN 339 Typ L1, MAN 339 Typ V1, MAN 339 Typ Z1, MB-Approval 236.1, Voith H55.6335.XX (G 607), ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 14A, ZF TE-ML 17C, ZF approval number ZF004926
LIQUI MOLY recommendations:
Allison C4, Allison TES 389, Caterpillar TO-2, Dexron III G, Dexron III H, Dexron TASA (Typ A/Suffix A), Ford ESP-M2C 166-H, Ford Mercon, MB 236.6, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 09, ZF TE-ML 11A, ZF TE-ML 11B, ZF TE-ML 14B
Application:
The specifications and instructions from the unit or vehicle manufacturer must be followed. Top Tec ATF 1100 can also be used for refilling systems in which traditional ATF oils are used. Optimum effectiveness, however, is only possible when the product is used on its own (i.e. no mixing).
Before ordering an oil or fluid, check the viscosity, specification, approval and capacity required by the vehicle or component manufacturer. If you are unsure, submit your registration number and state through our Parts Finder.
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
