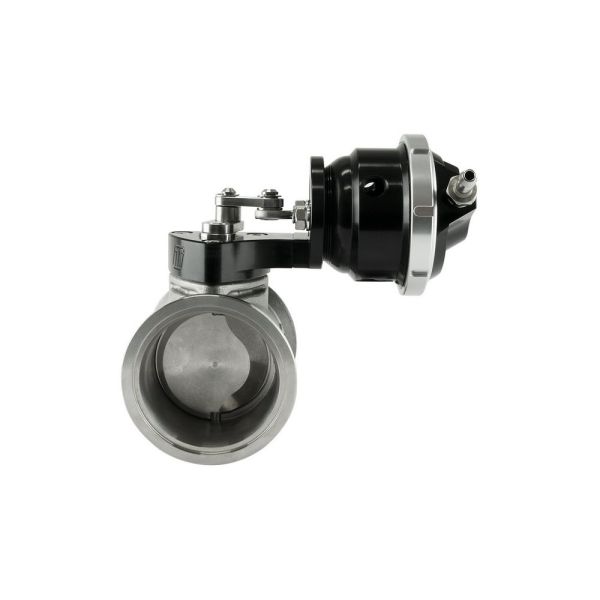

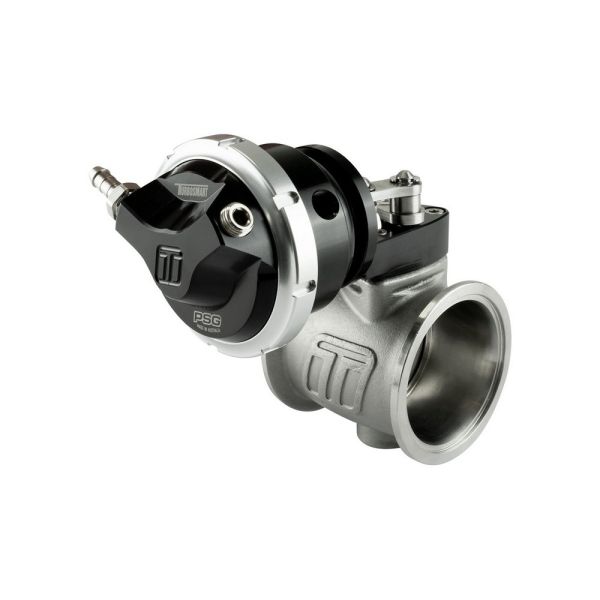

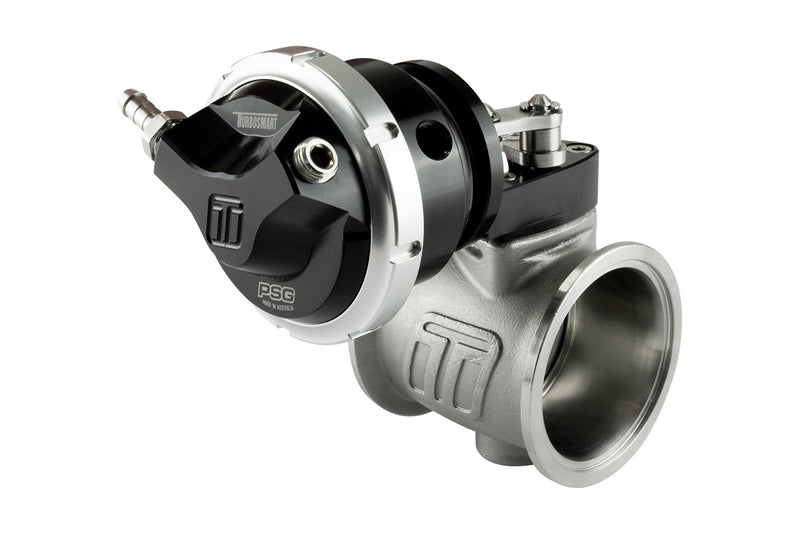

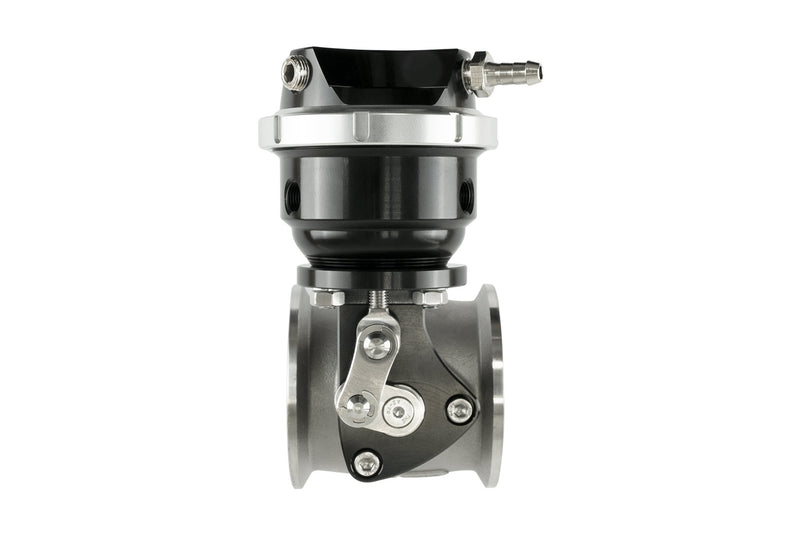

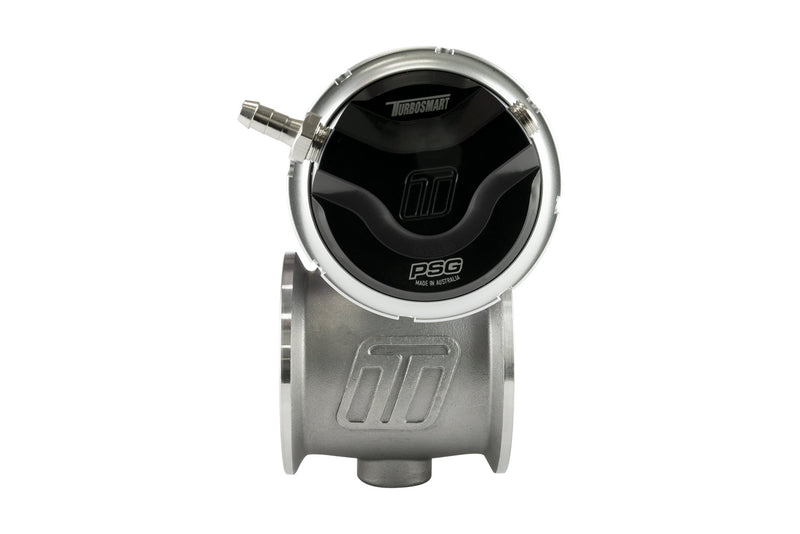

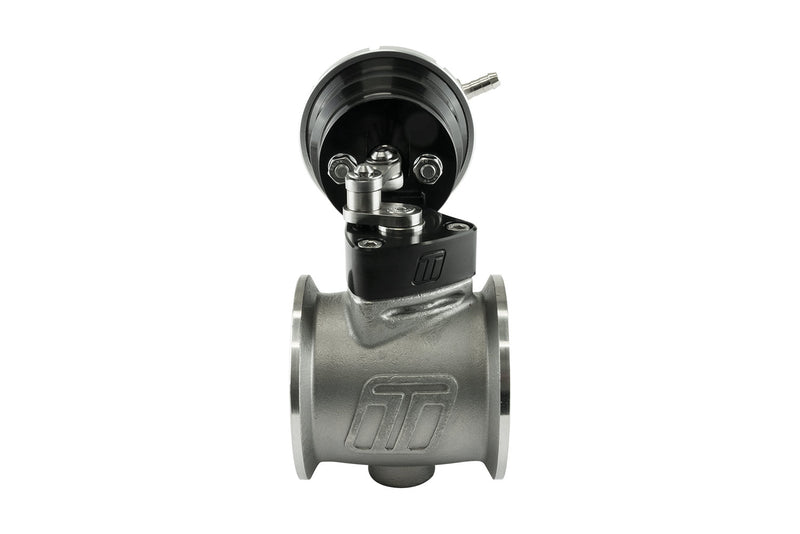

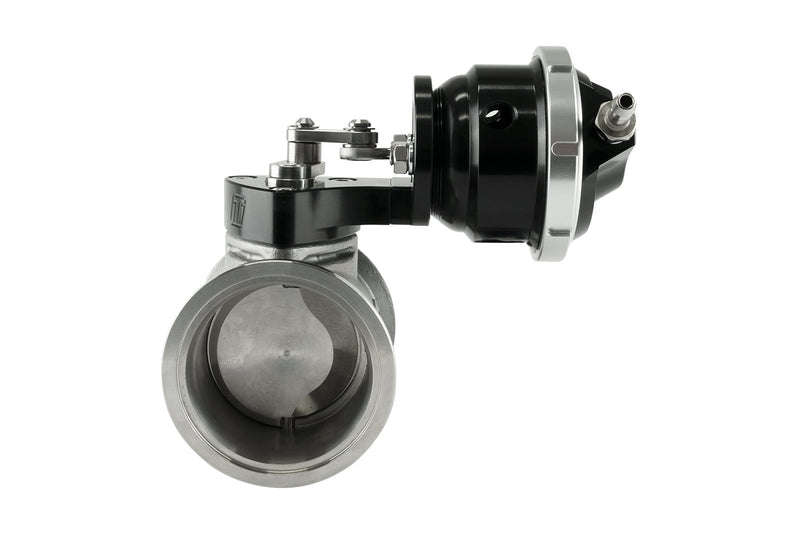

PSG50 Pneumatic Straight Gate 6psi Black
The StraightGate50 from Turbosmart is the world's highest-flowing 50mm external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.
The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!
The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.
Available in
Electronic eSG50 StraightGate50
Pneumatic (Boost-Based) pSG50 StraightGate50
Pneumatic (Vacuum-Based) pSG50v StraightGate50
Features
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
Aluminium (6262 T6 Anodised) Bracket & Actuator
Turbosmart unique Locking Collar Ring
Base Spring Options from 6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages and Control Arm
Product details
-
Brand: Turbosmart
-
Part number: TS-0565-1762
-
Barcode: 9329677026573
-
Package dimensions: 22 x 17 x 14 cm
-
Package weight: 2.03 kg

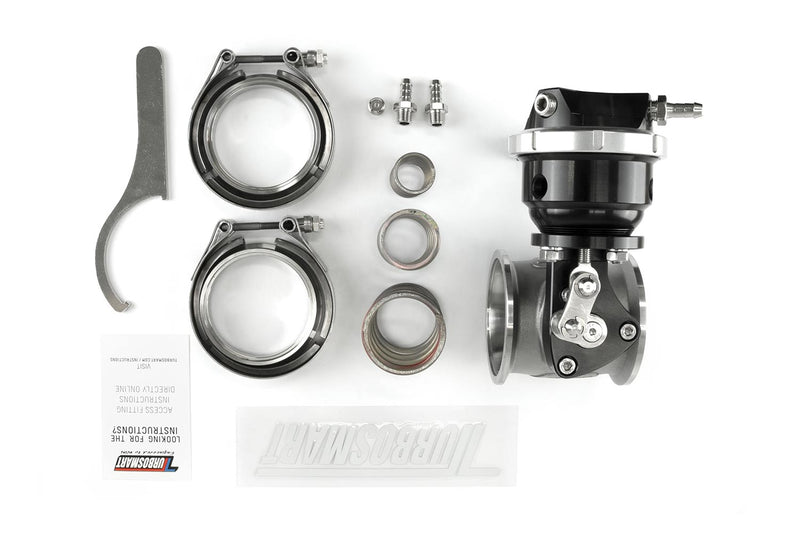

What's in the box
SUPPLIED WITH
Boost-Based Pneumatic StraightGate50
StraightGate50 Inlet and Outlet Flanges
StraightGate50 Inlet and Outlet Weld Flanges
6psi Springs Pre-Installed
All Other Springs including in box
2 x 1/8 NPT Hose Tail Fittings
2 x 1/8 NPT Blanking Plugs
Turbosmart Decal

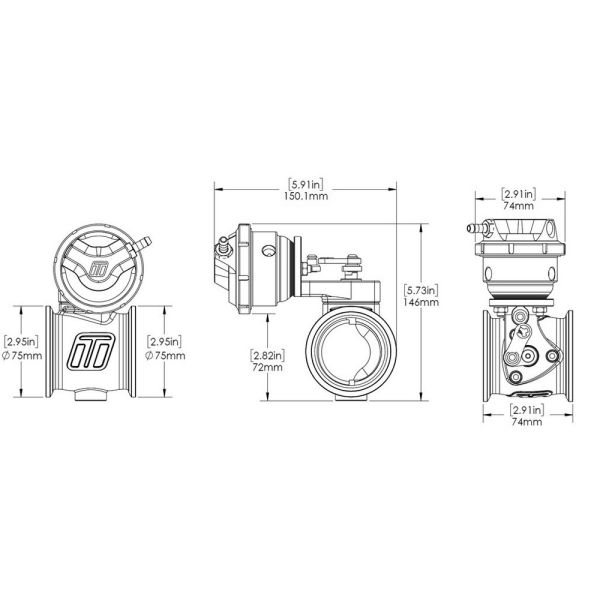

Technical drawings
View technical drawing
