Radium Engineering Fuel Filter with Check Valve - 6 Micron Microglass

Name: Radium Engineering Fuel Filter with Check Valve - 6 Micron Microglass
Brand: Radium Engineering
SKU: 20-1220-05
Price: 261.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-1220-05

$261.99 - $261.99

$261.99

$261.99 - $261.99

$261.99

Description

Radium Engineering Fuel Filter with Check Valve - 6 Micron Microglass

Application: Universal
Part Type: High-flow fuel filter with integrated check valve, 6 micron microglass element
Part Number: 20-1220-05

The Radium 20-1220 series fuel filter has an anodised silver outlet cap containing a one-way check valve. It uses the same elements and has the same physical dimensions as Radium's 20-0220 series high-flow filters.

The check valve can hold pressure in the fuel rail when the engine or pump is off, which can speed up engine restarts. It's useful with pumps that don't have a backflow check valve, or with venturi jet pumps that operate on the high-pressure side. This version has a 6 micron microglass element, and meets and exceeds filtration requirements for fuel injection.

Key Features

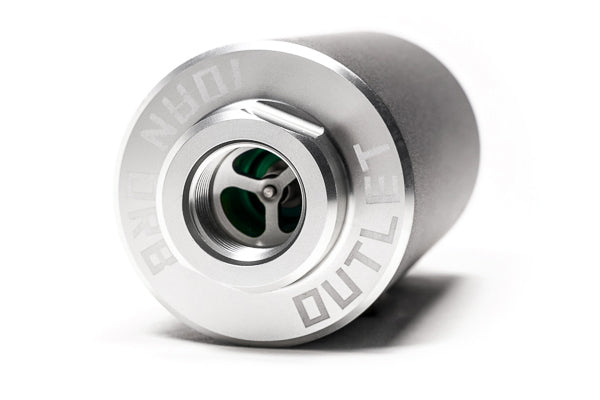

Check Valve Outlet: Anodised silver outlet cap with integrated one-way check valve
Element: 6 micron microglass - microglass element can not be reused - replace when serviced
10AN ORB Ports: Removable end caps with large 10AN ORB female threaded ports for high-flow plumbing
Billet Body: Three-piece body CNC machined from 6061 aluminium, Type II anodised, sealed with FKM O-rings
Collapse Resistant: Elements have a stainless steel internal core to resist collapse at high flow
Low Restriction: Flow tested at 1 psi drop at 300 LPH and 2.5 psi drop at 700 LPH
Fuel Compatibility: Petrol, diesel, methanol, ethanol and blends such as E85

What's Included

Fuel filter with check valve outlet, preassembled with the 6 micron microglass element

Optional Parts

Radium Replacement Fuel Filter Element (18-0025-05) - replacement 6 micron microglass element (same elements as the 20-0220 series)
Radium 60mm 2-Piece Clamp Mounting Bracket - Single (20-0218) - 60mm 2-piece clamp - three stainless M5 bolts secure it to the vehicle
Radium Fuel Filter Clamp 60mm w/Heat Exchanger (20-0221) - 60mm heat exchanger clamp - mount where cool air can pass the fins
Radium Engineering Fuel Filter with Check Valve - 10 Micron Stainless (20-1220-03) - the same filter with a 10 micron stainless element

Important Notes

10AN ORB adapter fittings and mounting clamps are sold separately
Uses the same replacement elements as Radium's 20-0220 series filters
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
