Radium Engineering Radium Engineering 20-1105-V Remote Mount, Vented Standard Filler, 1.5in Elbow, product image, part 20-1105-V

Radium Engineering 20-1105-V Remote Mount, Vented Standard Filler, 1.5in Elbow

Name: Radium Engineering 20-1105-V Remote Mount, Vented Standard Filler, 1.5in Elbow
Brand: Radium Engineering
SKU: 20-1105-V
Price: 365.0 AUD
Availability: InStock

by Radium Engineering

SKU 20-1105-V

$365.00 - $365.00

$365.00

$365.00 - $365.00

$365.00

Description

Radium 20-1105-V Remote Mount, Vented Standard Filler, 1.5in Elbow

Application: Universal - remote-mount fuel filler for fuel cells and surge tanks
Part Type: Remote mount fuel filler - vented standard cap, 1.5in 24AN elbow
Part Number: 20-1105-V

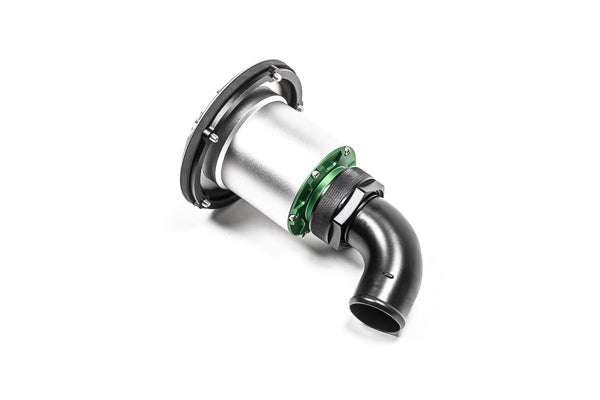

A remote mount fuel filler sits away from the fuel cell or tank - usually on a body panel - and connects to the fill neck via filler hose. The Radium Engineering 20-1105-V uses a vented, threaded standard cap with built-in roll-over protection, and a 75° 24AN elbow outlet for 1.5in filler hose.

The cap is tethered to the filler, and the standard filler can later be upgraded to a dry break with the Radium 20-0549-V.

Key Features

Vented Standard Cap: Threaded vented cap with roll-over protection
24AN Elbow Outlet: 1.5in, 75° 24AN elbow for 1.5in filler hose
Tethered Cap: Tether components included

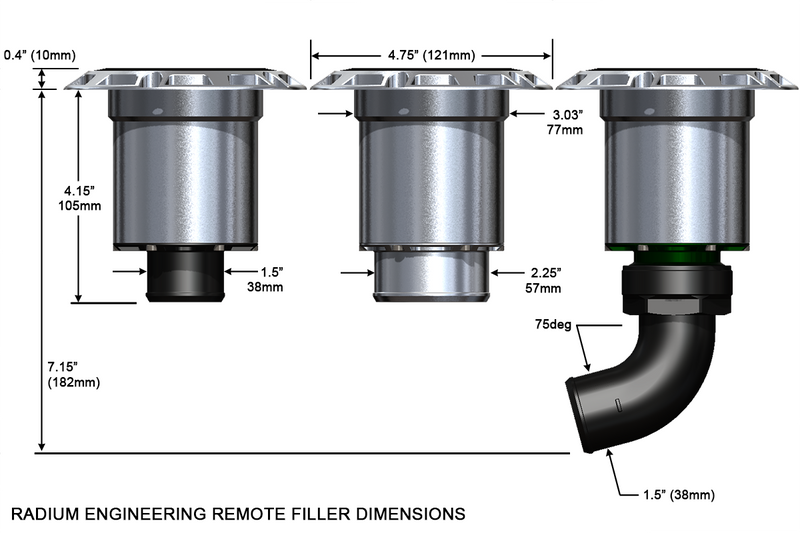

Flush Remote Mount: 120.7mm (4.75in) flange with five M5 bolts on a 108mm (4.25in) PCD; requires a 77mm (3.03in) mounting hole
Interchangeable Caps: All Radium remote filler cap styles share the same threads and are interchangeable
Swappable Outlet: The outlet adapter can be changed by removing six screws (adapters sold separately)
Fuel Compatibility: Leaded/unleaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85

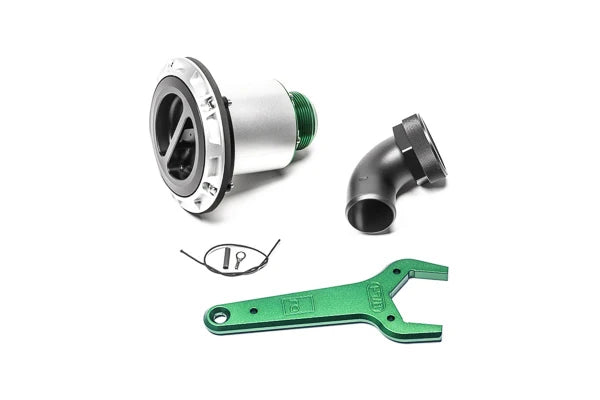

What's Included

Vented cap with roll-over protection
Flanged fill neck
Ozone/flame-resistant gasket (FKM compatible)
Anodised aluminium nut ring
Stainless steel M5 bolts
Tether components
24AN B-nut
24AN elbow
1-7/8in aluminium wrench

Optional Parts

Radium Fuel Cap, Remote Mount, Vented (20-0548-V) - replacement vented cap
Radium Dry Break, 1.5In, Female, Vented (20-0549-V) - upgrades the filler to a 1.5in dry break
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) - tank-side fill neck for FCST-X surge tanks
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) - straight tank-side fill neck for FCST-X surge tanks
Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) - black reinforced 1.5in filler hose
Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) - clear unreinforced 1.5in filler hose

Important Notes

Tank-side components (fill neck and filler hose) are not included
Radium 20-1027 and 20-1047 fill necks suit FCST-X surge tanks only; older 6-bolt FCST units use the 20-0527 fill neck
Black 20-0597 filler hose is reinforced; clear 20-0602 hose is unreinforced, kinks easily when bent and can cloud with some fuels - inspect and replace as needed
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
