Radium BMW E46 Fuel Pump Hanger
Application: BMW E46 3 Series incl. M3 and M3 CSL (OEM BMW/VDO level senders required)
Part Type: Dual-side fuel pump hanger (one or two pumps, pumps sold separately)
Part Number: 20-1180

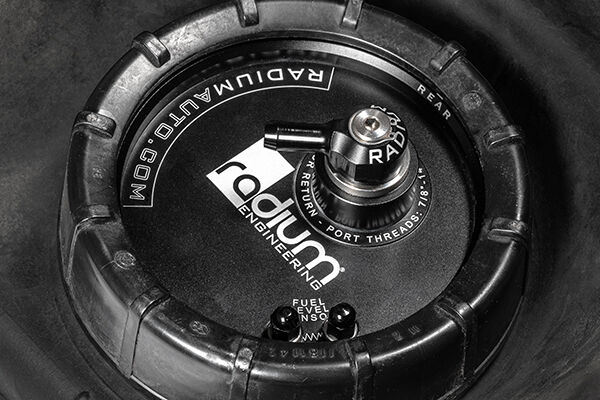

The Radium 20-1180 replaces both the left and right-side fuel hat assemblies in the BMW E46 saddle tank. It runs one or two aftermarket fuel pumps, reuses the OEM passive and active fuel level sensors and retains a true saddle-tank crossover - with no cutting or modification to the vehicle.

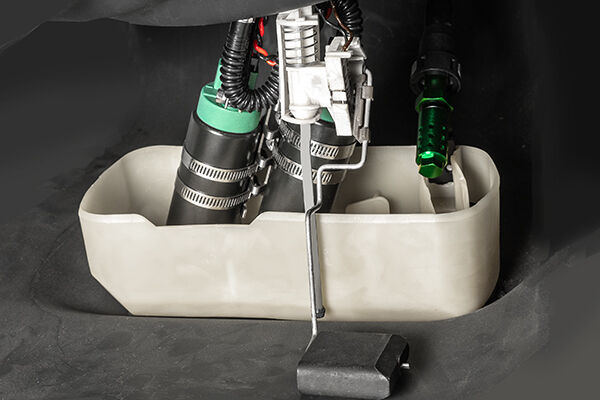

The collector bowl is fed from three sources: the OEM labyrinth, low-pressure return fuel driving the venturi siphon, and crossover fuel scavenged from the passive side. A redesigned PRV venturi jet pump with built-in pressure relief valve limits excess return flow, which can otherwise pop the OEM connection when high-flow pumps run at low load, and allows low static fuel pressure.
Key Features
-
One or Two Pumps: Supports one or two aftermarket pumps, brushed (2-wire) or brushless (3/4-wire)
-
OEM Sensors Retained: Reuses the OEM passive and active fuel level sensors
-
Saddle Tank Crossover: True crossover retained, with three-source collector bowl feed
-
PRV Venturi Jet Pump: Built-in pressure relief valve protects the OEM connection and allows low static pressure
-
Fittings: Merged pump outlet and return inlet tapped 10AN ORB (7/8"-14), with SAE quick-connect barb to the OEM feed line and 8.5mm barb to the OEM return line
-

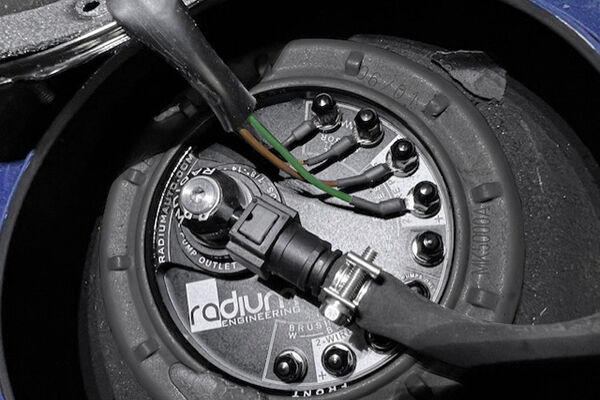

Electrical: Hermetically sealed anti-rotation stainless studs, anodised aluminium acorn nuts and ETFE-insulated in-tank wiring
-
No Modification: Drop-in installation with no cutting or modification

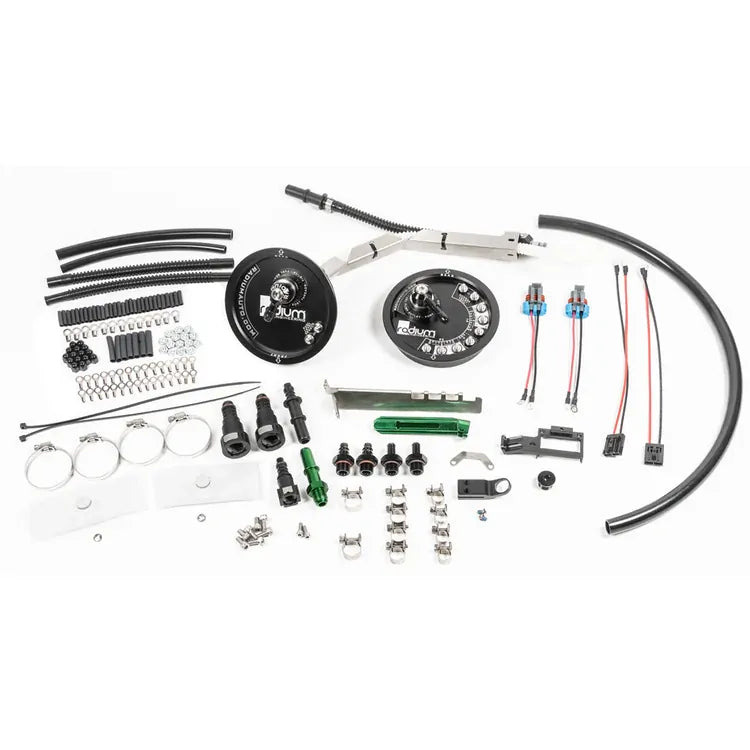

What's Included
- Feed-side and return-side hanger tops, partially assembled
- Full new jet pump system
- Parts to install one or two compatible pumps (pump filter socks included)
- Electrical parts kit for external wiring at the hanger top
Optional Parts
-
Radium Engineering 20-1175 Fuel Hanger Plumbing Kit, BMW E36/E46 (20-1175-03) - 8AN feed/6AN return plumbing kit with DMR-RA regulator, gauge and filter
-
Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - one wiring kit per pump
-
Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) - check valve for pumps without an integrated check valve (e.g. F90000295)
-
Radium Adjustable Pressure Switch (20-0236) - adjustable pressure switch for staging a second pump
Important Notes
- Fuel pumps not included - verified pumps: Walbro GSS342, F90000267, F90000274, F90000285, F90000295 (no integrated check valve - see 20-1534); Ti Automotive E5LM; Protec 11928 / Fuelab 49614; DeatschWerks DW440, DW810. Other similar pumps may fit but are not verified
- Not compatible with aftermarket Bosch senders - OEM BMW (VDO) senders are required
- Single-pump installs can reuse the OEM pump wiring (upgrade recommended for full power); a second pump requires its own dedicated relay and fuse
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- BMW E46 316i (1999-2005)
- BMW E46 318i (1998-2006)
- BMW E46 320i (1998-2006)
- BMW E46 323i (1998-2000)
- BMW E46 325i (2001-2006)
- BMW E46 328i (1998-2000)
- BMW E46 330i (2000-2006)
- BMW E46 330i ZHP (2003-2006)
- BMW E46 M3 (2000-2006)
- BMW E46 M3 CSL (2003-2004)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- BMW E46 316i (1999-2005)
- BMW E46 318i (1998-2006)
- BMW E46 320i (1998-2006)
- BMW E46 323i (1998-2000)
- BMW E46 325i (2001-2006)
- BMW E46 328i (1998-2000)
- BMW E46 330i (2000-2006)
- BMW E46 330i ZHP (2003-2006)
- BMW E46 M3 (2000-2006)
- BMW E46 M3 CSL (2003-2004)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
