Radium Engineering Catch Can Kit, CCV, 15-17 Ford Mustang GT, Fluid Lock

Radium Catch Can Kit, CCV, 15-17 Ford Mustang GT, Fluid Lock

Application: Ford Mustang GT 2015-2017 (S550) 5.0L
Part Type: CCV (crankcase vent) catch can kit
Part Number: 20-0287-FL

A catch can separates oil and water condensation from crankcase gases before they reach the intake, preventing oil build-up on the intake, intercooler walls, throttle body and intake manifold. Cleaner intake air helps effective octane and performance, and the closed system keeps oil vapour out of the cabin.

The 20-0287-FL CCV kit mounts on the front left-hand bank of the 2015-2017 Mustang GT and runs inline between the crankcase breather port and the air filter inlet pipe. Fluid Lock is Radium's patented catch can design: it stops the reservoir overfilling and holds collected fluid until it is emptied. Without it, contaminants can overflow back into the intake and hurt engine performance.

Key Features

• Mounting: Front LH bank, inline between the crankcase breather port and the air filter inlet pipe
• Fluid Lock Design: Radium's patented Fluid Lock mechanism stops the reservoir overfilling and holds collected fluid until it is emptied, so contaminants can't spill back into the intake
• Large Ports: 10AN ORB inlet and outlet ports with a 4AN ORB drain port
• Efficient Separation: 2-step oil separation baffling
• Easy Checking: O-ring sealed dipstick shows how much fluid has been collected
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required

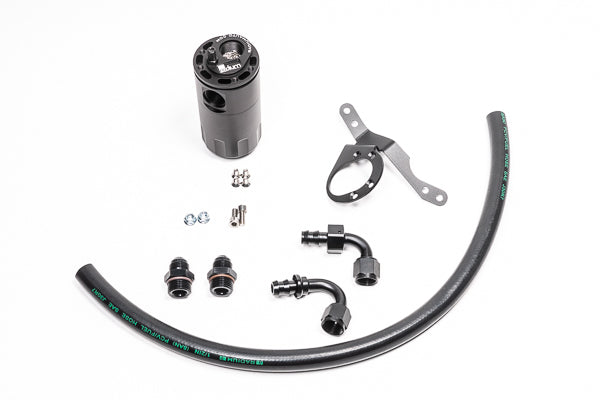

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Anodised laser-cut Mustang GT specific mounting bracket
• Anodised aluminium 8AN adapter fittings and hose ends
• Enough 1/2" PCV hose for custom applications
• Stainless steel mounting hardware

Optional Parts

• Radium PCV Fluid Lock Catch Can Kit, Ford Mustang GT (2011-2017) (20-0267-FL) - PCV-side kit; combined with this kit it equals the 20-0325-FL dual kit
• Radium Dual Catch Can Kit, 15-17 Ford Mustang GT, Fluid Lock (20-0325-FL) - PCV + CCV kit in one for maximum engine protection
• Radium Catch Can Petcock Drain Kit (20-0024) - drain the can without removing the reservoir, where there is room underneath

Important Notes

• S550 (2015-2017) only - for 2011-2014 (S197) Mustang GT use 20-0279-FL
• There is no fixed emptying interval - check the dipstick after 3-4 weeks of driving and repeat as needed (PCV cans generally collect more than CCV cans)
• Empty by unscrewing the lower reservoir, or fit the optional Petcock Drain Kit where there is room under the can
• Excessive oil collection can indicate an engine problem such as excessive blow-by, an overfilled sump, poor breather port placement/baffling or a PCV valve leaking under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT 2015-2017 (S550) 5.0L

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Ford Mustang GT 2015-2017 (S550) 5.0L

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
