Radium Engineering CCV Fluid Lock Catch Can Kit, Honda Civic Type R (FK8 / FL5)

Radium CCV Fluid Lock Catch Can Kit, Honda Civic Type R (FK8 / FL5)

Application: Honda Civic Type R FK8 / FL5 and Acura Integra Type S (LHD only)
Part Type: CCV Fluid Lock oil catch can kit
Part Number: 20-0825-FL

The Radium 20-0825-FL catch can kit runs inline with the crankcase vent (CCV) port of the Civic Type R's K20C1, separating oil and moisture from crankcase gases before they reach the intake. This helps keep oil out of the intake tract, intercooler, throttle body and manifold, and keeps oil vapour out of the cabin.

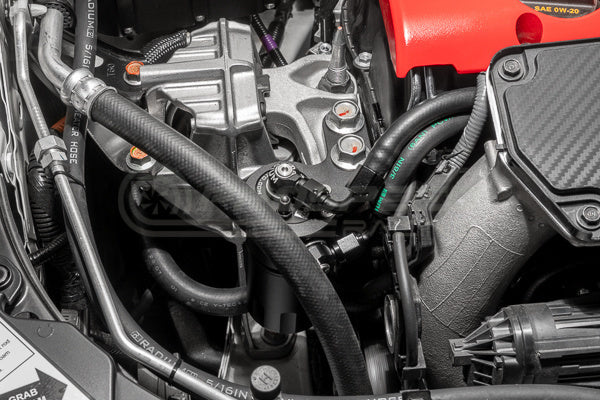

The can fits under the OEM engine cover and mounts to the RH engine mount, with the vent lines routed over the engine and clamped to the turbo inlet pipe using temperature-resistant metal tubes. Since 2022, Radium cans use the patented Fluid Lock reservoir, which prevents overfilling and traps collected fluid until it's emptied.

Key Features

• CCV Circuit: Installs inline with the crankcase vent port

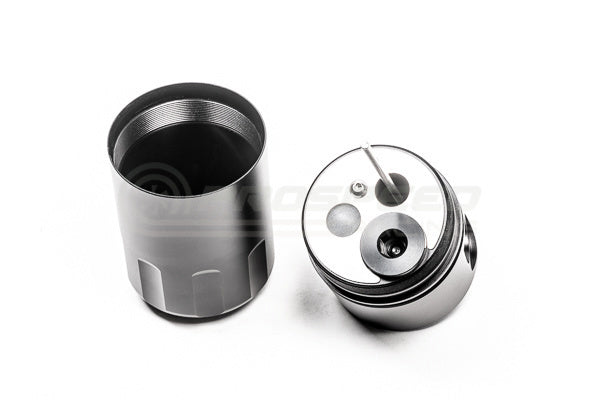

• Fluid Lock: Patented Fluid Lock design stops the reservoir overfilling and traps collected fluid until the can is emptied
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick to check the fluid level
• Under-Cover Fitment: Fits under the OEM engine cover, mounting to the RH engine mount

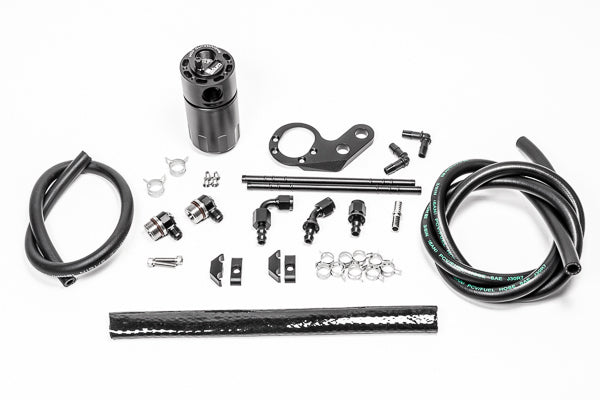

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Anodised aluminium Civic Type R-specific mounting bracket
• Anodised aluminium AN adapter fittings and hose ends
• PCV hose for custom applications
• Stainless steel mounting hardware

Optional Parts

• Radium PCV Fluid Lock Catch Can Kit Honda Civic Type R FK8/FL5 (20-0424-FL) - adds the PCV-side can
• Radium Dual Fluid Lock Catch Can Kit, Honda Civic Type R (FK8 / FL5) (20-0826-FL) - PCV and CCV kits together - Radium recommends this for maximum engine protection
• Radium Catch Can Petcock Drain Kit (20-0024) - drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• Radium lists these kits for left-hand-drive vehicles only - not listed for right-hand-drive (Australian-delivered) Civic Type R. Contact us before ordering for an RHD car
• Aftermarket engine mounts may require minor modification
• There is no fixed emptying interval - start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve leaking under heavy load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic Type R FK8 (2017-2021) - LHD only
• Honda Civic Type R FL5 (2023+) - LHD only
• Acura Integra Type S DE5 (2024+) - LHD only

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Honda Civic Type R FK8 (2017-2021) - LHD only
- Honda Civic Type R FL5 (2023+) - LHD only
- Acura Integra Type S DE5 (2024+) - LHD only

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
