Radium Engineering Radium Engineering CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+), product image, part 20-0750-FL

Radium Engineering CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+)

Name: Radium Engineering CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+)
Brand: Radium Engineering
SKU: 20-0750-FL
Price: 541.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0750-FL

$541.99 - $541.99

$541.99

$541.99 - $541.99

$541.99

Description

Radium CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+)

Application: 2020+ Toyota GR Supra (MK5) - B58 3.0L turbo only
Part Type: CCV Fluid Lock oil catch can kit
Part Number: 20-0750-FL

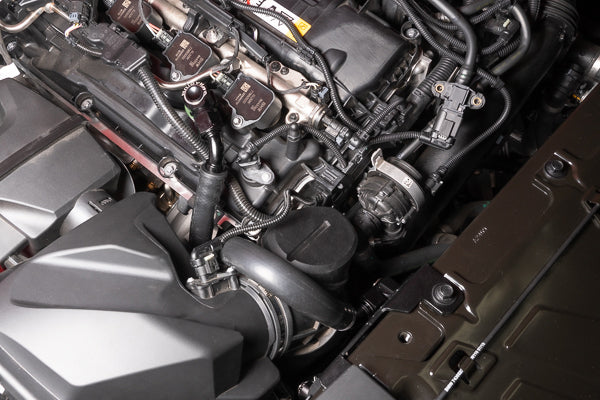

The Radium CCV catch can kit runs inline between the crankcase vent (CCV) port and the intake pipe of the B58-powered GR Supra. Under high load (WOT) this circuit sees high crankcase flow, carrying oil into the intake pipe and intercooler where it reduces intercooler efficiency - the catch can captures it first.

The can mounts to two holes on the front radiator support and was designed specifically to clear strut braces. Radium's patented Fluid Lock system (introduced with the 2022 redesign of its 7 fl oz catch can) prevents overfilling and traps collected fluids until the can is emptied, so an unserviced can can't release contaminants back into the intake.

Key Features

Direct Fitment: No drilling required
Large Ports: 10AN ORB inlet and outlet ports
Drain Port: 4AN ORB drain port
2-Step Baffling: Two-step oil separation baffling
Dipstick: O-ring sealed, integrated dipstick
Capacity: 207ml (7 fl oz)
Fluid Lock: Patented system prevents overfilling and traps collected fluid until emptied
Strut Brace Clearance: Designed to clear strut braces
Pressure Sealed: No extra inline check valve required

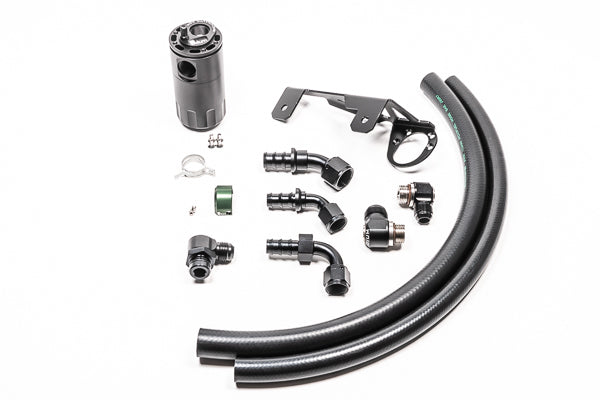

What's Included

Baffled oil catch can
MK5 GR Supra-specific mounting bracket
AN adapter fittings and hose ends
Stainless steel hardware
Radium hose

Optional Parts

Radium PCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+) (20-0749-FL) - recommended pairing - covers the PCV side
Radium Dual Catch Can Kit, Toyota Supra MK5 A90, Fluid Lock (20-0751-FL) - PCV and CCV kits combined
Radium Catch Can Petcock Drain Kit (20-0024) - easier draining where space allows

Important Notes

Fits the turbocharged 3.0L (B58) only
The CCV kit does not address blow-by from the PCV side - Radium recommends pairing it with the 20-0749-FL PCV kit
No fixed emptying interval - check the integrated dipstick from 3-4 weeks of driving; PCV cans typically collect more than CCV cans. Empty by unscrewing the lower reservoir, or fit the Petcock Drain Kit where space allows
Excessive oil collection can indicate an engine issue such as excessive blow-by, crankcase windage from overfilled oil, poor breather port placement or baffling, or a PCV valve leaking under load
Installation instructions are available in the Instructions tab

Vehicle Fitment

2020+ Toyota GR Supra (MK5) - B58 3.0L turbo only

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- 2020+ Toyota GR Supra (MK5) - B58 3.0L turbo only

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
