Radium Engineering Radium Engineering Coolant Expansion Tank Kit - Toyota GR Corolla GZEA14R 23+, product image, part 20-0767

Radium Engineering Coolant Expansion Tank Kit - Toyota GR Corolla GZEA14R 23+

Name: Radium Engineering Coolant Expansion Tank Kit - Toyota GR Corolla GZEA14R 23+
Brand: Radium Engineering
SKU: 20-0767
Price: 611.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0767

$611.99 - $611.99

$611.99

$611.99 - $611.99

$611.99

Description

Radium Coolant Expansion Tank Kit - Toyota GR Corolla GZEA14R 23+

Application: Toyota GR Corolla (2023+)
Part Type: Billet aluminium coolant expansion tank kit
Part Number: 20-0767

The Radium Coolant Tank Kit replaces the factory plastic coolant tank on the Toyota GR Corolla, which Radium notes tends to fail over time from heat cycling in track use. The two-piece CNC-machined, anodised aluminium tank improves longevity and heat transfer and is robust enough for racing.

It holds the same coolant volume as the factory tank in a smaller package, freeing up engine bay space and easing access. Two internal chambers are linked by crossover passages at the top and bottom, and an internal swirl feature helps de-aerate the system. The bracket bolts to existing threaded holes and adapter fittings connect to the factory hoses.

Key Features

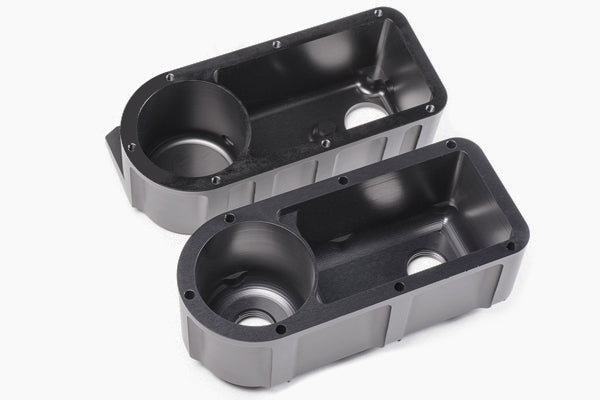

Billet Construction: Two-piece CNC-machined, anodised aluminium tank
OEM Capacity: Same coolant volume as the factory tank in a smaller package
De-Aeration: Internal swirl feature with top and bottom crossover passages between two chambers

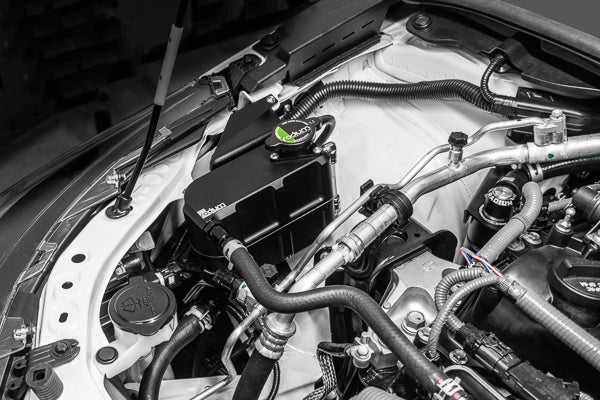

Bolt-In Fitment: Bracket mounts to existing threaded holes; adapter fittings connect to factory hoses
Race Proven: Design used in race and street applications worldwide

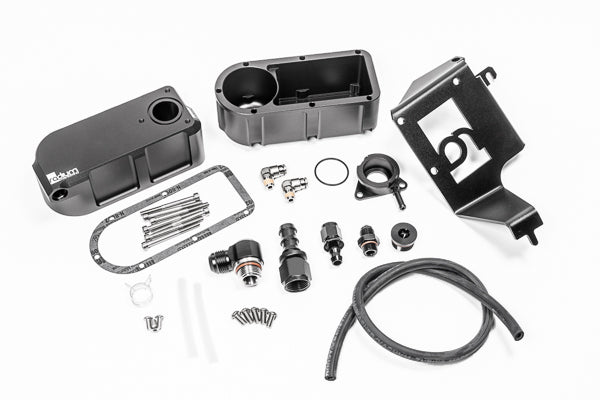

What's Included

2-piece billet aluminium tank
Aluminium mounting bracket
Billet adapter fittings
Overflow hose, 7/32"
Stainless steel hardware

Optional Parts

Radium Engineering Radiator Cap Type A Black (18-0076-A11 / A13 / A15) - pressure cap required - not included with the kit

Important Notes

Pressure cap is not included and must be purchased separately
The OEM Toyota cap is rated at 1.08 bar; Radium Type-A caps are available in several pressure ratings
Installation instructions are available in the Instructions tab

Vehicle Fitment

Toyota GR Corolla (2023+)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Toyota GR Corolla (2023+)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
