Radium DIY Universal PTFE Hose Kits
Application: Universal - fuel, oil, transmission fluid, power steering fluid, coolant and more
Part Type: DIY braided PTFE hose kit (hose + swivelling hose ends)
Part Number: 20-1206, 20-1208, 20-1210
PTFE is the gold standard for chemically inert hose material. Radium DIY PTFE hose kits use a carbon-lined PTFE core that is conductive and anti-static, dissipating the static charge that can build up in high-flow fuel systems, and PTFE has virtually zero permeation - it will not emit fuel vapours the way rubber hose can.

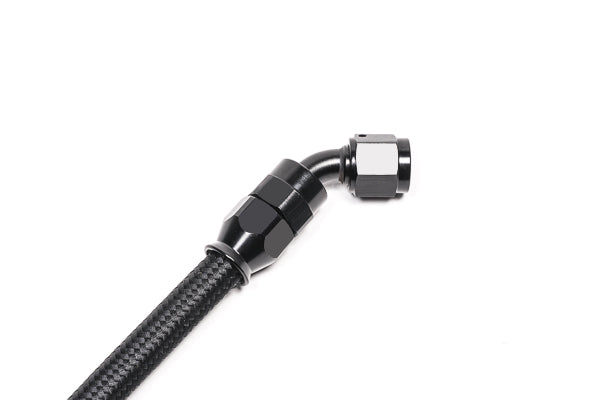

Each kit includes 4.5m (14.75ft) of black braided PTFE hose and six black anodised swivelling aluminium hose ends - two straight, two 45° and two 90° - to build your own custom lines for fuel, oil, transmission, power steering, coolant and more.
Key Features
-
Carbon-Lined Core: Conductive, anti-static core dissipates static charge
-
Pressure Rating: Pressure tested to 1200 psi in-house; generally rated to over 2500 psi
-
Temperature Rating: -70°C to 249°C (-94°F to 480°F)
-

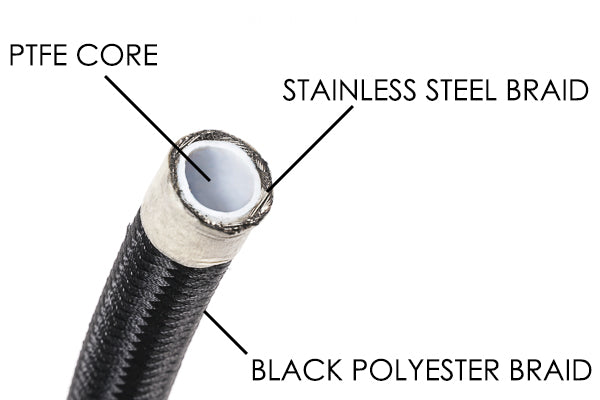

Construction: Seamless extruded PTFE core, stainless steel wire braid and PET braided outer jacket
-

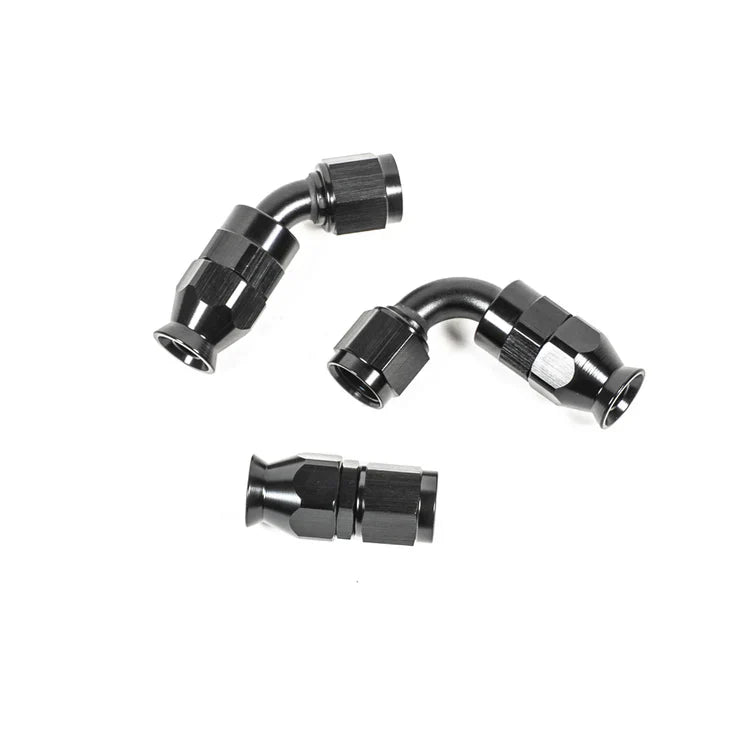

Hose Ends: Type-II black anodised aluminium swivelling hose ends
-
Low Permeation: PTFE has virtually zero permeation - no fuel vapour smell
Available Configurations
-
20-1206: 6AN - 8.4mm (0.33in) ID, 12.7mm (0.50in) OD
-
20-1208: 8AN - 10.7mm (0.42in) ID, 15.2mm (0.60in) OD
-
20-1210: 10AN - 13.0mm (0.51in) ID, 17.8mm (0.70in) OD

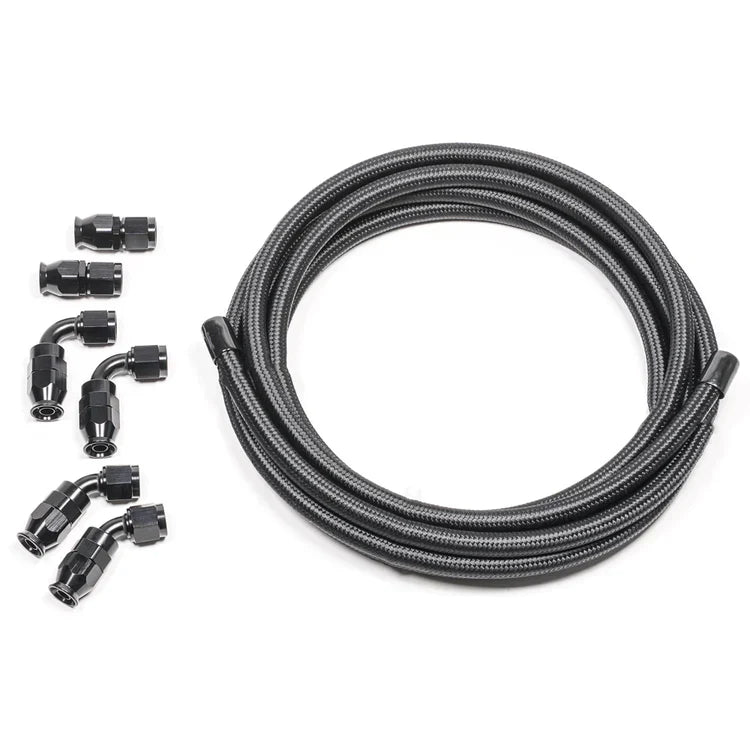

What's Included
- Black braided PTFE hose, 4.5m (14.75ft)
- Black PTFE hose end, straight (x2)
- Black PTFE hose end, 45° (x2)
- Black PTFE hose end, 90° (x2)
Important Notes
- Radium strongly recommends assembly by experienced installers, and that every assembly is pressure tested before use
- PTFE hose ends are specific to PTFE hose and cannot be used with rubber hose
- Radium does not offer other PTFE hose end sizes or angles - other PTFE-specific hose ends can be used
- Assembly tools are not included
Vehicle Fitment
- Universal - see Application
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Universal - see Application
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
