Radium Engineering Dual Fluid Lock Catch Can Kit, Ford Shelby GT500 (S197)

Radium Dual Fluid Lock Catch Can Kit, Ford Shelby GT500 (S197)

Application: Ford Shelby GT500 (S197)
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-0329-FL

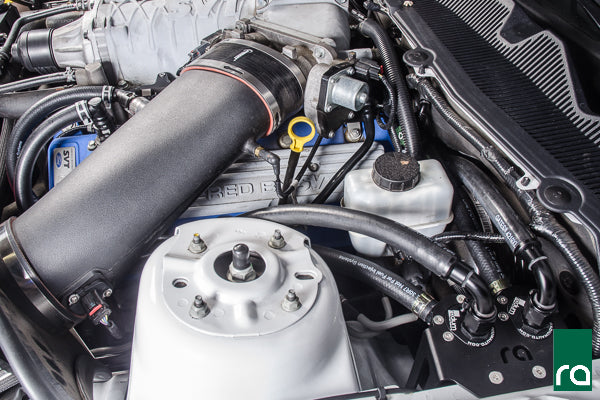

The Radium 20-0329-FL Dual Catch Can Kit covers both sides of the S197 Shelby GT500 crankcase ventilation system. The PCV catch can runs inline with the PCV valve and retains its factory function: the hose sees metered vacuum at idle, cruise and deceleration, which would normally draw crankcase vapour, unburnt fuel and oil sludge into the intake manifold after a high-load run. Because Radium catch cans are pressure sealed they suit supercharged applications like this, so a direct intake manifold connection is permitted.

The crankcase vent can runs inline with the crankcase breather port, which sees high flow out of the crankcase at wide-open throttle and would otherwise deposit oil and sludge in the air filter intake pipe. The catch can separates oil and water condensation from the crankcase gases before they are drawn into the intake, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. This effectively raises octane, can improve performance through cleaner inlet air and can lower hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin. Radium's Fluid Lock design, introduced in 2022, adds a patented mechanism that stops the reservoir overfilling and traps the collected fluid until the can is emptied, so contaminants can't spill into the intake if servicing is missed.

Key Features

• Complete Coverage: PCV and CCV catch cans in one kit
• Pressure Sealed: Suits supercharged engines - intake manifold connection permitted
• Fluid Lock: Patented Fluid Lock system stops overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required

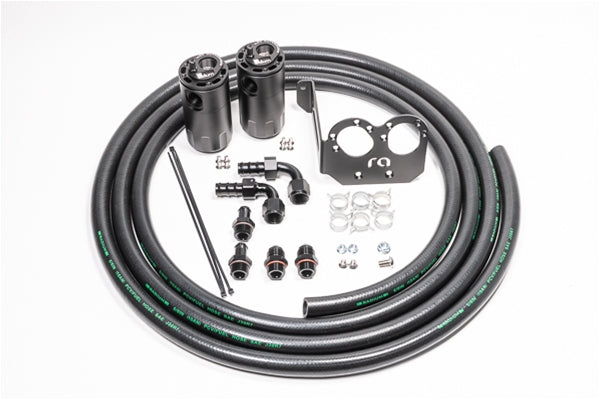

What's Included

• Anodised oil catch cans with integrated condenser and dipstick (x2)
• Anodised laser-cut S197 specific bracket
• Anodised aluminium 10AN adapter fittings and hose ends
• 5/8in PCV hose (extra for custom applications)
• Stainless steel mounting hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) - drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• There is no fixed emptying interval - start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve not closing under heavy load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Shelby GT500 S197 (Radium's instructions cover 2010-2014)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Ford Shelby GT500 S197 (Radium's instructions cover 2010-2014)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
