Radium Engineering Radium Engineering Dual Fluid Lock Universal Catch Can Kit, product image, part 20-0005-FL

Radium Engineering Dual Fluid Lock Universal Catch Can Kit

Name: Radium Engineering Dual Fluid Lock Universal Catch Can Kit
Brand: Radium Engineering
SKU: 20-0005-FL
Price: 576.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0005-FL

$576.99 - $576.99

$576.99

$576.99 - $576.99

$576.99

Description

Radium Dual Fluid Lock Universal Catch Can Kit

Application: Universal
Part Type: Dual Fluid Lock oil catch can kit with bracket
Part Number: 20-0005-FL

Radium's universal Fluid Lock catch cans help prevent sludge build-up in the intake, intercooler and throttle body by separating oil from crankcase gases before they reach the induction system. Radium's Fluid Lock® design (introduced in 2022) uses a patented internal mechanism that stops the reservoir from overfilling and holds collected fluid until the can is emptied, so oil cannot spill back into the induction system.

Each can is machined from solid 6061 aluminium with O-ring sealed halves and ports, so it is suitable for pressurised (forced induction) systems. The main inlet and outlet are 10AN ORB, and an integrated M8x1.25mm dipstick makes it easy to check the oil level. The dual kit pairs two cans on one universal bracket for engines that need separate PCV and crankcase vent cans.

Key Features

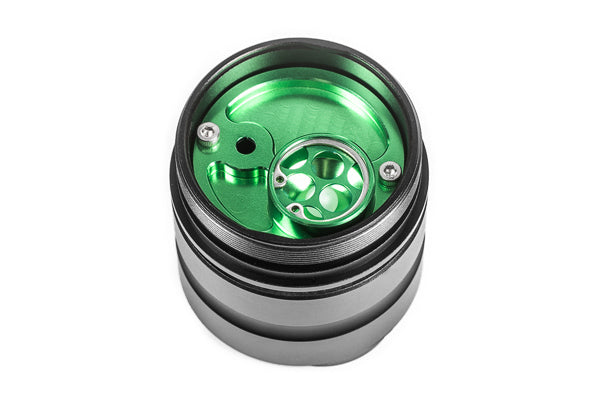

Fluid Lock®: Patented mechanism prevents overfilling and holds collected fluid until emptied
Boost Rated: O-ring sealed halves and ports suit forced induction systems
Billet Construction: Machined from solid 6061 aluminium
10AN ORB Ports: Use barb or AN fittings to suit your plumbing

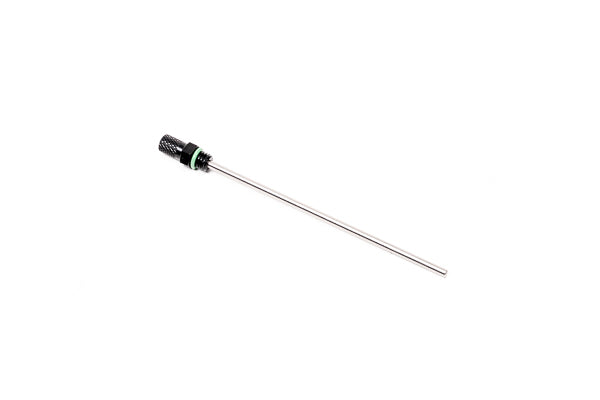

Integrated Dipstick: M8x1.25mm dipstick for quick level checks
Drain Port: 4AN ORB bottom port accepts the optional remote petcock drain kit

What's Included

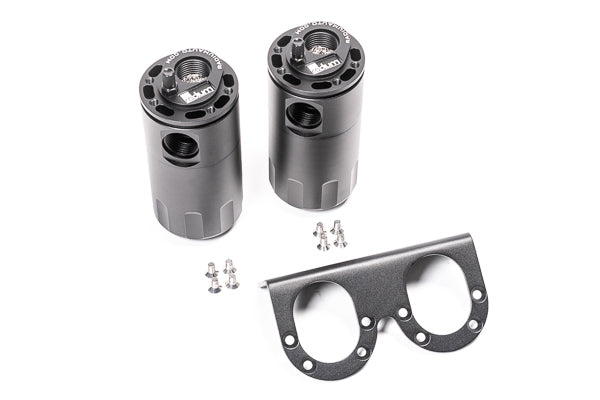

2x Fluid Lock catch cans
1x Dual universal catch can bracket

Optional Parts

Radium Catch Can Petcock Drain Kit (20-0024) - remote drain that installs in the 4AN ORB bottom port
Radium 10AN ORB Fitting to Air Filter (20-0050) - one of the compatible 10AN ORB adapter fittings

Important Notes

Cans are supplied without fittings - 10AN ORB adapter fittings and hose are sold separately (barb fittings with spring clamps, or AN fittings with push-lock hose ends, can be used)
Some engines need more than one catch can depending on the PCV system design
Do not use with aftermarket crankcase vacuum pumps
Drain periodically and check the level with the dipstick; excessive oil collection can indicate engine damage
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
