Radium Engineering Fluid Lock Catch Can Kit, PCV - Mazda RX-7 FD3S (92-02) - 20-0977-FL
Application: 1992-2002 Mazda RX-7 FD3S (RHD and LHD)
Part Type: Fluid Lock PCV catch can kit
Part Number: 20-0977-FL
The catch can draws oil and water condensation out of crankcase gases that would otherwise be drawn into the intake manifold, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. Cleaner inlet air effectively raises octane and improves performance, and the closed system also stops oil vapour from entering the cabin.

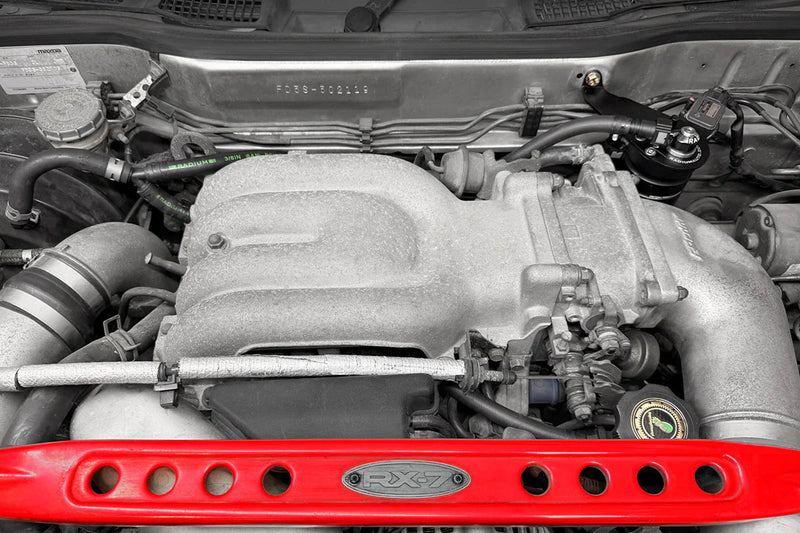

The kit mounts to the firewall and plumbs into the brake booster intake manifold port, making it compatible with all model years in both RHD and LHD, while maintaining the OEM closed-system PCV operation. Because Radium catch cans are pressure sealed, they are safe for boosted applications without a check valve. The patented Fluid Lock design prevents the reservoir from overfilling and traps collected fluid until it is emptied.
Key Features
-
Direct Fitment: Firewall mount with no drilling required
-

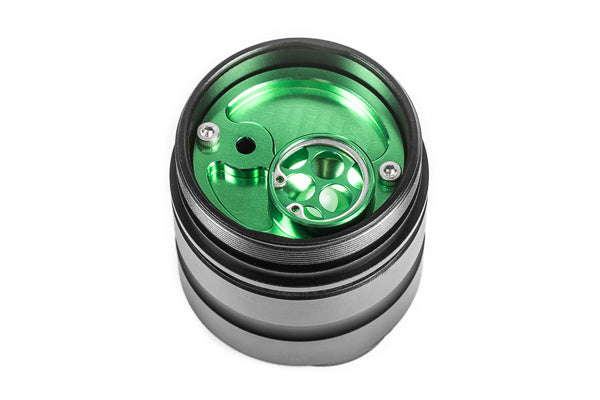

Fluid Lock: Patented system stops collected fluid from escaping into the intake
-
10AN ORB Ports: Large 10AN ORB inlet and outlet ports
-
Two-Step Baffling: 2-step oil separation baffling
-
Dipstick: O-ring sealed dipstick to check the oil level
-
Drain Port: Plugged 4AN ORB drain port
-
Boost Safe: Pressure sealed - no check valve required on the intake manifold

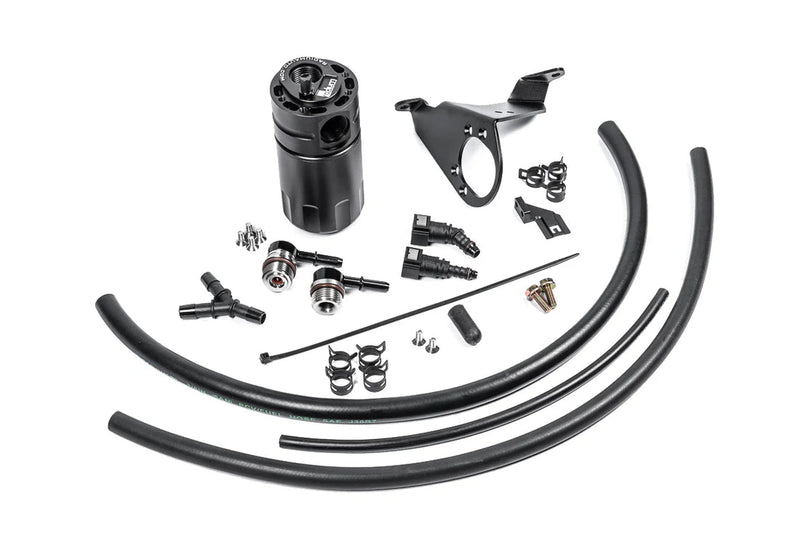

What's Included
- Fluid Lock catch can
- Anodised aluminium mount bracket
- Anodised aluminium MAP sensor mount
- Low profile swivelling banjo PCV valve fitting
- Low profile swivelling banjo SAE quick connect fitting
- SAE quick connector hose ends
- 5/16in PCV hose
- 3/8in PCV hose
- 5/32in vacuum hose
- Spring clamps
- Stainless steel hardware
Important Notes
- Collection rate varies - check the level with the dipstick from 3-4 weeks of driving and repeat as needed
- Empty by unscrewing the lower reservoir, or fit the optional Petcock Drain Kit (sold separately) where space permits
- Excessive oil collection may indicate an engine issue such as blow-by from engine damage, windage from an over-full oil level, poor breather port placement/baffling, or a PCV valve not closing under heavy load
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- 1992-2002 Mazda RX-7 FD3S - all model years, RHD and LHD
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- 1992-2002 Mazda RX-7 FD3S - all model years, RHD and LHD
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
