Radium Engineering Fuel Hanger Plumbing Kit, 2022+ FL5 Honda Civic Type R
Application: 2022+ Honda Civic Type R (FL5) with Radium fuel pump hanger
Part Type: Fuel hanger plumbing kit
Part Number: 20-1095-03, 20-1095-05
Radium Engineering FL5 fuel hanger plumbing kits complete the installation of the Radium 2022+ Civic Type R fuel pump hanger, supplying the regulator, filter, fuel lines, fittings and mounting hardware between the in-tank hanger and the engine bay.
An 8AN PTFE line runs from the hanger outlet behind the fuel tank to a high-flow filter mounted on the left-hand side of the tank with a two-piece billet mount, then on towards the front of the vehicle; billet aluminium retainers replace the factory plastic fuel/brake line retainers. In the engine bay, 6AN EFI hose and SAE quick connects convert the OEM feed line into a return, and at the rear a 6AN PTFE line and quick connect join the OEM line to the hanger return port. The firewall-mounted dual fuel pressure regulator (DFPR) uses OEM threaded holes and provides two independent outputs.
Key Features
-

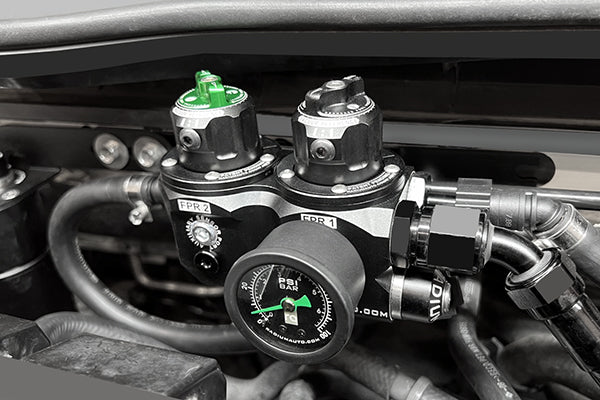

Dual Fuel Pressure Regulator: Black knob and 0-100psi gauge set the low-pressure supply for the OEM direct injection system
-
Port Injection Ready: Independent second output (green knob) for a future port injection system - plugged with 8AN ORB plug
-

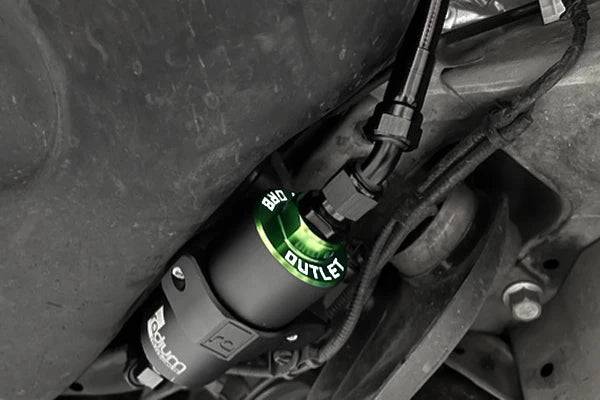

High-Flow Filter: Mounted on the LH side of the tank with a two-piece billet mount
-
8AN PTFE Feed: Large feed line from hanger to engine bay
-
OEM Line Reuse: SAE quick connects convert the OEM feed line into the return
-
Billet Line Retainers: Replace the factory plastic fuel/brake line retainers
Available Configurations
- 20-1095-03: 10 micron stainless steel filter element
- 20-1095-05: 6 micron microglass filter element

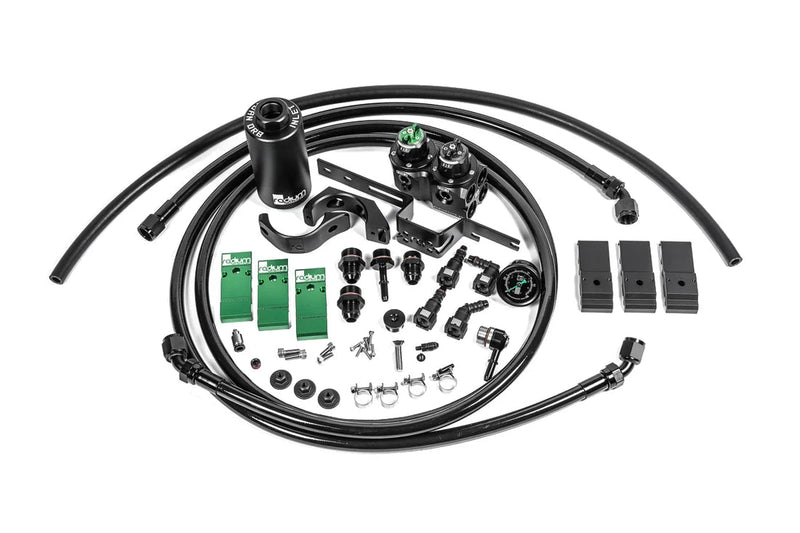

What's Included
- DFPR fuel pressure regulator
- 0-100psi fuel pressure gauge
- Fuel filter (-03 10 micron stainless or -05 6 micron microglass)
- 8AN fuel filter adapter fittings
- Fuel/brake line retainers (x3)
- 8AN PTFE fuel feed hoses
- SAE quick connect adapters
- Stainless steel hardware
- 5/32in vacuum tubing
- Miscellaneous adapter fittings
Optional Parts
-
Radium Engineering Fuel Pump Hanger, 2022+ FL5 Honda Civic Type R (20-1090 / 20-1092) - the Radium hanger this kit is designed for
Important Notes
- Designed for use with the Radium FL5 fuel pump hanger (sold separately)
- Adding port injection later requires an 8AN ORB DFPR adapter and fuel line for the second regulator output
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- 2022+ Honda Civic Type R (FL5)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- 2022+ Honda Civic Type R (FL5)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
