Radium Engineering Port Injection Plumbing Kit - Lamborghini Gallardo LP 550/560/570 (2008-2013)

SKU 20-0967-03
Original price $1,149.00 - Original price $1,199.00
Original price
$1,199.00
$1,149.00 - $1,199.00
Current price $1,199.00
Fast & Free Shipping On orders over $150 (excl some bulky items)
Fitment Guarantee When using our parts finder
Local Support Australian based support 24/7

Radium Engineering Port Injection Plumbing Kit - Lamborghini Gallardo LP 550/560/570 (2008-2013)

Application: 2008-2013 Lamborghini Gallardo LP550-2, LP560-4 and LP570-4 with Radium 20-0865 Port Injection Kit
Part Type: Port injection plumbing kit
Part Number: 20-0967-03, 20-0967-05

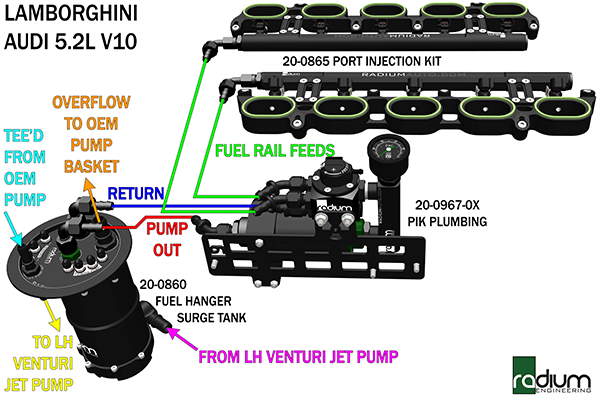

The Radium Engineering 20-0967 plumbing kit permits an independent port injection fuel system on the 2008-2013 Lamborghini Gallardo LP. It works with the Radium 20-0865 Port Injection Kit, which adds port injectors to supply extra fuel for highly modified 5.2L V10 engines without replacing the OEM direct injection system.

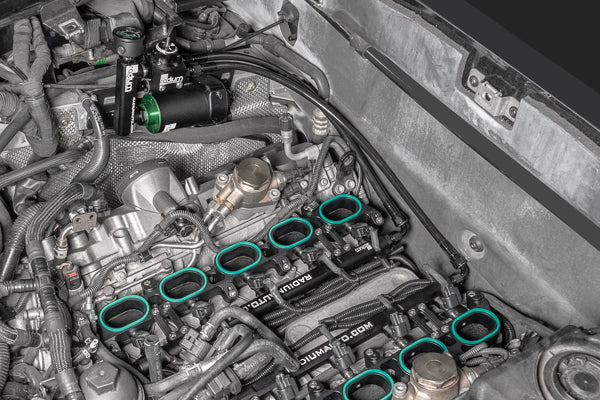

All components mount to the left-hand side of the engine using OEM threaded bosses on the frame rail, so no drilling or permanent modification is required. Radium recommends its Fuel Hanger Surge Tank (FHST) to feed the system.


Key Features

  • Independent Port Injection Supply: Feeds the 20-0865 port injection rails separately from the OEM DI system
  • 1:1 Regulator: RA-Series 1:1 fuel pressure regulator with 0-100psi gauge
  • PTFE Hoses: Crimped 6AN PTFE hoses
  • Filter Choice: Stainless (-03) or microglass (-05) fuel filter
  • Bolt-On Mounting: Black mounting bracket uses OEM threaded bosses on the LH frame rail

Available Configurations

  • 20-0967-03: Stainless steel fuel filter
  • 20-0967-05: Microglass fuel filter

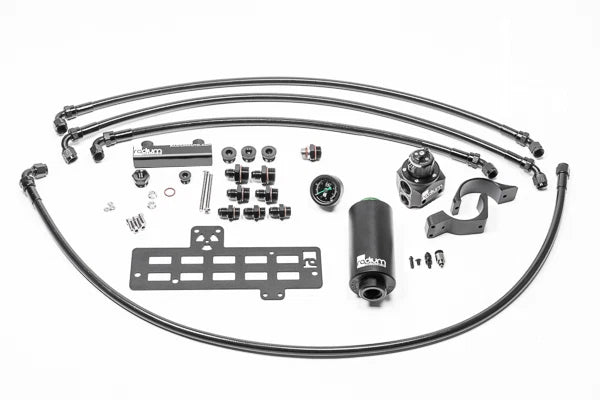

What's Included

  • Fuel filter (-03 stainless or -05 microglass)
  • RA-Series 1:1 fuel pressure regulator
  • Fuel pressure gauge, 0-100psi
  • Crimped 6AN PTFE hoses
  • Black adapter fittings
  • Black mounting bracket
  • Stainless steel hardware

Optional Parts

  • Radium Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13 (20-0865) - the port injection kit this plumbing feeds
  • Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan (20-0860) - recommended by Radium to feed the system

Important Notes

  • Not compatible with the Audi R8 or Lamborghini Huracán
  • The 20-0865 Port Injection Kit, fuel injectors, wiring and injector controller are not included
  • Installation instructions are available in the Instructions tab

Vehicle Fitment

  • 2008-2013 Lamborghini Gallardo LP550-2 (all trims)
  • 2008-2013 Lamborghini Gallardo LP560-4 (all trims)
  • 2008-2013 Lamborghini Gallardo LP570-4 (all trims)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- 2008-2013 Lamborghini Gallardo LP550-2 (all trims)
- 2008-2013 Lamborghini Gallardo LP560-4 (all trims)
- 2008-2013 Lamborghini Gallardo LP570-4 (all trims)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
