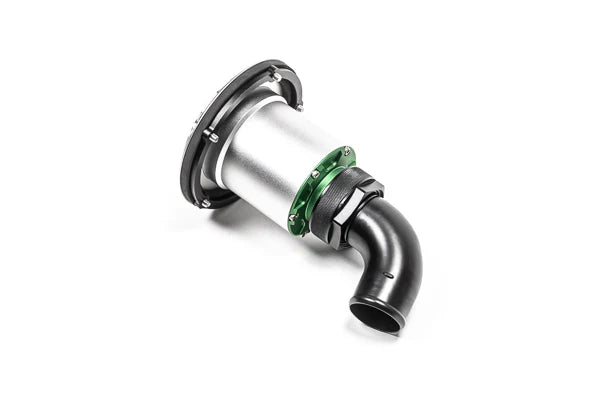

Radium Engineering Radium Engineering Remote Mount Vented Female Dry Break 1.5" Elbow, product image, part 20-1104-V

Radium Engineering Remote Mount Vented Female Dry Break 1.5" Elbow

Name: Radium Engineering Remote Mount Vented Female Dry Break 1.5" Elbow
Brand: Radium Engineering
SKU: 20-1104-V
Price: 593.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-1104-V

$593.99 - $593.99

$593.99

$593.99 - $593.99

$593.99

Description

Radium Engineering Remote Mount Vented Female Dry Break 1.5" Elbow

Application: Universal - remote-mount fuel filler for fuel cells and surge tanks
Part Type: Remote mount fuel filler - vented female dry break, 1.5in 24AN elbow
Part Number: 20-1104-V

A remote mount fuel filler sits away from the fuel cell or tank - usually on a body panel - and connects to the fill neck via filler hose. The Radium Engineering 20-1104-V uses a vented female dry break receptacle for quick-fill refuelling with a 1.5in dry break dump can, and a 75° 24AN elbow outlet for 1.5in filler hose.

The dry break mates with Radium 20-0996 or 20-0496 1.5in male dry break probes, and the elbow outlet gives a neat hose path where space behind the body panel is tight.

Key Features

Dry Break Quick Fill: Vented female dry break receptacle for use with 1.5in dry break dump cans
24AN Elbow Outlet: 1.5in, 75° 24AN elbow for 1.5in filler hose
Flush Remote Mount: 120.7mm (4.75in) flange with five M5 bolts on a 108mm (4.25in) PCD; requires a 77mm (3.03in) mounting hole
Interchangeable Caps: All Radium remote filler cap styles share the same threads and are interchangeable
Swappable Outlet: The outlet adapter can be changed by removing six screws (adapters sold separately)
Fuel Compatibility: Leaded/unleaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85

What's Included

Dry break receptacle cap
Flanged fill neck
Ozone/flame-resistant gasket (FKM compatible)
Anodised aluminium nut ring
Stainless steel M5 bolts
24AN B-nut
24AN elbow
1-7/8in aluminium wrench

Optional Parts

Radium Dry Break, 1.5", Male, PRV (20-0996) - mating 1.5in male dry break with pressure relief valve
Radium Quick Fill Dump Can - 1.5" Dry Break Filler - Male (20-0496) - mating 1.5in male dry break
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) - tank-side fill neck for FCST-X surge tanks
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) - straight tank-side fill neck for FCST-X surge tanks
Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) - black reinforced 1.5in filler hose
Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) - clear unreinforced 1.5in filler hose

Important Notes

Tank-side components (fill neck and filler hose) are not included
Radium 20-1027 and 20-1047 fill necks suit FCST-X surge tanks only; older 6-bolt FCST units use the 20-0527 fill neck
Black 20-0597 filler hose is reinforced; clear 20-0602 hose is unreinforced, kinks easily when bent and can cloud with some fuels - inspect and replace as needed
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
