Radium Engineering Radium Engineering Universal Coolant Tank, 1240mL - 20-2270, product image, part 20-2270

Radium Engineering Universal Coolant Tank, 1240mL - 20-2270

Name: Radium Engineering Universal Coolant Tank, 1240mL - 20-2270
Brand: Radium Engineering
SKU: 20-2270
Price: 539.0 AUD
Availability: InStock

by Radium Engineering

SKU 20-2270

$539.00 - $539.00

$539.00

$539.00 - $539.00

$539.00

Description

Radium Engineering Universal Coolant Tank, 1240mL - 20-2270

Application: Universal - pressurised coolant systems
Part Type: Coolant expansion tank, 1240mL
Part Number: 20-2270

Coolant expansion tanks are necessary for proper air bleeding in applications with a rear-mounted radiator or a low-mounted radiator such as a V-Mount, but they are also valuable in a conventional radiator setup. A traditional cooling system needs air in the top of the radiator at low temperatures to allow for heat expansion; an expansion tank lets the radiator stay 100% filled with coolant in all conditions.

The Radium Engineering Universal Coolant Tank holds 1240mL and is a multi-piece design CNC machined from billet 6061 aluminium. It has two internal chambers that are not isolated from each other, with cross-over passages at the top and bottom. A pressure cap is not included - the billet receiver accepts Type-A "radiator" caps.

Key Features

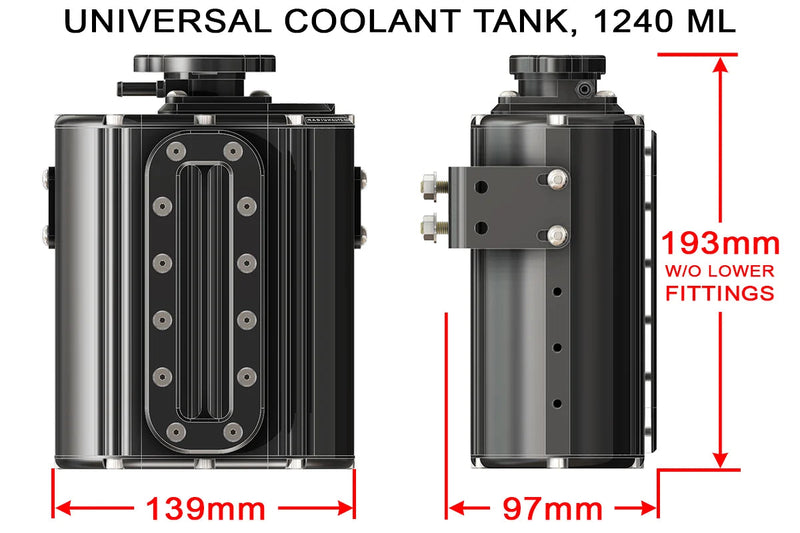

1240mL Capacity: Multi-piece CNC billet 6061 aluminium construction
Type-A Cap Receiver: Accepts Type-A radiator pressure caps (sold separately)
Twin Chambers: Two connected internal chambers with cross-over passages top and bottom

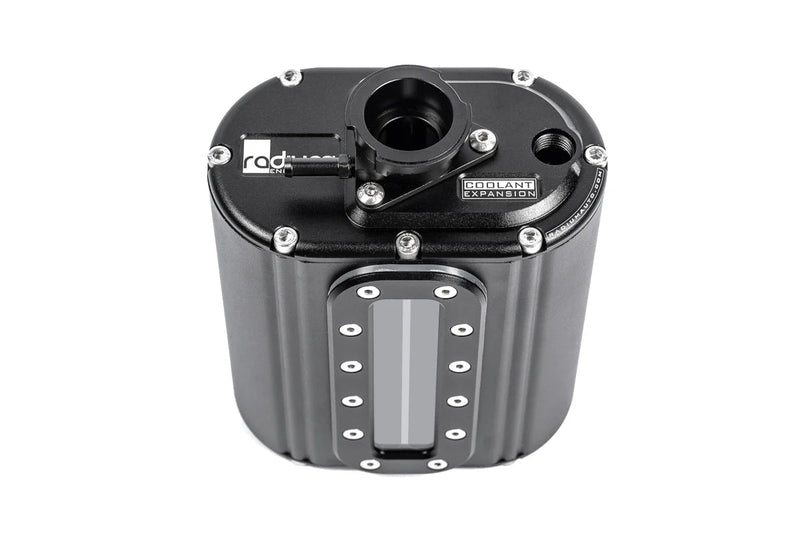

Level Window: 118mm (4.6in) tall water level window

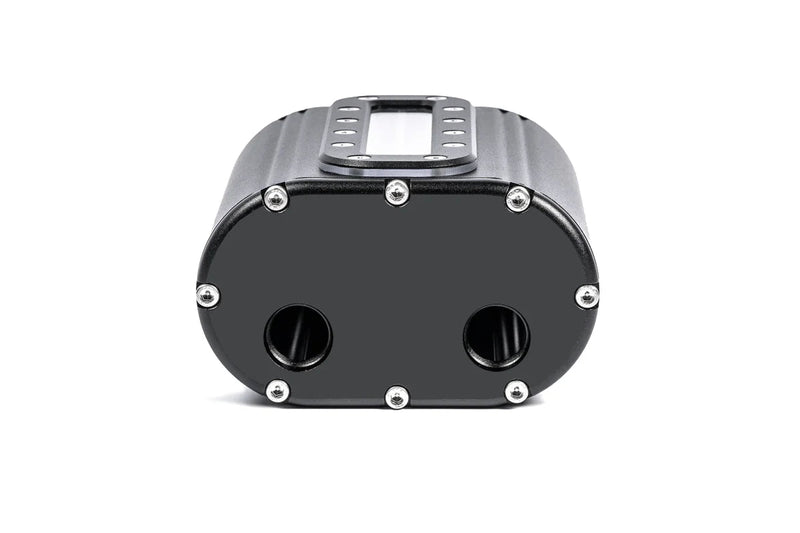

Flexible Ports: 6AN ORB top inlet, two 10AN ORB bottom ports and a 1/4in barbed pressure bleed
Universal: Can be custom installed into virtually any cooling system

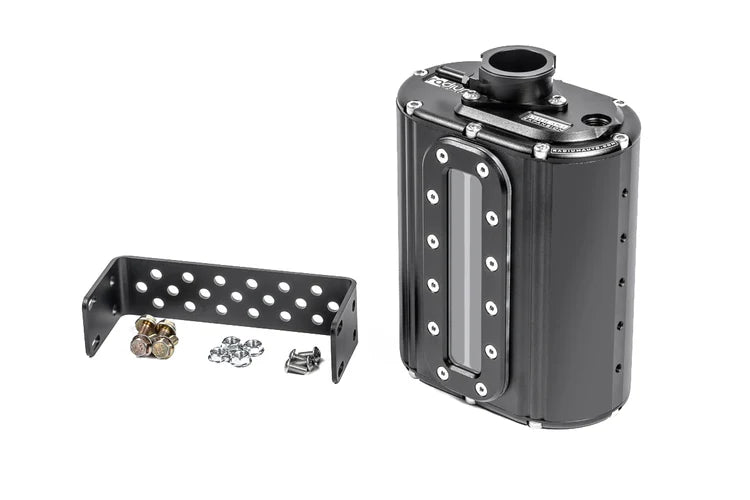

What's Included

Billet aluminium coolant tank

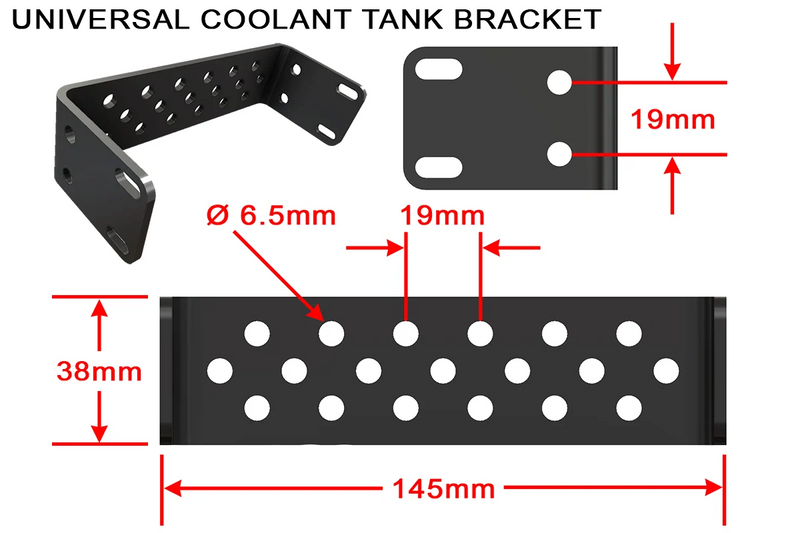

Anodised aluminium mounting bracket
Water level window, 118mm (4.6in) tall
Type-A pressure cap receiver
Aluminium pressure bleed, 1/4in barb
Stainless steel hardware

Optional Parts

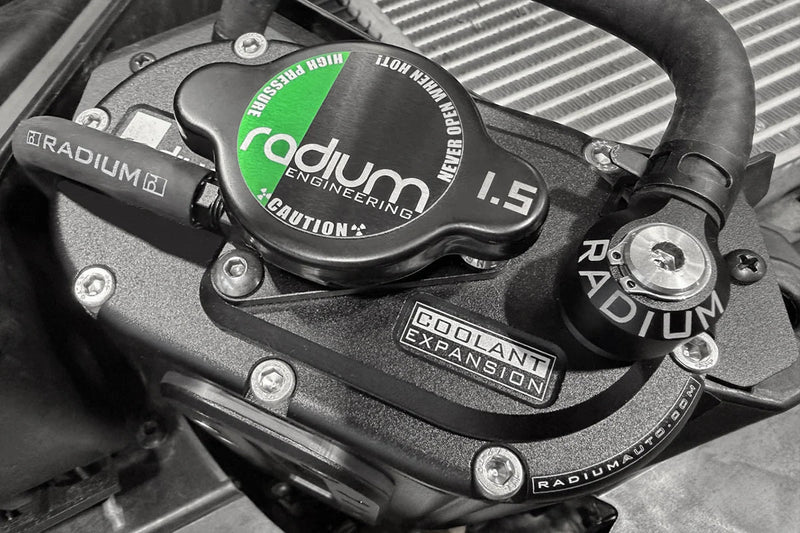

Radium Engineering Radiator Cap Type A Black (18-0076-A11 / A13 / A15) - 1.1, 1.3 or 1.5 bar pressure cap - a higher pressure cap raises the coolant boiling point

Important Notes

This is not a coolant overflow tank - it is designed to be part of the pressurised coolant system
Pressure cap not included
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
