Radium Engineering Extension Kit for FCST-X

SKU 20-1989
Original price $349.99 - Original price $349.99
Original price
$349.99
$349.99 - $349.99
Current price $349.99
Fast & Free Shipping On orders over $150 (excl some bulky items)
Fitment Guarantee When using our parts finder
Local Support Australian based support 24/7

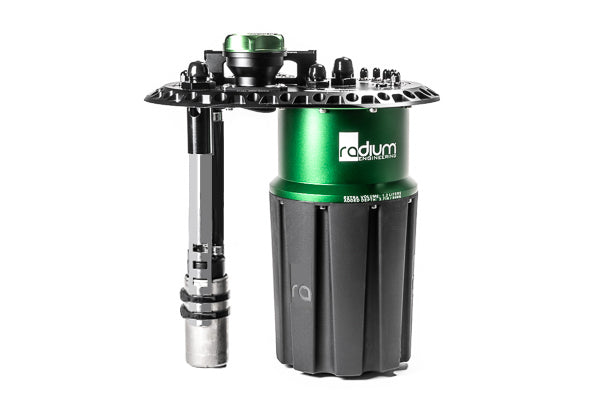

Radium Extension Kit for FCST-X

Application: Radium FCST-X 20-1990, 20-1991 and 20-1992 series
Part Type: Surge tank extension kit for FCST-X
Part Number: 20-1989

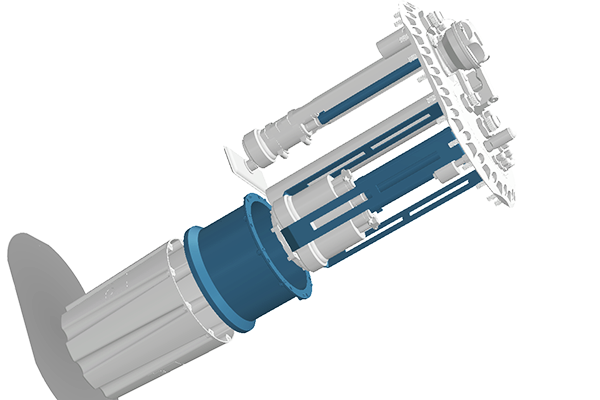

The Radium Extension Kit adds 1.2 L of volume to the surge tank of the FCST-X and lowers the one-way fill valves for better fuel starvation protection at low fuel levels. An anodised aluminium canister mounts between the top plate and the existing surge tank canister, and a longer stainless steel pump bracket replaces the original.

The kit makes the module 94mm (3.7in) taller, so it is intended for deeper fuel cells such as the Radium R14A and R22A.


Key Features

  • Added Volume: 1.2 L extra surge tank capacity
  • Lower Fill Valves: Improved starvation protection at low fuel levels
  • Bolt-in Canister: Anodised aluminium canister fits between the top plate and existing canister
  • Longer Pump Bracket: Stainless steel bracket replaces the original

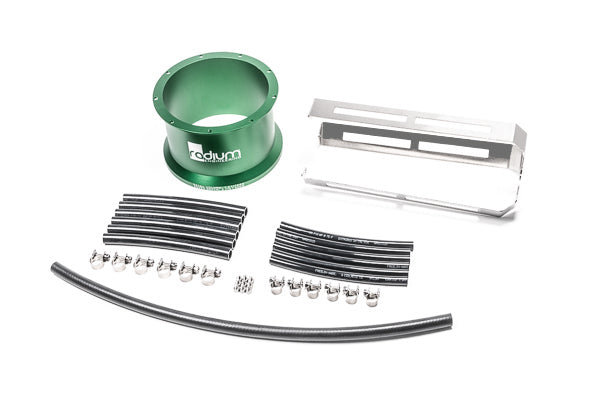

What's Included

  • Anodised aluminium canister
  • Stainless steel pump bracket
  • Large ID fuel pump tubing
  • Small ID fuel pump tubing
  • Submersible fuel hose
  • Stainless steel hardware

Optional Parts

  • Radium FCST-X, Fuel Cell Surge Tank (20-1990-00) - The FCST-X surge tank this kit extends
  • Radium 14-0691 6AN ORB to 10mm Barb Fitting - Required for 20-1991-00, one per surge pump

Important Notes

  • Requires a fuel cell with a minimum depth of 274mm (10.8in) - compatible with Radium R14A (20-0614) and R22A (20-0622) cells
  • Not compatible with Radium 6, 10 or 10.5 gal RA-Series cells, or any Radium FCST not listed in the fitment
  • Radium does not pre-assemble the kit on FCST-X units - it is installed by the end user
  • 20-1991-00 (Bosch BR540 / DeatschWerks DW400) requires 14-0691 fittings to replace the pump outlet adapters - one per surge pump
  • FCST-X sold separately

Vehicle Fitment

  • Radium FCST-X 20-1990-00, 20-1990-01, 20-1990-02, 20-1990-03
  • Radium FCST-X 20-1991-00 (requires 14-0691 fittings)
  • Radium FCST-X 20-1992-00, 20-1992-01, 20-1992-02, 20-1992-03

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Radium FCST-X 20-1990-00, 20-1990-01, 20-1990-02, 20-1990-03
- Radium FCST-X 20-1991-00 (requires 14-0691 fittings)
- Radium FCST-X 20-1992-00, 20-1992-01, 20-1992-02, 20-1992-03

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
