Radium Engineering Fluid Lock Catch Can Kit - GM LS V8 Engines

Name: Radium Engineering Fluid Lock Catch Can Kit - GM LS V8 Engines
Brand: Radium Engineering
SKU: 20-0260-FL
Price: 366.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0260-FL

$366.99 - $366.99

$366.99

$366.99 - $366.99

$366.99

Description

Radium Fluid Lock Catch Can Kit - GM LS V8 Engines

Application: GM LS1 and LS6 (Gen III) V8
Part Type: Fluid Lock PCV catch can kit
Part Number: 20-0260-FL

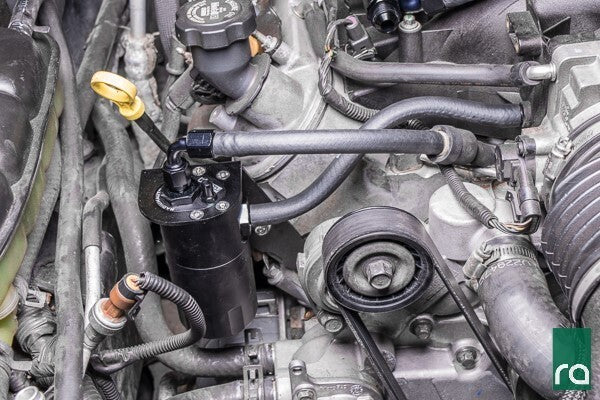

The Radium Fluid Lock Catch Can Kit for Gen III GM LS1 and LS6 engines draws oil and water condensation out of the crankcase gases before they reach the intake manifold. It plumbs inline with the OEM PCV valve and mounts on an anodised aluminium bracket at the front right-hand side of the cylinder head.

Radium's patented Fluid Lock system stops the reservoir overfilling and traps the collected fluids, while 2-step baffling separates the oil and an O-ring sealed dipstick makes checking the level easy. The kit is direct fit with no drilling and works with wet and dry sump engines.

Key Features

Fluid Lock System: Patented design prevents overfilling and traps collected fluid
2-Step Baffling: Effective oil separation
Large Ports: 10AN ORB inlet and outlet, 4AN ORB drain
O-Ring Sealed Dipstick: Easy level checks
Direct Fit: Front RH cylinder head bracket, no drilling
Wet or Dry Sump: Suits both configurations

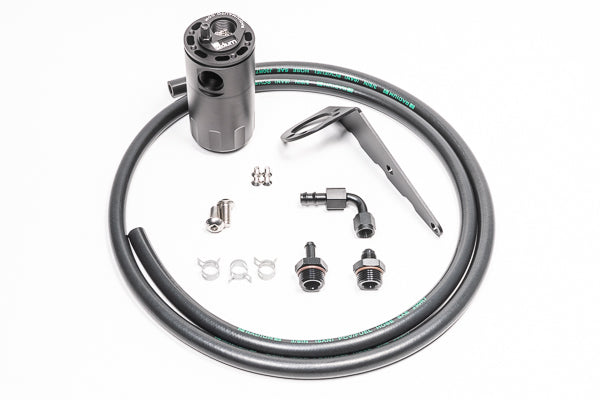

What's Included

Baffled oil catch can with integrated condenser and dipstick
Anodised aluminium mounting bracket
Anodised aluminium 6AN hose ends
Anodised aluminium 6AN fittings
Stainless steel mounting hardware
3/8in PCV rubber hose
Spring clamps

Optional Parts

Radium Catch Can Kit, PCV, GM LS2/LS3/LS7 Engine, Fluid Lock (20-0785-FL) - kit for Gen IV LS2/LS3/LS7 engines

Important Notes

This kit is NOT compatible with LS2, LS3, LS4, LS7, LS9 or LSA engines - Gen IV LS2/LS3/LS7 use 20-0785-FL
Confirm clearance in the catch can mounting area before ordering - extra belt-driven accessories such as an aftermarket supercharger may prevent fitment
Check the dipstick from 3-4 weeks of driving and empty as needed; excessive oil can indicate engine blow-by, overfilled oil, poor breather baffling or a PCV valve not closing under load
Installation instructions are available in the Instructions tab

Vehicle Fitment

GM LS1 (Gen III) V8
GM LS6 (Gen III) V8

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- GM LS1 (Gen III) V8
- GM LS6 (Gen III) V8

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
