Radium Fluid Lock Catch Can Kit PCV Side - Subaru BRZ/Toyota 86
Application: 2012-2021 Toyota 86, 2012-2020 Subaru BRZ, 2012-2016 Scion FR-S
Part Type: PCV-side oil catch can kit (Fluid Lock)
Part Number: 20-0901-FL
The Radium PCV catch can kit separates oil and water condensation from crankcase gases before they reach the intake, helping prevent build-up in the intake, intercooler, throttle body and intake manifold. Cleaner intake air supports performance and lowers hydrocarbon emissions, and the closed system keeps oil vapours out of the cabin.

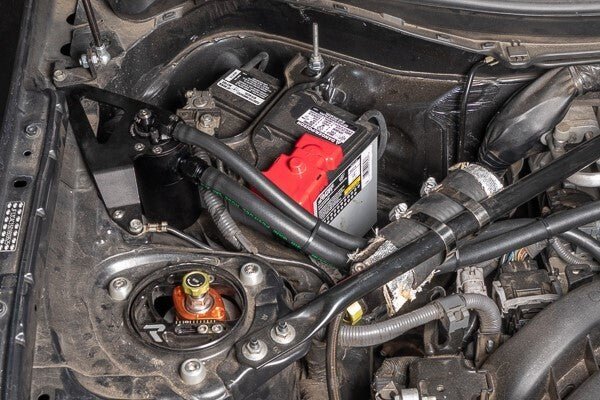

This kit mounts on the right-hand side of the engine bay and runs inline with the 3/8" PCV valve hose. Connecting to the intake manifold is permitted, so it also suits boosted applications. Radium redesigned its 7 fl oz catch can in 2022 with a patented Fluid Lock mechanism that prevents overfilling and holds collected fluid until the can is emptied. Everything needed for installation is included.
Key Features
-
Direct Fit: Bolts in using factory mounting points - no drilling required
-
Ports: 10AN ORB inlet and outlet, 4AN ORB drain
-
Oil Separation: Two-step oil separation baffling
-
Dipstick: O-ring sealed integrated dipstick
-
Capacity: 207ml (7 fl oz)
-
Fluid Lock: Patented mechanism prevents overfilling and holds collected fluid until the can is emptied
-
Closed System: Keeps oil vapours out of the cabin

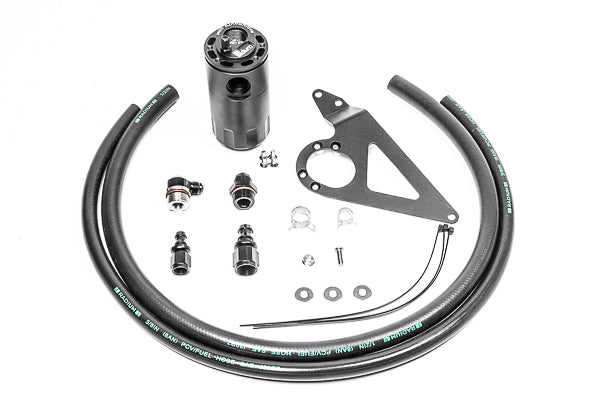

What's Included
- Fluid Lock catch can
- Anodised aluminium mount bracket
- 3/8" PCV hose
- 1/2" PCV hose
- 10AN ORB to 8AN male fitting
- PushLok hose ends (x2)
- 10AN ORB to 6AN male swivel fitting
- Installation hardware
Optional Parts
-
Radium CCV Fluid Lock Catch Can Kit, Subaru BRZ / Toyota 86 / GR86 (2012+) (20-0902-FL) - add the CCV-side kit for full PCV + CCV protection
-
Radium Catch Can Petcock Drain Kit (20-0024) - makes emptying the catch can easier where there is space underneath
Important Notes
- There is no fixed emptying interval - start checking the dipstick at 3-4 weeks and adjust from there; PCV cans typically collect more than CCV cans
- Empty by removing the lower reservoir, or fit the optional Petcock Drain Kit if there is space underneath
- Excessive oil collection can point to an engine problem, such as blow-by from engine damage, crankcase windage from overfilled oil, poor breather port placement or baffling, or a PCV valve leaking under heavy load
- Suits both right-hand drive and left-hand drive vehicles
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Toyota 86 (2012-2021)
- Subaru BRZ (2012-2020)
- Scion FR-S (2012-2016)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Toyota 86 (2012-2021)
- Subaru BRZ (2012-2020)
- Scion FR-S (2012-2016)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
