Radium Engineering Fluid Lock Crankcase Catch Can Kit - Mitsubishi Evo 7-9

Name: Radium Engineering Fluid Lock Crankcase Catch Can Kit - Mitsubishi Evo 7-9
Brand: Radium Engineering
SKU: 20-0117-FL
Price: 366.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0117-FL

$366.99 - $366.99

$366.99

$366.99 - $366.99

$366.99

Description

Radium Fluid Lock Crankcase Catch Can Kit - Mitsubishi Evo 7-9

Application: Mitsubishi Lancer Evolution VIII / IX
Part Type: Crankcase vent (CCV) Fluid Lock catch can kit (LH)
Part Number: 20-0117-FL

Radium Evo catch can kits separate oil and water condensation from crankcase gases before they reach the intake, keeping build-up out of the intake, intercooler piping, throttle body and intake manifold. As a closed system they also keep oil vapour out of the cabin. Radium's Fluid Lock® design (introduced in 2022) uses a patented internal mechanism that stops the reservoir from overfilling and holds collected fluid until the can is emptied, so oil cannot spill back into the induction system.

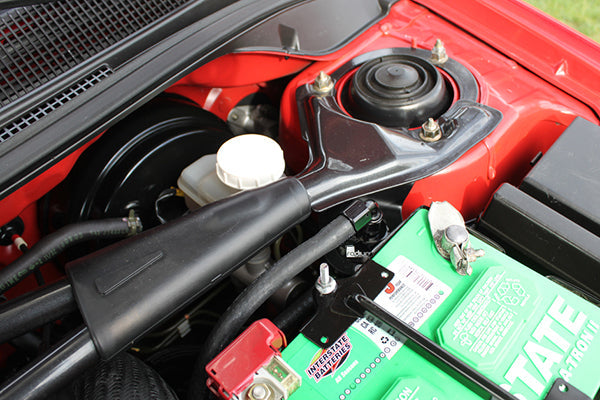

The crankcase kit mounts beside the left-hand strut tower and plumbs inline with the crankcase vent hose running from the valve cover to the turbo intake pipe, helping keep oil out of the intercooler and piping.

Key Features

Fluid Lock®: Patented mechanism prevents overfilling and traps collected fluid until emptied
Large Ports: 10AN ORB inlet and outlet, 4AN ORB drain port
2-Step Separation: Internal baffling separates oil and water condensation from crankcase gases
O-Ring Sealed Dipstick: Check the oil level without removing the can
Direct Fit: Vehicle-specific bracket - no drilling required

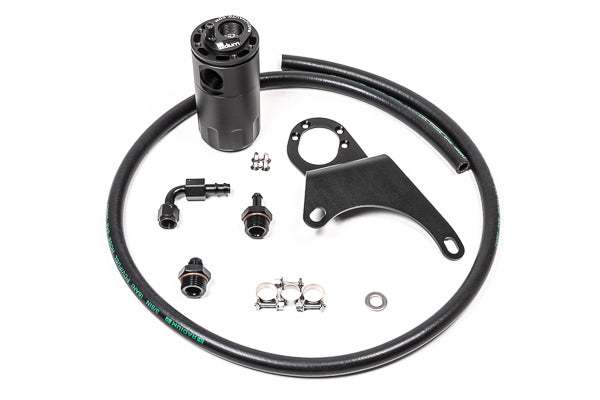

What's Included

1x Billet catch can with integrated condenser and dipstick
1x Laser-cut LH mounting bracket
Anodised hose ends and adapter fittings
Black PCV hose
Stainless steel mounting hardware

Optional Parts

Radium Fluid Lock PCV Catch Can Kit - Mitsubishi Evo 7-9 (20-0116-FL) - matching PCV-side can (LHD vehicles only)
Radium Catch Can Petcock Drain Kit (20-0024) - remote drain for easier servicing where space allows

Important Notes

There is no fixed emptying interval - check the dipstick after 3-4 weeks of driving and adjust from there; PCV cans typically collect more than crankcase (CCV) cans
Empty by unscrewing the lower reservoir, or fit the optional Petcock Drain Kit where there is clearance
Excessive oil collection can indicate engine issues such as excessive blow-by, an overfilled sump, poor breather placement/baffling or a PCV valve that does not close under load
Installation instructions are available in the Instructions tab

Vehicle Fitment

Mitsubishi Lancer Evolution VIII
Mitsubishi Lancer Evolution IX

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Mitsubishi Lancer Evolution VIII
- Mitsubishi Lancer Evolution IX

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
