Radium Engineering Fuel Cell Subharness Kit

Name: Radium Engineering Fuel Cell Subharness Kit
Brand: Radium Engineering
SKU: 20-0774
Price: 663.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0774

$663.99 - $663.99

$663.99

$663.99 - $663.99

$663.99

Description

Radium Fuel Cell Subharness Kit

Application: Universal - designed around Radium FCST-X and RA-Series fuel cells
Part Type: Fuel cell electrical subharness kit
Part Number: 20-0774

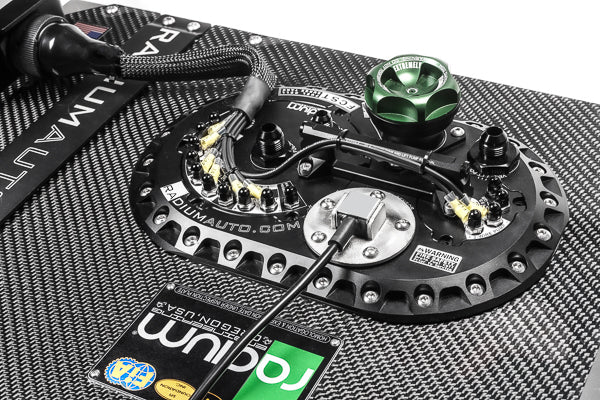

The fuel cell subharness kit makes for quicker pit stops. Racers often keep a spare drop-in FCST-X fuel pump module in the pits in case of a pump or wiring fault - with a subharness on both FCST-X units, the whole pump assembly can be swapped without tools.

While mainly universal, the pre-terminated 10 AWG wires carry identification labels that match the FCST-X labelling (they also work with the older FCST, which is labelled slightly differently). The mounting bracket suits the perimeter of Radium RA-Series fuel cells and can also be used on other cells or mounted off the cell.

Key Features

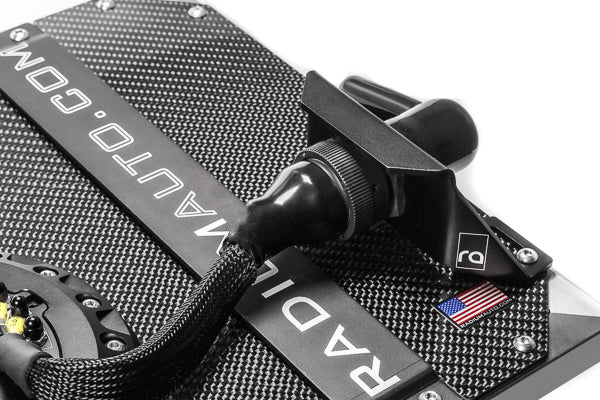

Tool-Free Swaps: Sealed bulkhead connector lets a complete pump module be disconnected and swapped in the pits

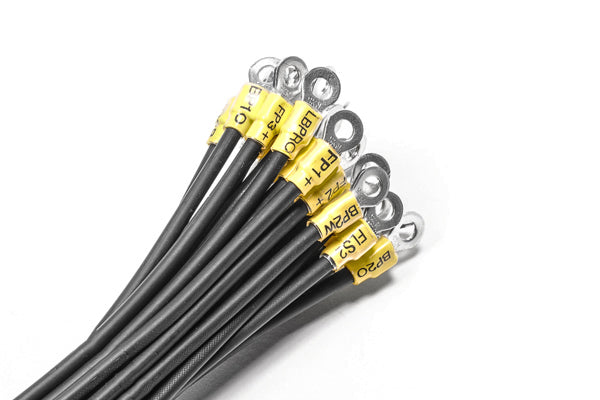

Labelled Wiring: 26 pre-terminated 10 AWG wires labelled to match FCST-X
Sealed Connector: Environmentally sealed CPC bulkhead connector
Flexible Mounting: Bracket bolt spacing matches all RA-Series cells; can be rotated inward or outward for a 76mm (3in) location difference

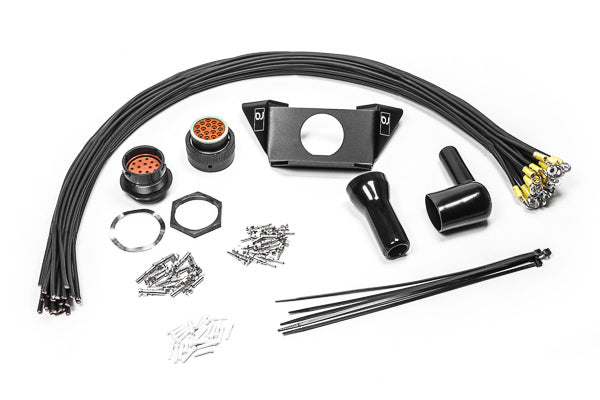

What's Included

Anodised aluminium fuel cell mounting bracket
Environmentally sealed female CPC bulkhead connector and male CPC connector
16 x stamped 14-10 AWG open-barrel female contacts and 16 x male contacts
Straight and right-angle black rubber boots
Bulkhead panel hex nut and locking wave washer
25 x plugs for empty cavities
5 x cable ties
26 x labelled 10 AWG wires with pre-terminated ring terminals

Optional Parts

Radium FCST-X, Fuel Cell Surge Tank (20-1990-00) - the drop-in pump module the wiring labels are matched to

Important Notes

An open-barrel style crimper is required for the stamped contacts
Chassis-side harness wiring is not included
Wire loom (expandable sleeving, cloth tape etc.) is optional and not included
For non-RA-Series fuel cells, bolt spacing must be 91-145mm (3.6-5.7in)
Mount each wire to its stud first, then fit the bulkhead connector into the mount and install the mount; wires can be cut to length and terminated in place
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
