Radium Engineering Fuel Hanger, 89-05 Mazda MX-5, Pumps Not Included

Radium Fuel Hanger, 89-05 Mazda MX-5, Pumps Not Included

Application: Mazda MX-5 NA (1989-1997) and NB (1999-2005)
Part Type: Billet aluminium fuel pump hanger - pumps not included
Part Number: 20-1020

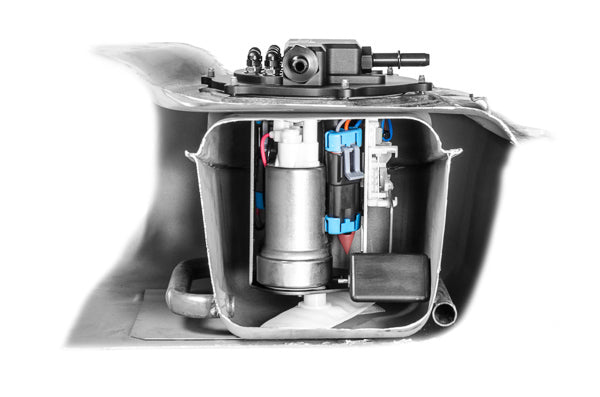

The Radium Fuel Pump Hanger replaces the factory in-tank fuel pump module on the 1989-2005 Mazda MX-5 and supports one or two aftermarket fuel pumps. The OEM fuel level sensor is reused and no modifications are needed under the fuel pump access cover.

The OEM internal tank baffle is retained, and a one-piece anodised aluminium collector box with two one-way fill valves (355 LPH each) keeps fuel around the pump inlet(s), refilled by fuel returning from the pressure regulator. Anodised billet extension brackets suit all tank variants, including an extension mount for later models with deeper tanks.

Key Features

• Single or Dual Pumps: Supports one or two aftermarket pumps
• OEM Sender Retained: Factory fuel level sensor reused
• Starvation Prevention: OEM baffle retained plus collector box with two 355 LPH one-way fill valves
• All Tank Variants: Billet extension brackets and deep-tank extension mount

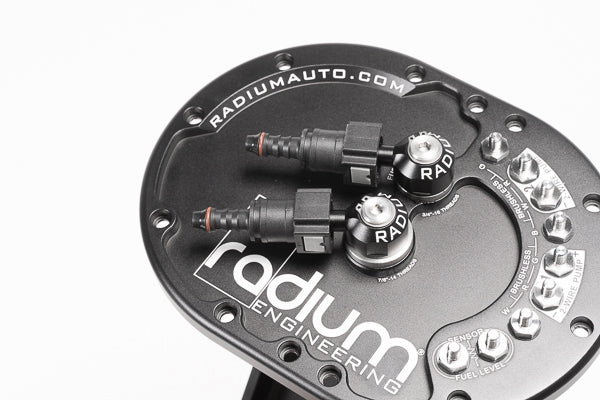

• Year-Specific Fittings: SAE quick connect barbs (89-97) and SAE banjo fittings (99-05) included
• Pre-Pump Filtration: Multiple pre-pump filters included
• Electrical: ETFE-insulated wiring, stainless anti-rotation terminals, sealed connections, non-conductive acorn nuts

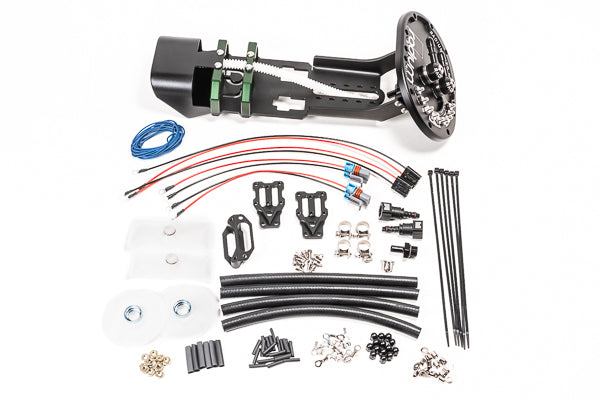

What's Included

• Fuel pump hanger with one-piece collector box and one-way fill valves
• Anodised billet aluminium extension brackets and extension mount
• SAE quick connect barbed hose ends (89-97)
• 10AN ORB and 8AN ORB to SAE quick connect banjo fittings (99-05)
• Multiple pre-pump filters
• Anodised aluminium acorn nuts

Optional Parts

• Radium FPR RA Fuel Pressure Regulator Kit - Mazda MX-5 NB 99-05 (20-1022) - Required for 1999-2005 models if not using the plumbing kit
• Radium Engineering Fuel Hanger Plumbing Kit - Mazda MX-5 NA/NB (Stainless Filter) (20-1025-03) - 8AN feed line, filter with billet mount and RA-series FPR
• Radium Engineering Fuel Hanger Plumbing Kit - Mazda MX-5 NA/NB (Microglass Filter) (20-1025-05) - As above with Microglass filter
• Radium Engineering Pump Outlet Adapter - Check Valve with 10mm Barb (20-0798) - Required when staging two Ti Automotive E5LM pumps
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - One wiring kit per aftermarket pump

Important Notes

• Fuel pumps are not included
• 1999-2005: the OEM FPR is removed, so an aftermarket regulator is required - the 20-1022 FPR kit and 20-1025 plumbing kits are plug-and-play options
• 1989-1997: the OEM FPR is retained on the fuel rail
• The OEM post-pump filter is not eliminated
• Ti Automotive E5LM pumps have no integrated check valve - the 20-0798 outlet check valve is required when staging two E5LM pumps
• Some single-pump setups can reuse OEM wiring, but upgraded wiring is recommended (one wiring kit per pump)
• Other pumps with a 39mm outer diameter may fit but are not listed by Radium
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mazda MX-5 NA (1989-1997)
• Mazda MX-5 NB (1999-2005)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Mazda MX-5 NA (1989-1997)
- Mazda MX-5 NB (1999-2005)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
