Application: Chevrolet Camaro (2010-2015) - LS3 / LS7 / L99
Part Type: Fuel hanger plumbing kit (6 micron microglass filter)
Part Number: 20-1326-05

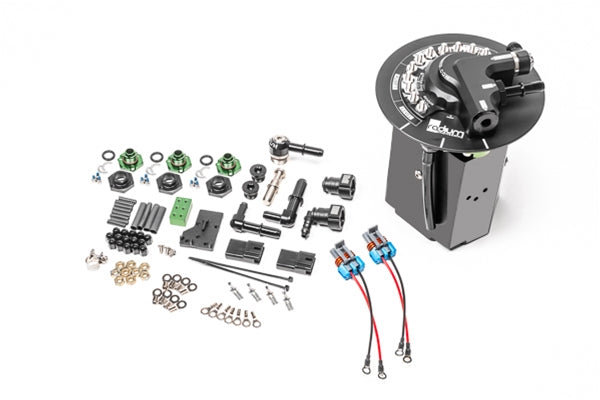

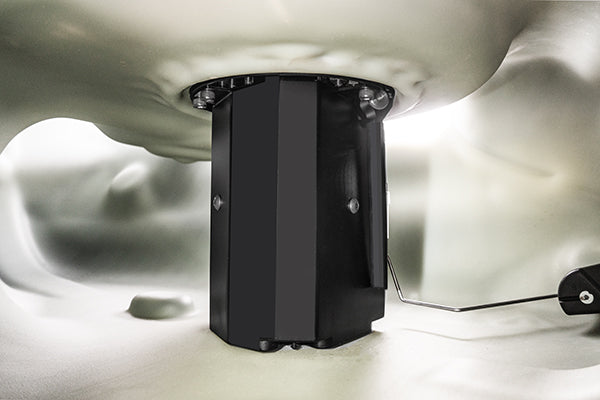

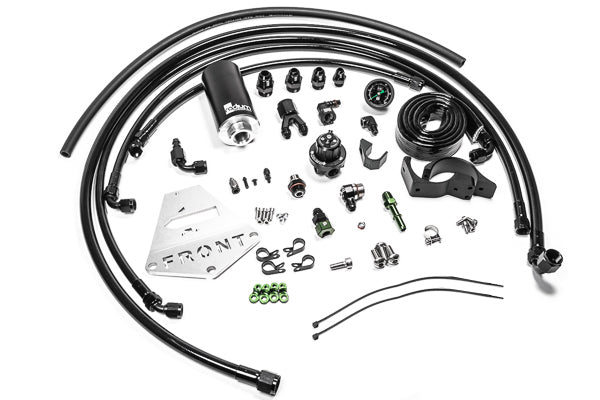

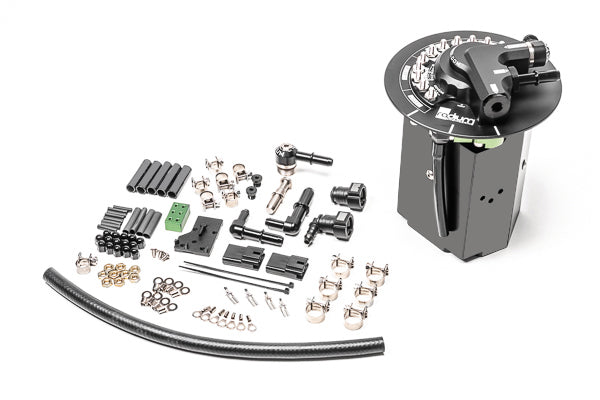

The Radium 20-1326-05 Fuel Hanger Plumbing Kit plumbs the Radium 08-17 GM fuel pump hanger to Radium fuel rails in the 2010-2015 Chevrolet Camaro with the LS3, LS7 or L99. It uses a high-flow fuel filter with a finer 6 micron microglass element.

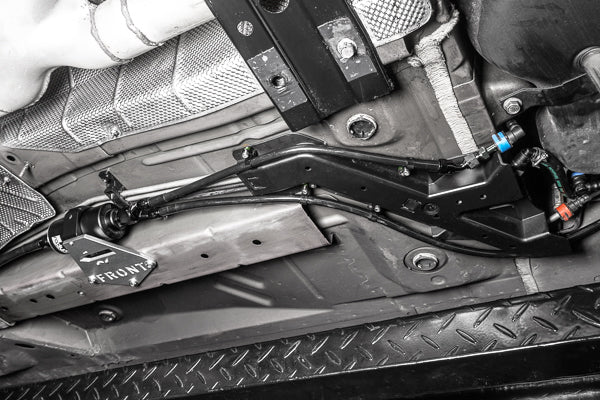

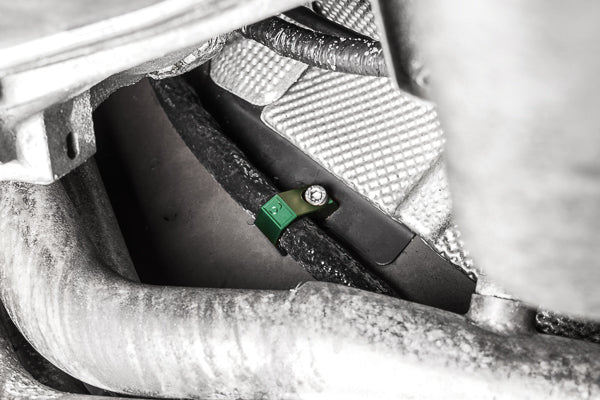

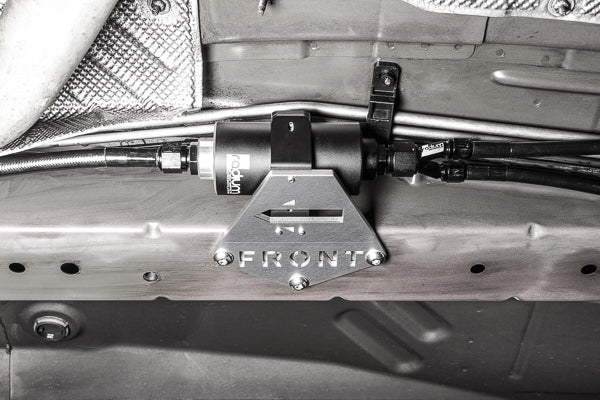

Dual 6AN PTFE feed lines route from the fuel hat to the fuel filter, because a single 8AN line will not fit between the fuel tank and the unibody while two 6AN lines give a larger combined flow area. The back half of the OEM feed line is reused for the OEM fuel pressure sensor needed for ECU diagnostics. An 8AN PTFE line runs from the filter to the RH fuel rail, secured away from the header by a billet aluminium clamp, and a 6AN PTFE line connects the regulator return port to the OEM feed hard line.
