Radium Engineering Radium Engineering Fuel Pump Hanger, Acura / Honda NSX (1990-2005) - Walbro GSS342 / AEM 50-1200, product image, part 20-2790

Radium Engineering Fuel Pump Hanger, Acura / Honda NSX (1990-2005) - Walbro GSS342 / AEM 50-1200

Name: Radium Engineering Fuel Pump Hanger, Acura / Honda NSX (1990-2005) - Walbro GSS342 / AEM 50-1200
Brand: Radium Engineering
SKU: 20-2790
Price: 401.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-2790

$401.99 - $401.99

$401.99

$401.99 - $401.99

$401.99

Description

Radium Fuel Pump Hanger, Acura / Honda NSX (1990-2005) - Walbro GSS342 / AEM 50-1200

Application: 1990-2005 Acura / Honda NSX
Part Type: In-tank fuel pump hanger (Walbro GSS342 or AEM 50-1200 style pumps)
Part Number: 20-2790

The Radium 20-2790 fuel pump hanger for the 1990-2005 Acura / Honda NSX replaces the stock fuel pump assembly and suits Walbro GSS342 or AEM 50-1200 style pumps. No cutting or modifying of the sheet metal or fuel tank is required, and the pump sits in the factory collector bowl for fuel starvation protection.

All fittings are machined low enough to clear the factory sheet metal. The hanger is configured for one aftermarket pump; add the 20-2796 dual pump add-on to run a second pump. Custom anti-rotation stainless steel electrical studs handle the high current that compact multi-pin bulkhead connectors cannot, with non-conductive anodised aluminium acorn nuts and chemically resistant ETFE-insulated in-tank wiring.

Key Features

Drop-In: Replaces the stock pump assembly with no cutting of the sheet metal or tank

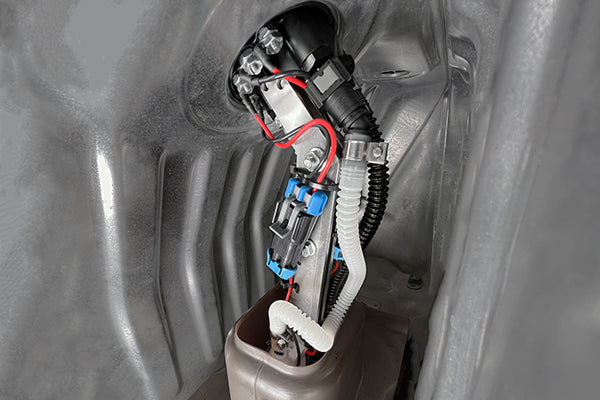

Collector Bowl: Pump is positioned in the factory collector bowl for fuel starvation protection
AN Ports: 8AN ORB pump outlet and 6AN ORB return on the top plate, each with a 6AN male fitting
Low Profile: Fittings machined low enough to clear the factory sheet metal
Dual Pump Ready: Add the 20-2796 dual pump add-on for a second pump
High Current Electrical: Anti-rotation stainless steel studs, sealed connections, ETFE-insulated in-tank wiring
Fuel Compatibility: Petrol, methanol and E85 compliant

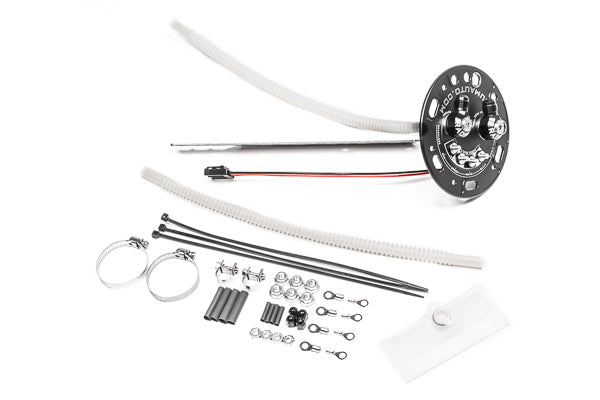

What's Included

Partially assembled fuel pump hanger
Hardware to install one compatible fuel pump
Electrical hardware for external wiring at the top hat
Filter sock for the Walbro GSS342 (AEM pumps come with their own)
Fuel tank gasket

Optional Parts

Radium Fuel Hanger Connection Kit, Acura / Honda NSX (1990-1995) (20-2795) - connects the hanger to the OEM fuel lines under the car

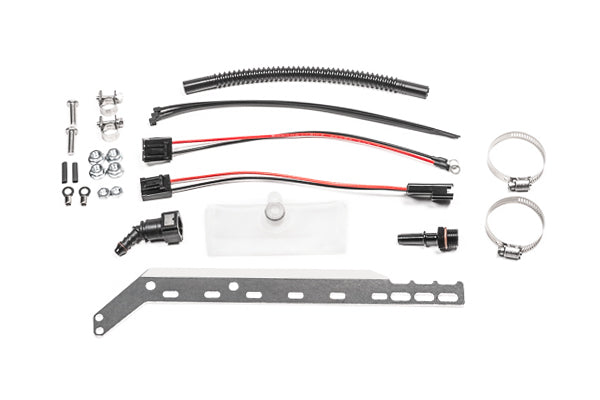

Radium Dual Pump Add-On, Acura / Honda NSX (1990-2005) - Walbro GSS342 / AEM 50-1200 (20-2796) - adds a second GSS342 / AEM pump to this hanger
Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - one per aftermarket pump, with an independent relay and fuse, so each pump gets full current

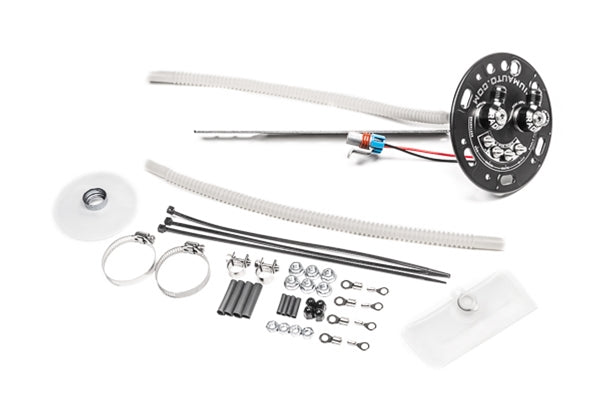

Radium Engineering Hanger, 90-05 Honda NSX, (20-2792) - NSX hanger for Walbro F90000267/274/285/295 or brushless pumps

Important Notes

Fuel pump(s) are not listed in the kit contents - order compatible pump(s) separately
Compatible pumps: AEM 50-1000, 50-1200, 50-1220, 50-1230 and 50-1235; Walbro GSS342
AEM 50-1230 and 50-1235 pumps have no integrated check valve
Not listed for brushless pumps
A single Walbro GSS342 (255 LPH) can reuse the OEM wiring, but upgraded wiring is recommended so the pump receives full power (OEM pump wiring is rated under 15A)
Dual pump installations must use an independent relay and fuse
Choose pump(s) based on expected engine power, fuel type (petrol, E85 etc.) and fuel pressure
Installation instructions are available in the Instructions tab

Vehicle Fitment

Acura / Honda NSX 1990-2005 - all models and trims, LHD and RHD

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Acura / Honda NSX 1990-2005 - all models and trims, LHD and RHD

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
