Radium Engineering Fuel Pump Hanger, Honda Del Sol - Walbro GSS342 / AEM 50-1200

Radium Fuel Pump Hanger, Honda Del Sol - Walbro GSS342 / AEM 50-1200

Application: Honda Del Sol
Part Type: In-tank fuel pump hanger (Walbro GSS342 or AEM 50-1200 style pumps)
Part Number: 20-3790

The Radium 20-3790 fuel pump hanger for the Honda Del Sol replaces the stock fuel pump assembly and suits Walbro GSS342 or AEM 50-1200 style pumps. No cutting or modifying of the sheet metal or fuel tank is required, and the pump sits in the factory collector bowl for fuel starvation protection.

All fittings are machined low enough to clear the fuel pump access cover. The hanger is configured for one aftermarket pump; add the 20-3796 dual pump add-on to run a second pump. Custom anti-rotation stainless steel electrical studs handle the high current that compact multi-pin bulkhead connectors cannot, with non-conductive anodised aluminium acorn nuts and chemically resistant ETFE-insulated in-tank wiring.

Key Features

• Drop-In: Replaces the stock pump assembly with no cutting of the sheet metal or tank
• Collector Bowl: Pump is positioned in the factory collector bowl for fuel starvation protection
• AN Ports: 8AN ORB pump outlet and 6AN ORB return on the top plate, each with a 6AN male fitting
• Low Profile: Fittings machined low enough to clear the fuel pump access cover
• Dual Pump Ready: Add the 20-3796 dual pump add-on for a second pump
• High Current Electrical: Anti-rotation stainless steel studs, sealed connections, ETFE-insulated in-tank wiring
• Fuel Compatibility: Petrol, methanol and E85 compliant

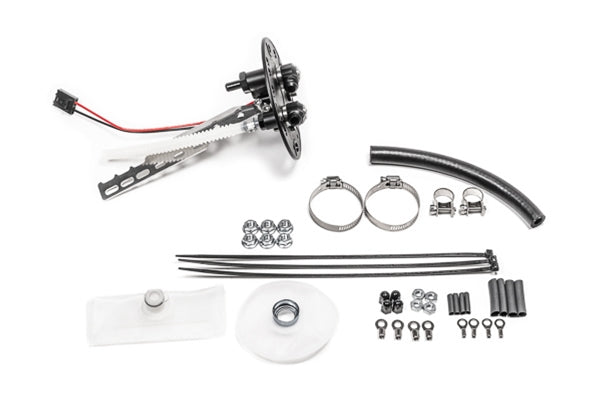

What's Included

• Partially assembled fuel pump hanger
• Hardware to install one compatible fuel pump
• Electrical hardware for external wiring at the top hat
• Filter sock for the Walbro GSS342 (AEM pumps come with their own)

Optional Parts

• Radium Fuel Hanger Connection Kit, Honda Del Sol (20-3795) - connects the hanger to the OEM fuel lines under the car

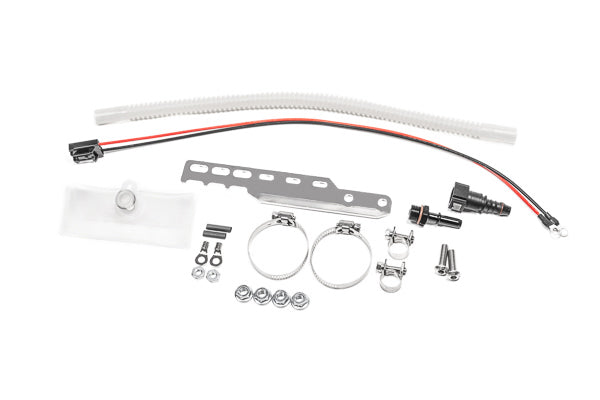

• Radium Dual Pump Add-On, Honda Del Sol - Walbro GSS342 / AEM 50-1200 (20-3796) - adds a second GSS342 / AEM pump to this hanger
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - one per aftermarket pump, with an independent relay and fuse, so each pump gets full current
• Radium Fuel Pump Hanger, Honda Del Sol - Walbro F900 / Brushless (20-3792) - version for Walbro F900 or brushless pumps

Important Notes

• Fuel pump not included - order a compatible pump separately
• Compatible pumps: AEM 50-1000, 50-1200, 50-1220, 50-1230 and 50-1235; Walbro GSS342
• AEM 50-1230 and 50-1235 pumps have no integrated check valve
• Not listed for brushless pumps
• A single Walbro GSS342 (255 LPH) can reuse the OEM wiring, but upgraded wiring is recommended so the pump receives full power (OEM pump wiring is rated under 15A)
• Dual pump installations must use an independent relay and fuse
• The instructions reference a replacement Honda fuel tank gasket (Honda 17574-SE0-000 or 17574-SV1-L01) as a service part - it is not listed as included
• Choose pump(s) based on expected engine power, fuel type (petrol, E85 etc.) and fuel pressure
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Del Sol - all models and trims, LHD and RHD (Radium gives no year range)
