Radium Fuel Pump Hanger Suit AEM 50-1220/DW440 - Holden Commodore VE VF/Chevolet Camaro SS 10-15
Application: Holden Commodore VE / VF, Holden Caprice, Chevrolet Camaro / SS / Caprice PPV / Omega, Cadillac CTS / CTS-V, Pontiac G8
Part Type: Billet aluminium fuel pump hanger - pumps not included
Part Number: 20-1320

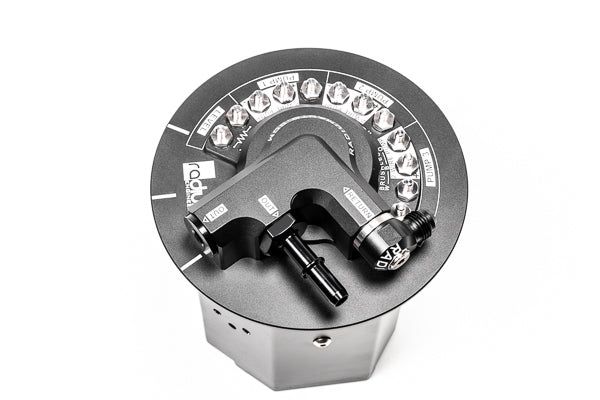

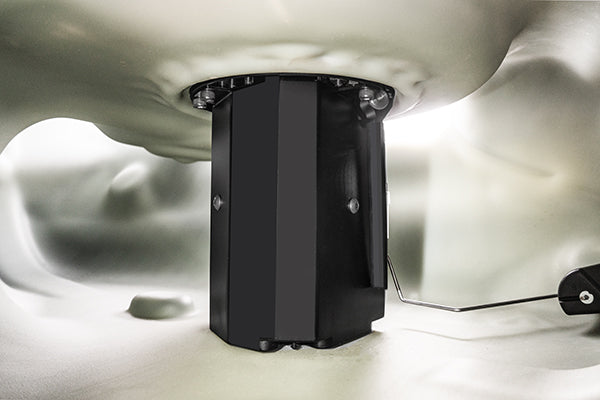

The Radium Fuel Pump Hanger replaces the factory in-tank fuel pump module on 2008-2017 GM cars including the Holden Commodore VE / VF, Chevrolet Camaro and Cadillac CTS-V and supports one, two or three aftermarket fuel pumps. All OEM sensors can be reused.
A one-piece anodised aluminium collector box with three one-way fill valves (355 LPH each) keeps fuel around the pump inlets, refilled by the pressure regulator return and the jet pump crossover line. Pre-pump filtration is provided for all three pumps through three separate chambers, and the OEM return line restriction is removed so higher-flow pumps can be used. The OEM pressure regulator and post-pump filter are eliminated - Radium's CTS-V and Camaro plumbing kits include both.
Key Features
-
Verified Pumps: AEM 50-1220, DeatschWerks DW440 (brushless), Bosch 0 580 454 100, and stock CTS-V / Commodore VE / Omega / G8 pumps
-
Up to Three Pumps: Replaces the OEM module with support for one to three aftermarket pumps
-

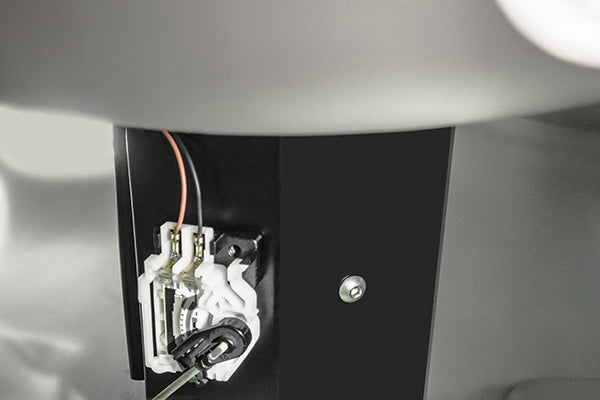

OEM Sensors Retained: All OEM sensors can be reused, with two billet level sensor mounts
-

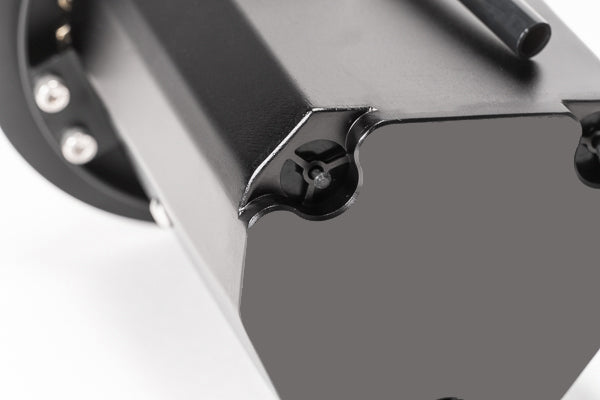

Collector Box: One-piece anodised aluminium with three 355 LPH one-way fill valves
-
Chambered Pre-Filtration: Three separate filter chambers, one per pump
-
Reduced Return Restriction: Allows higher-flow pumps to be used
-
Electrical: Studs with anti-rotation terminals

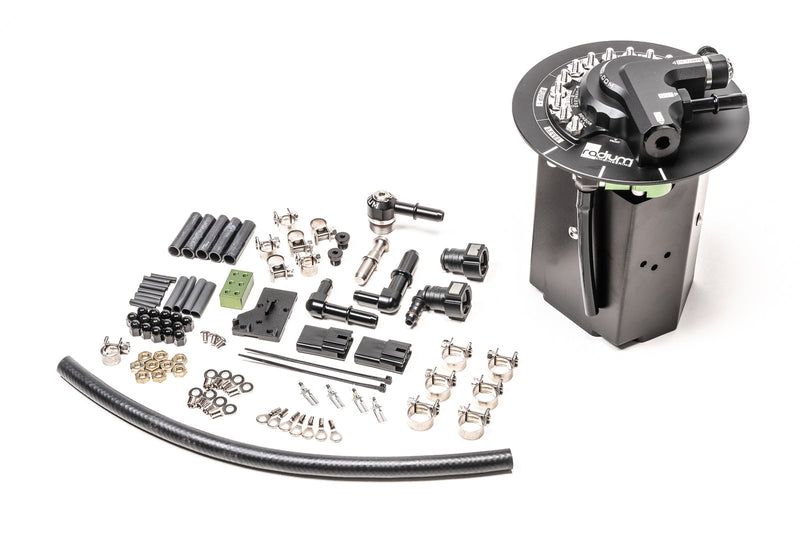

What's Included
- Collector box, one-way fill valves and mounting hardware for one to three pumps (unused parts may be left out)

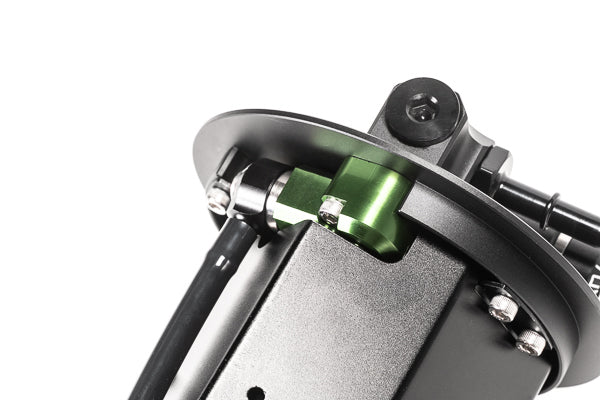

- Two billet aluminium level sensor mounts
- Two SAE quick connect fittings for the factory feed line and two for the crossover line
- SAE plugs to cap the feed line after the pressure sensor
- 8AN ORB to 6AN male banjo fitting for the return port
- Spare 8AN ORB to 6AN male fitting
Optional Parts
-
Radium Fuel Hanger Plumbing Kit with Stainless Filter, Cadillac CTS-V (20-1325-03) - 2008-2015 CTS-V only; requires Radium fuel rails
-
Radium Fuel Hanger Plumbing Kit with Microglass Filter, Cadillac CTS-V (20-1325-05) - 2008-2015 CTS-V only; requires Radium fuel rails
-
Radium Fuel Hanger Plumbing Kit with Stainless Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015) (20-1326-03) - 2010-2015 Camaro LS3/LS7/L99 only; requires Radium fuel rails
-
Radium Fuel Hanger Plumbing Kit with Microglass Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015) (20-1326-05) - 2010-2015 Camaro LS3/LS7/L99 only; requires Radium fuel rails
-
Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - One wiring kit per aftermarket pump
Important Notes
- Fuel pumps are not included
- The Bosch 0 580 454 100 and CTS-V stock pumps have no internal check valve - Radium recommends running two of them full time with the OEM PCM
- The OEM regulator is removed - an aftermarket fuel pressure regulator is required (included in the 20-1325 / 20-1326 plumbing kits)
- The OEM post-pump filter is removed - fit a low-micron filter downstream (included in the plumbing kits)
- Fuel pressure may not hold after shut-down without a check valve - fit one if not using a plumbing kit
- The OEM venturi jet pump uses approx. 15-45 LPH depending on fuel pressure - factor this into pump sizing
- Single-pump installs can reuse the OEM controller wiring, but upgraded wiring is recommended for full pump performance
- Radium lists the Holden Commodore VE for 2008-2009 and the VF for 2014-2017 - contact us to confirm fitment for other model years
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Holden Commodore VE (2008-2009)
- Holden Commodore VF (2014-2017)
- Holden Caprice (2009-2017)
- Chevrolet Camaro (2010-2015)
- Chevrolet SS (2014-2017)
- Chevrolet Caprice PPV (2009-2017)
- Chevrolet Omega (2008-2009)
- Cadillac CTS (2008-2014)
- Cadillac CTS-V (2008-2015)
- Pontiac G8 (2008-2009)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Holden Commodore VE (2008-2009)
- Holden Commodore VF (2014-2017)
- Holden Caprice (2009-2017)
- Chevrolet Camaro (2010-2015)
- Chevrolet SS (2014-2017)
- Chevrolet Caprice PPV (2009-2017)
- Chevrolet Omega (2008-2009)
- Cadillac CTS (2008-2014)
- Cadillac CTS-V (2008-2015)
- Pontiac G8 (2008-2009)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
