Radium Engineering Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+

Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+

Application: Toyota GR86 (2022+), Subaru BRZ (2022+)
Part Type: Billet aluminium fuel pump hanger - pumps not included
Part Number: 20-1074

The Radium Fuel Pump Hanger replaces the factory in-tank fuel pump module on the 2022+ Toyota GR86 and Subaru BRZ and supports one or two aftermarket fuel pumps while retaining the OEM fuel level sender.

A one-piece anodised aluminium collector box with a 355 LPH one-way fill valve keeps fuel around the pump inlet(s) and is refilled by fuel returning from the regulator. The OEM venturi jet pump siphon is replaced by a redesigned system that reduces return restriction. The OEM pressure regulator and post-pump filter are eliminated, so an aftermarket regulator and low-micron filter are required - both are included in Radium's 20-0966 plumbing kits.

Key Features

• Verified Pumps: Walbro F90000267 / F90000274 / F90000285, DeatschWerks DW440 / DW810, Fuelab 49614, Protec 11928
• Single or Dual Pumps: Replaces the factory in-tank module and supports one or two aftermarket pumps
• OEM Sender Retained: Factory fuel level sender reused
• Collector Box: One-piece anodised aluminium box with 355 LPH one-way fill valve
• Redesigned Venturi: Jet pump siphon with reduced return restriction
• Single Merged Outlet: Pumps merge to one 8AN ORB pump-out port
• Brushless Compatible: Accepts verified brushless pumps
• Electrical: High-current connections with anti-rotation terminals
• Alternative Fuel Compatible: Stainless hardware and clamps throughout

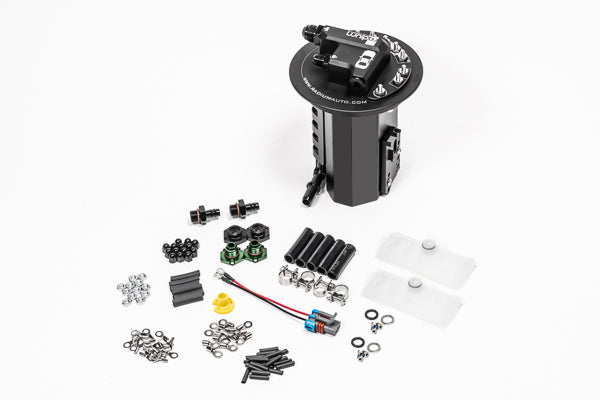

What's Included

• Partially assembled fuel pump hanger with parts to install one or two listed pumps
• Electrical hardware kit for external wiring on top of the hanger
• 8AN ORB to 8AN male pump-out fitting
• 6AN ORB to 6AN male return fitting

Optional Parts

• Radium Fuel Hanger Plumbing Kit with Stainless Filter: Subaru BRZ/Toyota 86 (20-0966-03) - Return-style plumbing kit with RA-series FPR, gauge and check valve filter
• Radium Fuel Hanger Plumbing Kit with Microglass Filter: Subaru BRZ/Toyota 86 (20-0966-05) - As above with Microglass filter element
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - One wiring kit per aftermarket pump recommended

Important Notes

• Fuel pumps are not included
• Requires an aftermarket fuel pressure regulator and a low-micron aftermarket filter downstream - both are included in the 20-0966 plumbing kits
• A check valve is required if fuel pressure must hold after shut-down - the 20-0966 kits include a check valve filter
• The venturi jet pump uses approx. 15-45 LPH of pump flow - factor this into pump sizing
• Single-pump setups can reuse the OEM pump controller wiring, but upgraded wiring is recommended for full pump output (one wiring kit per pump)
• The 20-0966 plumbing kits are not compatible with automatic transmissions (filter/FPR mounting interference)
• Other similar pumps may fit but are not verified by Radium
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota GR86 (2022+)
• Subaru BRZ (2022+)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Toyota GR86 (2022+)
- Subaru BRZ (2022+)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
