Radium Fuel Pump Hanger - Toyota Supra A80 JZA80 (1993-2002)
Application: Toyota Supra MK4 (JZA80)
Part Type: Billet aluminium fuel pump hanger - pumps not included
Part Number: 20-1510, 20-1511, 20-1512
The Radium Fuel Pump Hanger allows one, two or three aftermarket fuel pumps to be run in the stock MK4 Supra fuel tank without permanently modifying the fuel access cover. Pump outlets merge into a single 10AN billet collector, and barb fittings are included to reconnect the OEM return and vent hoses.

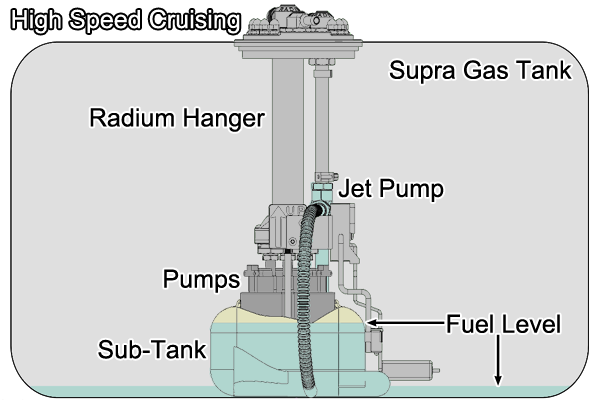

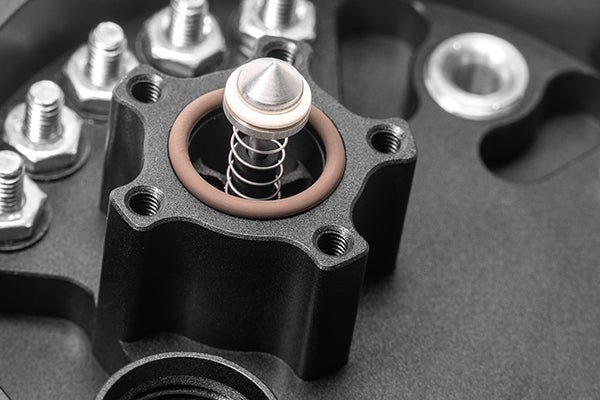

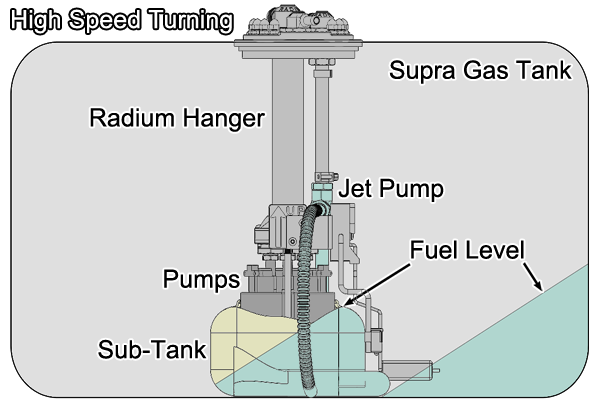

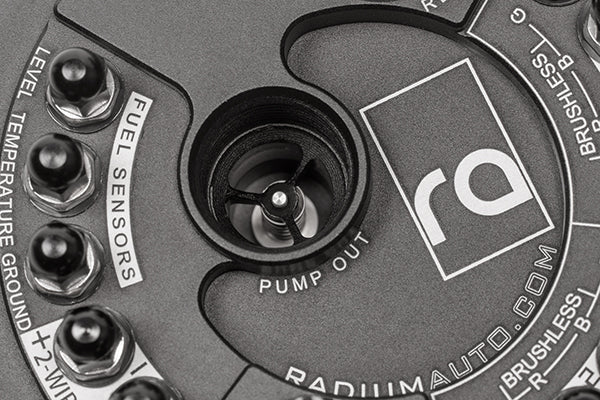

A redesigned venturi jet pump scavenges fuel from outside the sub-tank and feeds the pump inlets directly, addressing the weak starvation protection of the OEM system without restricting the return line. A high-flow check valve on the merged outlet holds pressure after shut-down, and anti-rotation stainless studs, non-conductive acorn nuts and ETFE-insulated wiring handle the electrical side.
Key Features
-

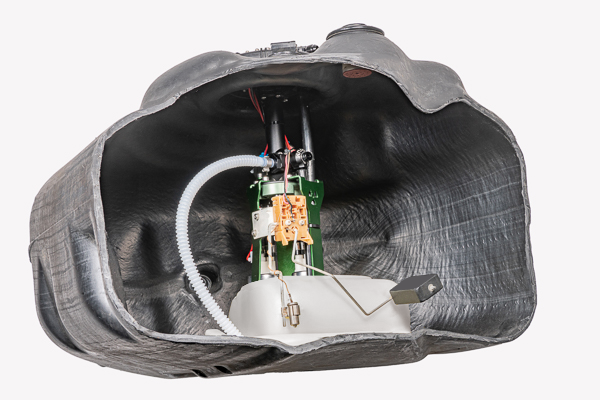

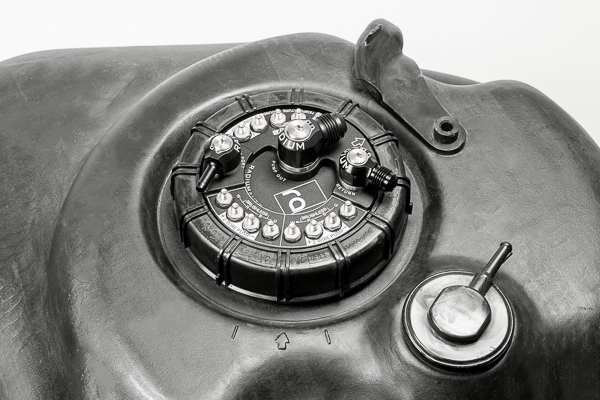

Drop-in Replacement: Fits the stock tank with no permanent modification to the access cover
-
Up to Three Pumps: 1-3 pumps, or 1-2 Ti Automotive E5LM pumps
-
Merged Outlet: 10AN ORB feed port with low-profile 8AN male fitting
-
Return Port: 8AN ORB with low-profile 6AN male fitting
-
Starvation Protection: Redesigned venturi jet pump feeds the pump inlets directly
-
High-Current Electrical: Anti-rotation stainless studs, non-conductive acorn nuts, ETFE-insulated wiring
-
OEM Sensors: Hardware included for the OEM fuel sender and temperature sensor
Available Configurations
-

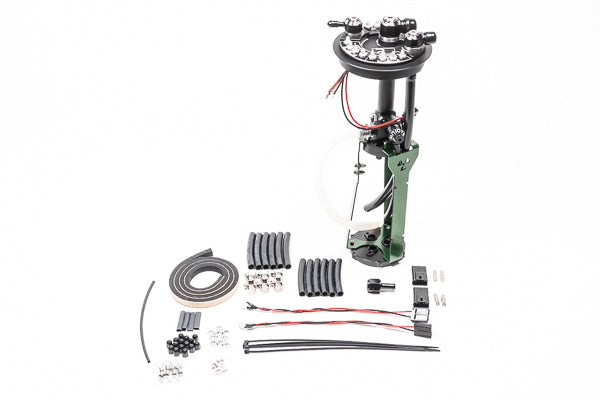

20-1510: Suits Walbro GSS342, AEM 50-1200, AEM 50-1230 and AEM 50-1235
-

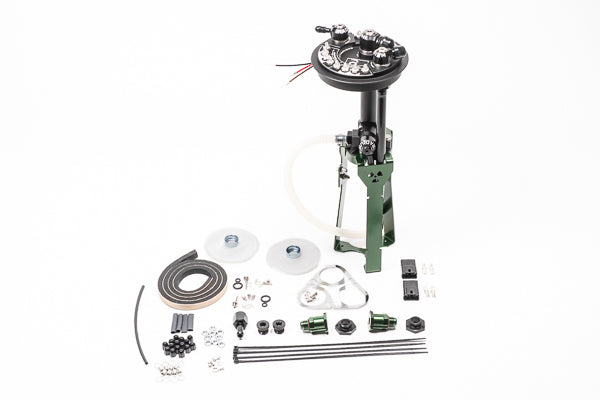

20-1511: Suits Ti Automotive E5LM brushless pumps (up to two)
-

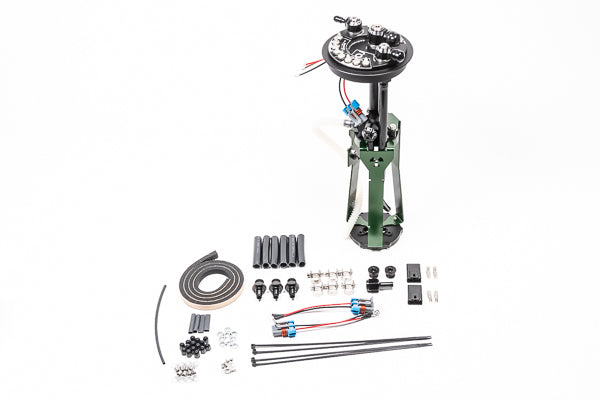

20-1512: Suits Walbro F90000267, F90000274, F90000285 and F90000295; Protec 11928, Fuelab 49614 and DeatschWerks DW810 with 13-1187 base
What's Included
- 8AN male pump outlet fitting
- 6AN male aftermarket return fitting
- 8.5mm barb hose end (OEM return)
- 6.5mm barb fitting (OEM vent)
- OEM fuel sensor mount
- Venturi siphon jet pump
- Fuel-resistant submersible tubing
- Fuel-resistant ETFE-insulated wiring
- Stainless steel hardware
- Pump inlet filtration
Optional Parts
-
Radium Fuel Hanger Plumbing Kit w/Filter - Toyota Supra A80 93-02 (20-0415-03 / 20-0415-05) - Feed and return plumbing with filter, for use with the Radium 20-0215 fuel rail
-
Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb (20-1533) - Required for each AEM 50-1230 / 50-1235 pump
-
Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) - Required for each Ti Automotive E5LM pump
-
Radium Engineering Fuel Pump Filter Base Adapter - 12mm Brushless Pumps (13-1187) - Required for Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps
-
Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - One per pump (qty 1 single, 2 dual, 3 triple)
-
Radium Fuel Pump Inlet Filter Sock (14-0143) - Filter sock for Walbro GSS342 pumps
Important Notes
- Fuel pumps are not included
- AEM 50-1230 / 50-1235 pumps have no check valve - each requires one 20-1533 check valve kit
- Ti Automotive E5LM pumps (20-1511) require one 20-1534 check valve kit per pump and a Ti Automotive BKS1001 controller
- Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps do not fit the included strainer and require the 13-1187 base
- The venturi jet pump draws approx. 15-45 LPH of pump flow depending on fuel pressure - factor this into pump sizing
- Single-pump setups can reuse the OEM controller wiring, but upgraded wiring is recommended (one wiring kit per pump)
- The optional 20-0415 plumbing kit is designed for the Radium 20-0215 fuel rail and is not compatible with the stock 2JZ rail
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Toyota Supra MK4 (JZA80) - 2JZ-GE non-turbo and 2JZ-GTE twin turbo
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Toyota Supra MK4 (JZA80) - 2JZ-GE non-turbo and 2JZ-GTE twin turbo
