Radium Engineering Radium Engineering Fuel Pump Hanger, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100), product image, part 20-0940

Radium Engineering Fuel Pump Hanger, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100)

Name: Radium Engineering Fuel Pump Hanger, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100)
Brand: Radium Engineering
SKU: 20-0940
Price: 960.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0940

$960.99 - $960.99

$960.99

$960.99 - $960.99

$960.99

Description

Radium Fuel Pump Hanger, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100)

Application: Toyota Chaser, Mark II and Cresta (X90 / X100)
Part Type: Drop-in fuel pump hanger
Part Number: 20-0940

The Radium 20-0940 is a drop-in aftermarket fuel pump hanger for the Toyota Chaser, Mark II and Cresta (X90 and X100), supporting one or two compatible pumps for the fuel needed to make more power.

Adapter fittings connect to the OEM fuel lines, an SAE quick connector is supplied for a second pump, and a replacement PTFE feed hose is included for later models with an inverted flare feed line. Custom stainless electrical studs handle high current, with non-conductive acorn nuts and ETFE-insulated in-tank wiring.

Key Features

Drop-In Installation: Replaces the OEM in-tank pump hanger
Single or Dual Pump: Supports one or two compatible pumps
Brushless Compatible: Verified with popular brushless and brushed pumps
High-Current Electrical: Stainless studs, non-conductive acorn nuts, ETFE wiring
Construction: Anodised aluminium, stainless steel hardware, fuel-resistant tubing
Fuel Compatibility: Gasoline, methanol and ethanol compliant

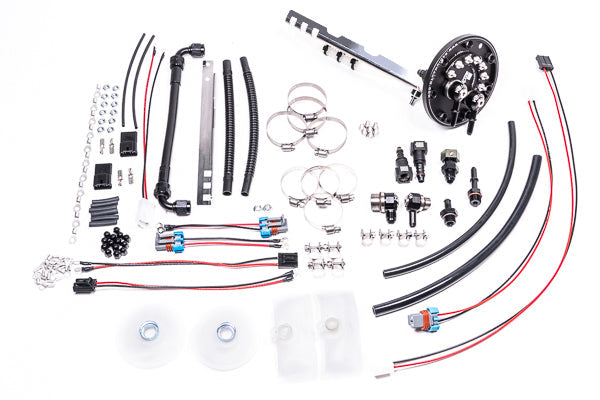

What's Included

Fuel pump hanger
Adapter fittings for the OEM fuel lines
SAE quick connector for a second pump
Replacement PTFE feed hose (later inverted-flare models)
Pump electrical hardware, stainless studs and non-conductive acorn nuts
ETFE-insulated in-tank wiring
Sock filters for the Walbro and AEM pumps listed, plus Ti E5LM

Optional Parts

Radium Single Pump Fuel Collector Add-On, Toyota Chaser / Mark II / Cresta (JZX90 / JZX100) (20-0941) - collector around the pump for fuel starvation protection (single pump only, 39mm pump bodies)
Radium DIY Fuel Pump Hard Wiring Kit (17-0031) - relay kit recommended to drive the internal pump(s)
Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb (20-1533) - check valve for AEM 50-1230 / 50-1235 pumps
Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) - check valve for Walbro F90000295 / Ti E5LM pumps
Radium Engineering Pump Outlet Adapter - Check Valve with 10mm Barb (20-0798) - second pump outlet when using 20-1534
Radium Fuel Pump Clamp for 41-43mm Pump Bodies (20-0441) - needed for 41-43mm pump bodies with the 20-0941 collector

Important Notes

Fuel pumps, check valves and relay kit sold separately
Verified pumps: Walbro F90000267, F90000274, F90000285, F90000295, GSS342; AEM 50-1000, 50-1200, 50-1230, 50-1235; Bosch BR540; DeatschWerks DW400, DW440 (brushless), DW810 (brushless); Protec 11928 (brushless); Fuelab 49614 (brushless); Ti Automotive E5LM (brushless) - other pumps may fit but are not verified by Radium
Some pumps have no check valve - see the check valve kits under Optional Parts
With the 20-0941 collector only a single 39mm-body pump can be used (Bosch BR540 and DW400 excluded)
Installation instructions are available in the Instructions tab

Vehicle Fitment

Toyota Chaser X90 / X100
Toyota Mark II X90 / X100
Toyota Cresta X90 / X100

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Toyota Chaser X90 / X100
- Toyota Mark II X90 / X100
- Toyota Cresta X90 / X100

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
