Application: Ford Barra inline-6 - Falcon BA / BF / FG (turbo and non-turbo)
Part Type: Billet fuel rail
Part Number: 20-1536

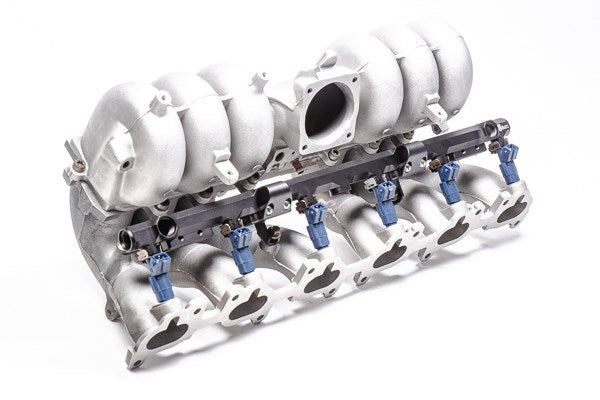

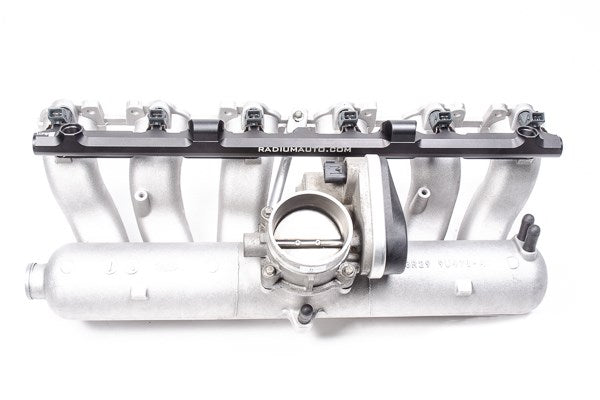

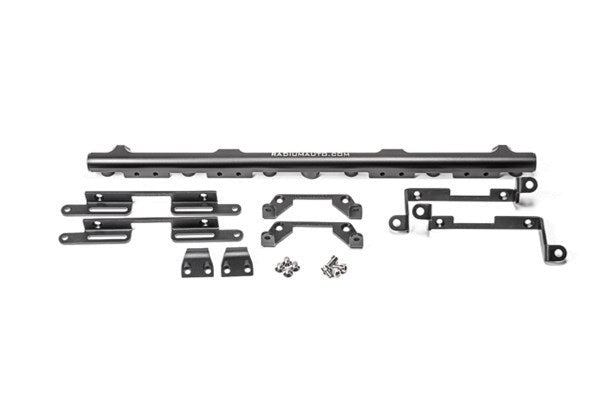

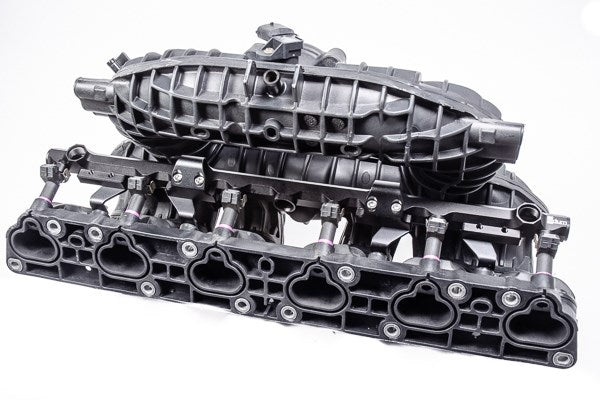

The Radium 20-1536 Fuel Rail is a high-flow upgrade rail for the Ford Barra inline-six. It is CNC machined from extruded 6063 aluminium, black anodised and laser etched, with a large 17.5mm (0.69in) centre bore for optimal flow.
The 20-1536 covers all Barra variants, replacing Radium's earlier 20-0536-01 (BA-BF Turbo), 20-0536-02 (FG Turbo) and 20-0536-03 (FG Non-Turbo) rails. The ports are tapped for 8AN ORB, and the rail is compatible with all fuel types including E85.
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
