Radium Fuel Rail Kit - Subaru BRZ & Toyota 86 12-21, 22+
Application: Subaru BRZ, Toyota 86 / GT86, Toyota GR86 and Scion FR-S
Part Type: Upgrade fuel rails, pair (fittings sold separately)
Part Number: 20-0111-02
These Radium upgrade fuel rails suit the Subaru BRZ, Toyota 86 / GT86, GR86 and Scion FR-S. A large 0.69in internal bore supports all necessary engine power requirements, and the left and right rails are identical, with anodised billet aluminium bodies and anodised aluminium mounting brackets.
The end ports are tapped for 8AN ORB and the centre port for 6AN ORB, accepting adapter fittings, direct mount regulators, fuel pulse dampers and fuel pressure gauge adapters. This kit is intended for builders who want to make their own custom lines and plumbing - for a complete hook-up to the factory feed line, add the Radium plumbing kit.
Key Features
-
Large Bore: 0.69in internal bore supports all necessary engine power requirements
-
Identical Rails: Left and right rails are the same
-
Billet Construction: Anodised billet aluminium rails with anodised aluminium brackets
-
Flexible Port Layout: 8AN ORB end ports and 6AN ORB centre port
-
Custom Plumbing: Ideal for builds requiring specific fittings and line routing

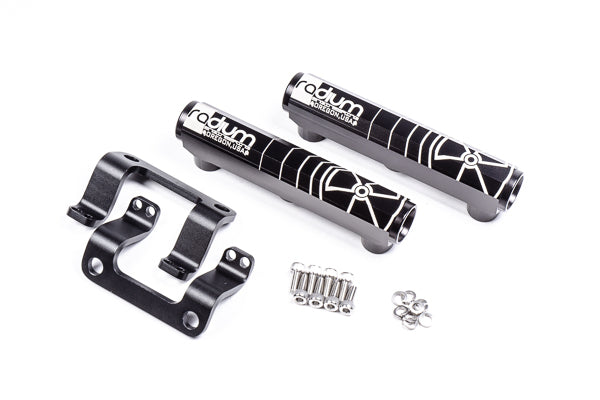

What's Included
- 2x Anodised billet aluminium fuel rail
- 2x Anodised aluminium mounting bracket
- Stainless steel mounting hardware
Optional Parts
-
Radium Fuel Rail Plumbing Kit - Subaru BRZ & Toyota 86 12-21, 22+ (20-0111-PK) - hose and fitting kit with all parts needed to connect the rails to the factory feed line
-
Radium ECU Mount- Suit Subaru BRZ/Toyota 86 (20-0352) - avoids cutting the OEM steel ECU mount and gives easier access to the RH fuel rail on early models (not compatible with 2022+ BRZ and GR86)
-
Radium DMR-RA Direct Mount Fuel Pressure Regulator (20-1623-00 / 20-1623-01) - direct mount regulator for the rail ports
Important Notes
- Fittings and adapters are sold separately
- This is an upgrade rail - OEM or OEM-equivalent injectors must be used (same height, with upper and lower O-ring diameters and styles matching OEM)
- Radium does not make injector recommendations - consult your tuner for brand or flow rate, and the injector manufacturer for a part number with correct dimensions
- Ensure there is enough space around the ports for larger accessories such as regulators, gauges and pulse dampers - refer to Radium's dimensional drawings to check clearance
- The 20-0352 ECU mount is not compatible with 2022+ BRZ and GR86 models
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Subaru BRZ (2012+)
- Toyota 86 / GT86 (2012-2021)
- Toyota GR86 (2022+)
- Scion FR-S (2012-2016)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Subaru BRZ (2012+)
- Toyota 86 / GT86 (2012-2021)
- Toyota GR86 (2022+)
- Scion FR-S (2012-2016)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
