Radium Engineering Fuel Rail - Mitsubishi Evo 1-3/Galant VR4 (4G63)

Radium Fuel Rail - Mitsubishi Evo 1-3/Galant VR4 (4G63)

Application: Mitsubishi early 4G63 - Evo I-III, Galant VR4 and DSM (Eclipse/Talon/Laser)
Part Type: Upgrade fuel rail
Part Number: 20-0533-02

The Radium Engineering fuel rail for the early Mitsubishi 4G63 is CNC-machined from solid 6061 aluminium with a large 17.5mm (0.69in) internal bore, sized to support the fuel demands of heavily modified engines. It is anodised and laser etched, and is compatible with all fuel types including E85 and other alcohol blends.

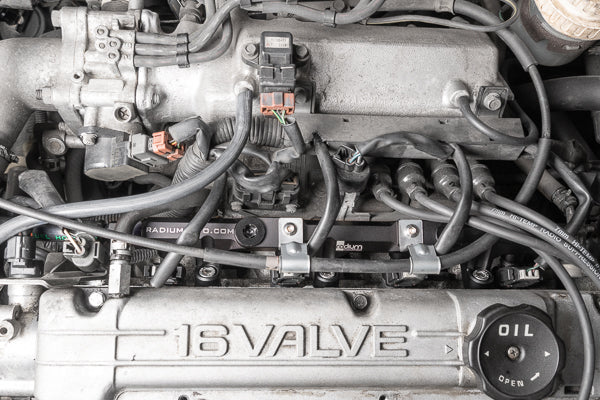

The rail eliminates the OEM two-bolt inlet flange and its restrictive 5.7mm (0.22in) orifice. It reuses the three OEM mounting spacers (Mitsubishi MD095402) to thermally insulate the rail from the intake manifold, and thermal insulating washers are supplied for the stainless steel mounting hardware. Mounting bosses mimic the factory rail so the OEM brackets can still secure the cables that pass by.

Key Features

• Large Bore: 17.5mm (0.69in) internal bore
• Billet Construction: CNC-machined from solid 6061 aluminium, anodised and laser etched
• Four 8AN ORB Ports: Tapped for 8AN ORB fittings
• Removes Restriction: Eliminates the OEM two-bolt inlet flange (5.7mm / 0.22in orifice)
• Thermal Insulation: Reuses the 3 OEM spacers plus supplied nylon thermal washers
• Fuel Compatibility: All fuel types including E85

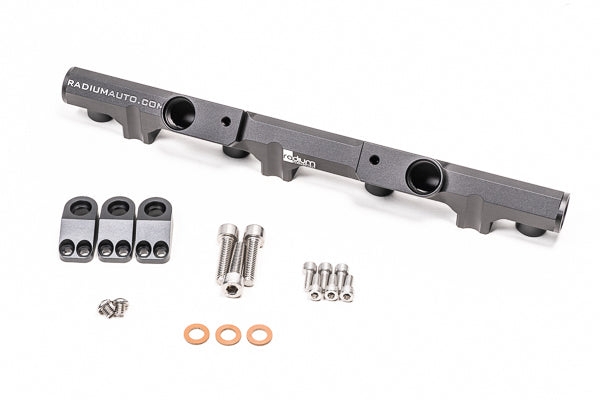

What's Included

• Anodised billet aluminium fuel rail
• Anodised aluminium fuel rail mounts
• Nylon thermal washers
• Stainless steel mounting hardware

Optional Parts

• Radium Fuel Rail Plumbing Kit - Mitsubishi Evo 1-3/Galant VR4 (4G63) (20-0533-PK) - bolt-in plumbing kit for use with the factory regulator and fuel lines
• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) - direct-mount 8AN ORB fuel pulse damper

Important Notes

• This is an upgrade rail - OEM or OEM-equivalent injectors must be used (same height as OEM, with upper and lower O-rings matching the OEM diameters and styles)
• Injectors are not included; Radium does not make injector recommendations - consult your tuner for brand/flow rate and the injector manufacturer for a part number with the correct dimensions
• For side-feed or air-assist injectors, Radium offers separate top feed conversion rails
• Fittings are not included - plug any unused ports with an 8AN ORB plug
• Fittings must be selected to suit the application and hose type; allow ample clearance around the ports for larger accessories such as regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution I (4G63)
• Mitsubishi Lancer Evolution II (4G63)
• Mitsubishi Lancer Evolution III (4G63)
• Mitsubishi Galant VR4 (4G63)
• Mitsubishi Eclipse DSM (4G63)
• Eagle Talon DSM (4G63)
• Plymouth Laser DSM (4G63)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Mitsubishi Lancer Evolution I (4G63)
- Mitsubishi Lancer Evolution II (4G63)
- Mitsubishi Lancer Evolution III (4G63)
- Mitsubishi Galant VR4 (4G63)
- Mitsubishi Eclipse DSM (4G63)
- Eagle Talon DSM (4G63)
- Plymouth Laser DSM (4G63)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
