Application: Nissan SR20VE (JDM U14 Bluebird SSS-Z, P11 Primera Te-V / G-V, 1997-2000)
Part Type: Top-feed conversion fuel rail kit
Part Number: 20-0331

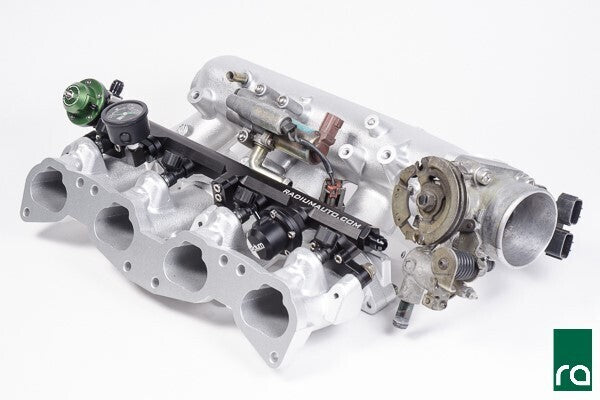

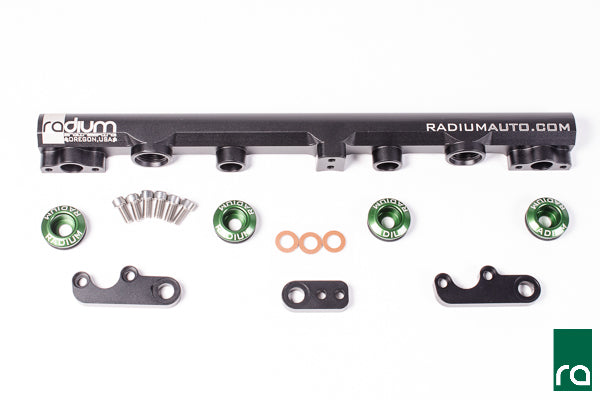

The Radium SR20VE Fuel Rail converts the OEM side-feed injector setup to top feed, allowing high-flow 14mm O-ring injectors to be used. Anodised billet aluminium injector seats press into the intake manifold, and the rail is extruded and CNC-machined from solid 6063 aluminium and rated for E85.
Short 34mm injectors are specified because taller injectors can cause bonnet clearance problems. The OEM insulating spacers plus Radium's thermal insulating mounting washers fully isolate the rail from intake manifold heat.
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
