Radium Engineering Radium Engineering Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block (2001-2003), product image, part 20-1062

Radium Engineering Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block (2001-2003)

Name: Radium Engineering Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block (2001-2003)
Brand: Radium Engineering
SKU: 20-1062
Price: 384.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-1062

$384.99 - $384.99

$384.99

$384.99 - $384.99

$384.99

Description

Radium Fuel Rail Plumbing Kit, GM Vortec 8100 L18 Big Block (2001-2003)

Application: GM Vortec 8100 (L18) 8.1L - 2001-2003 return-style fuel system, with Radium 20-0862 fuel rails
Part Type: Fuel rail plumbing kit
Part Number: 20-1062

The Radium 20-1062 Plumbing Kit provides the hardware for a plug-and-play installation of the Radium 20-0862 fuel rails on 2001-2003 Vortec 8100 vehicles with a return-style fuel system.

An SAE quick connect adapts to the OEM feed line and an 8AN crossover line routes around the rear of the engine to join both rails. A fuel pressure gauge and adjustable fuel pressure regulator mount directly to the LH rail, the OEM return SAE quick connector attaches to the regulator outlet, and 8AN ORB plugs are supplied for all unused ports.

Key Features

Plug and Play: Year-specific kit for the 20-0862 rails
Direct-Mount Regulator: Adjustable regulator mounts directly to the LH rail
Pressure Gauge: 0-100 psi gauge for calibration
OEM Connections: SAE adapters for the OEM feed and return lines
Heat Protection: Thermal insulation sleeve included

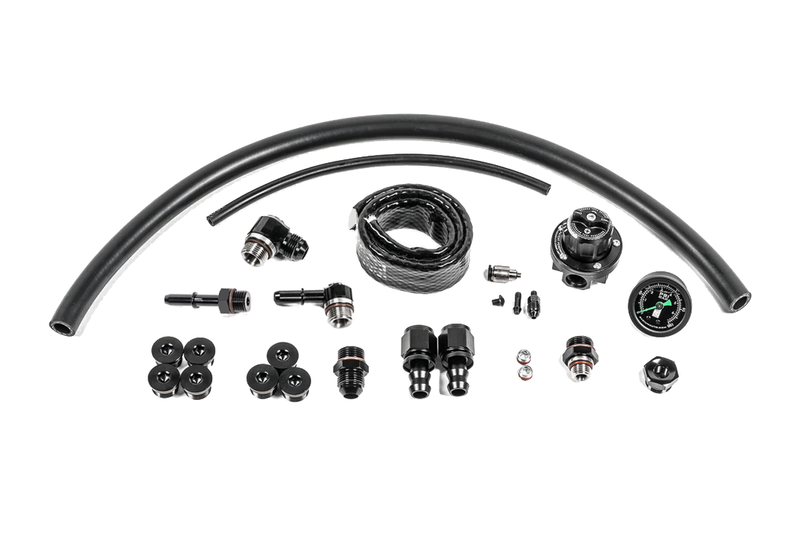

What's Included

0-100 psi fuel pressure gauge
Direct-mount adjustable fuel pressure regulator
5/32in vacuum hose
1/2in EFI hose
Thermal insulation sleeve
8AN ORB to 1/8in NPT fitting
8AN ORB plug (x7)
8AN ORB to 8AN male fitting
1/8in NPT plug (x2)
PushLok hose end (x2)
8AN ORB to 6AN ORB swivel union
6AN ORB to 5/16in SAE swivel
8AN ORB to 8AN male swivel
8AN ORB to 3/8in SAE swivel

Optional Parts

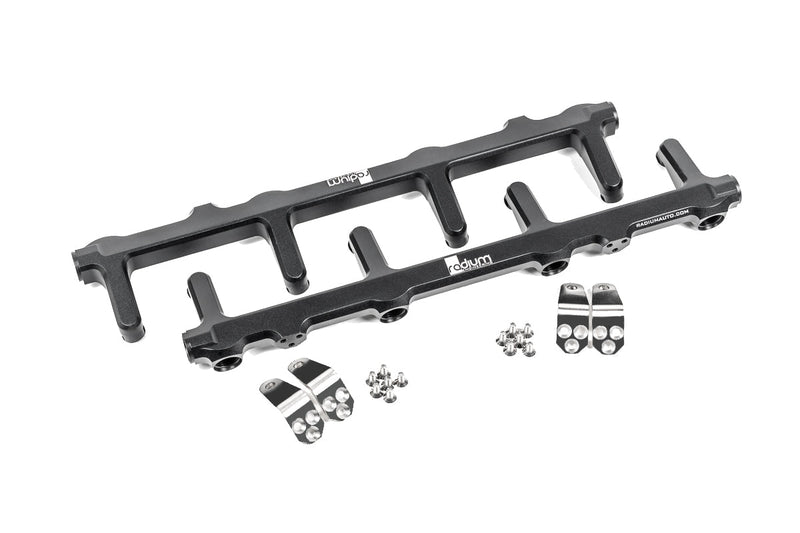

Radium Fuel Rails, GM Vortec 8100 L18 Big Block (20-0862) - the fuel rails this kit is designed for (required)

Important Notes

Requires Radium 20-0862 fuel rails (sold separately)

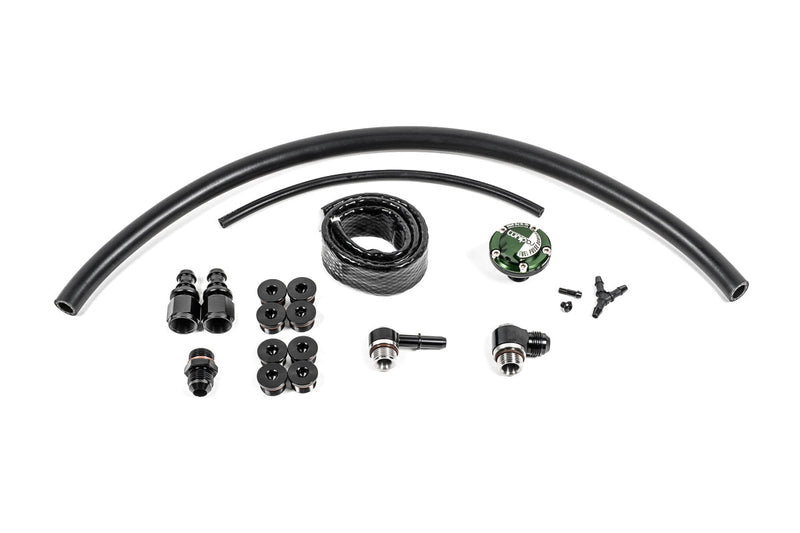

For 2001-2003 return-style fuel systems only - 2004-2010 returnless vehicles use 20-1162
Static fuel pressure target is 4 bar (58 psi) - set it with the regulator vacuum line disconnected and plugged, then re-check once the engine is warm

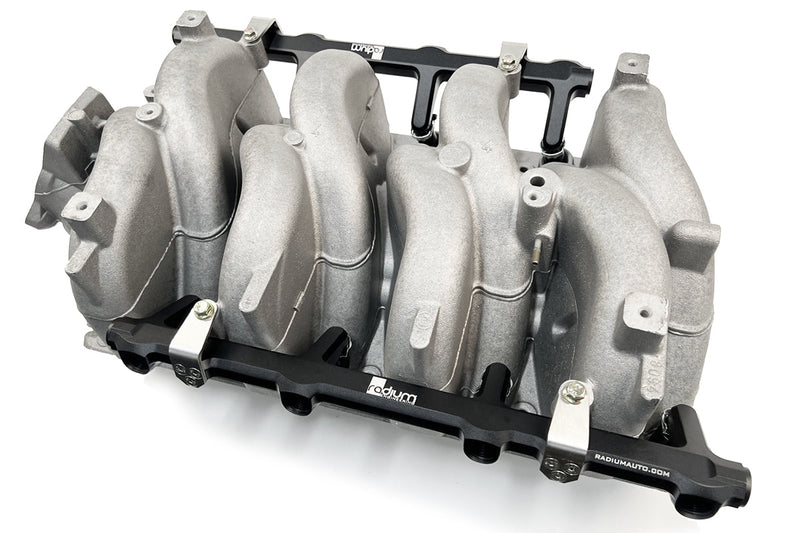

Install all fittings to the rails before mounting them to the intake manifold
Installation instructions are available in the Instructions tab

Vehicle Fitment

GM Vortec 8100 (L18) 8.1L - 2001-2003 model years (return-style fuel system)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- GM Vortec 8100 (L18) 8.1L - 2001-2003 model years (return-style fuel system)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
