Radium Engineering Radium Engineering Fuel Rail Plumbing Kit with Filter - Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09, product image, part 20-0629-03

Radium Engineering Fuel Rail Plumbing Kit with Filter - Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09

Name: Radium Engineering Fuel Rail Plumbing Kit with Filter - Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09
Brand: Radium Engineering
SKU: 20-0629-03
Price: 873.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0629-03

$838.99 - $873.99

$873.99

$838.99 - $873.99

$873.99

Quantity

Description

Radium Fuel Rail Plumbing Kit w/Filter - Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09

Application: 2008-2021 Subaru Impreza / WRX / WRX STI / Forester with the Radium Late Model Subaru fuel pump hanger
Part Type: Fuel hanger plumbing kit with high-flow fuel filter
Part Number: 20-0629-03, 20-0629-05

The Radium Fuel Hanger Plumbing Kit adds the post-pump filtration needed when running the Radium Late Model Subaru fuel pump hanger. The hanger does not use an internal filter, so an external filter is required.

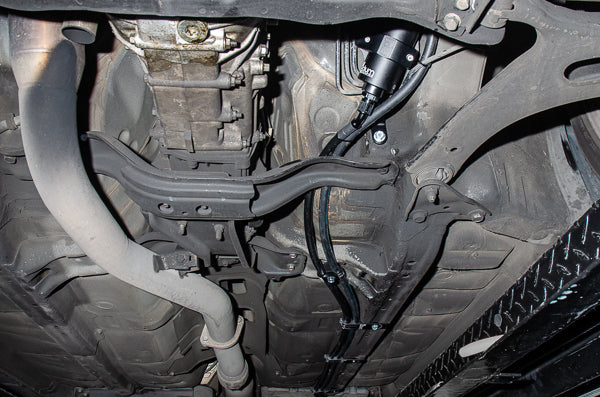

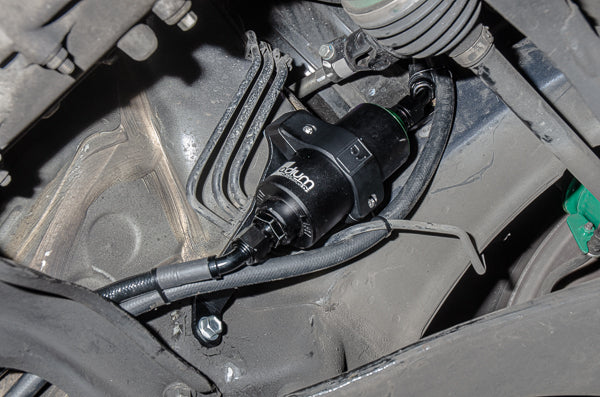

An 8AN PTFE feed line runs from the hanger to a Radium high-flow filter mounted under the car, then an 8AN rubber hose continues to the fuel rails. A 6AN rubber hose returns fuel from the regulator to the hanger. Billet aluminium retainers secure the lines and the filter bracket mounts to the chassis with no drilling or permanent modifications.

Key Features

Post-Pump Filtration: Radium high-flow fuel filter included
8AN Feed: PTFE line from hanger to filter, rubber hose from filter to rails
6AN Return: Rubber hose from the FPR back to the hanger

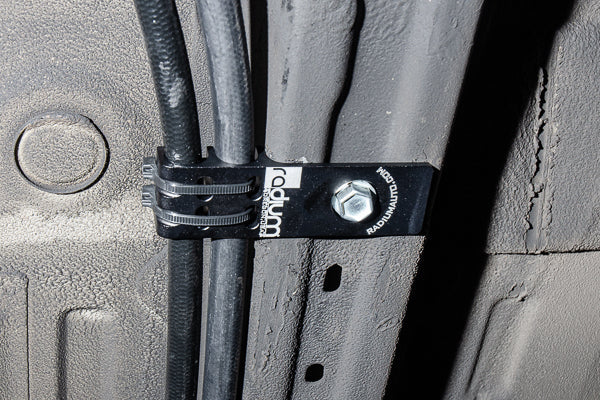

Billet Retainers: Aluminium line retainers included
No Drilling: Filter bracket mounts to the chassis without permanent modifications

Available Configurations

20-0629-03: Stainless filter element, 10 micron - reusable and cleanable
20-0629-05: Microglass filter element, 6 micron - finer filtration

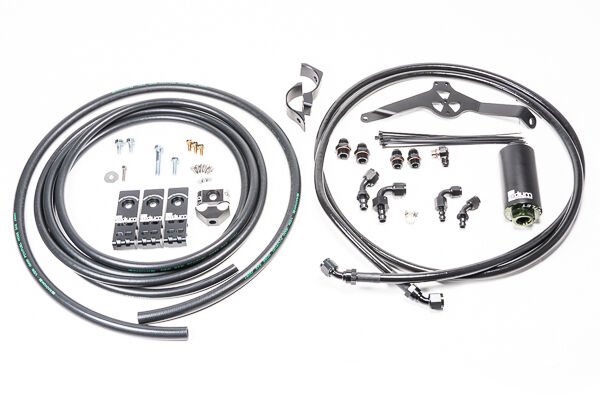

What's Included

Radium high-flow fuel filter (stainless or microglass - see configuration)
Filter chassis mounting bracket
8AN PTFE feed hose (hanger to filter)
8AN rubber hose (filter to fuel rails)
6AN rubber return hose (FPR to hanger)
Billet aluminium hose retainers
Fittings and installation hardware

Optional Parts

Radium Fuel Pump Hanger - Subaru WRX 08-21/STI 08-21/FXT 08-18/LGT 04-09 (20-0780-00 / 20-0781-00 / 20-0782-00) - the Radium hanger this kit plumbs
Radium Fuel Level Sensor Adaptor, Subaru WRX VA / Forester XT SJ (20-0850) - needed for hanger installs on 2015-2021 WRX and 2014-2018 Forester XT

Important Notes

For use with the Radium Late Model Subaru fuel pump hanger - the hanger's internal filter is not used, so this external filtration is required
Aftermarket fuel rails and an aftermarket fuel pressure regulator are recommended
Select the kit by filter type and vehicle year
Installation instructions are available in the Instructions tab

Vehicle Fitment

Subaru Impreza / WRX / WRX STI 2008-2014
Subaru WRX STI 2015-2021
Subaru Forester 2008-2014

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Subaru Impreza / WRX / WRX STI 2008-2014
- Subaru WRX STI 2015-2021
- Subaru Forester 2008-2014

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
