Radium Engineering Fuel Rail, Top Feed Conversion, Nissan SR20DET (S14/S15)

SKU 20-0359
Original price $506.99 - Original price $506.99
Original price
$506.99
$506.99 - $506.99
Current price $506.99
Fast & Free Shipping On orders over $150 (excl some bulky items)
Fitment Guarantee When using our parts finder
Local Support Australian based support 24/7

Radium Fuel Rail, Top Feed Conversion, Nissan SR20DET (S14/S15)

Application: Nissan Silvia / 200SX S14 and S15 (SR20DET)
Part Type: Top feed conversion fuel rail kit
Part Number: 20-0359

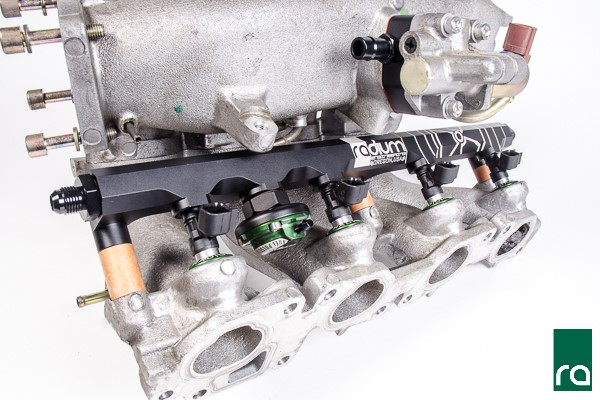

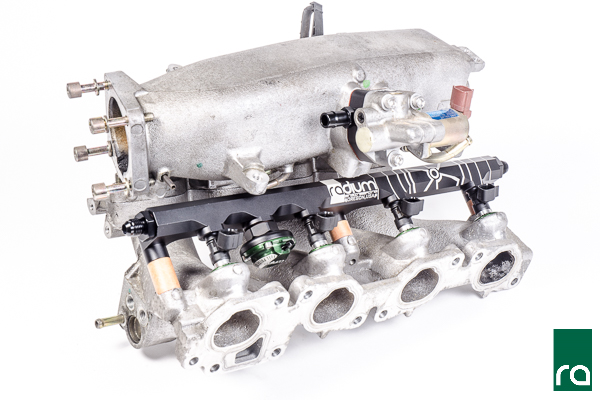

The Radium SR20DET fuel rail converts the S14 and S15 factory side-feed injector arrangement to top-feed, allowing high-flow aftermarket injectors to be used. It is CNC machined from solid 6061 aluminium and black anodised, with a 0.69" internal bore and three 8AN ORB ports.

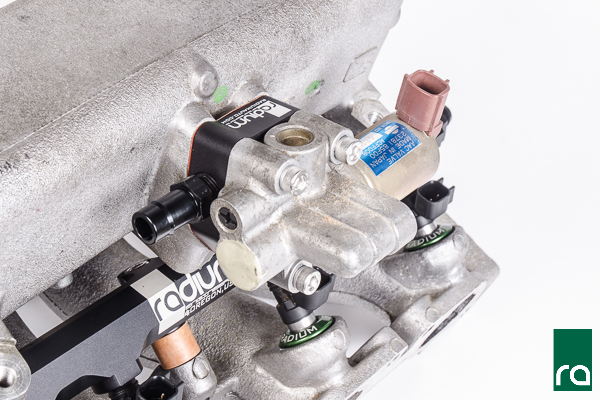

The rail mounts to the OEM intake manifold bosses on thermal insulating spacers, with anodised and laser-etched billet injector seats. The OEM two-bolt IACV bypass hard line is replaced by the included IACV spacer kit, and a barb adapter with rubber hose reroutes the charge pipe connection externally. Compatible with all fuel types including E85.


Key Features

  • Top Feed Conversion: Converts OEM side-feed injectors to top-feed
  • Large Bore: 0.69" internal bore
  • 8AN ORB Ports: Three ports for flexible plumbing
  • Thermal Isolation: Insulating spacers and washers
  • IACV Solution: IACV spacer, gasket and barb adapter replace the OEM bypass hard line
  • Fuel Compatibility: Compatible with all fuel types including E85

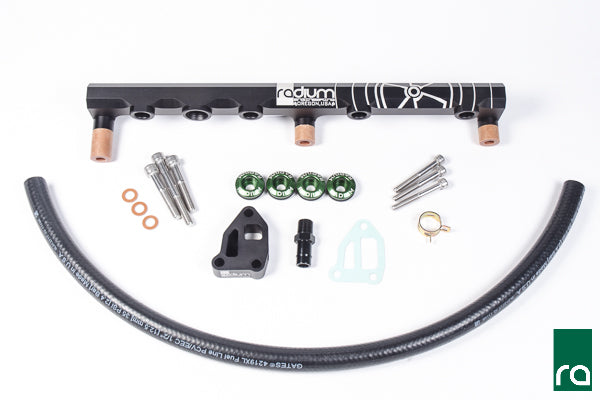

What's Included

  • Black anodised aluminium fuel rail
  • Thermal insulating spacers and washers
  • Green anodised aluminium 25mm injector seats
  • Black anodised aluminium IACV spacer
  • IACV gasket for SR20DET S14/S15
  • Black anodised aluminium IACV barb adapter
  • Rubber hose and OEM clamp for the IACV
  • Stainless steel M8x1.25 mounting bolts
  • Stainless steel M6x1 mounting bolts

Optional Parts

  • Radium IACV Gasket - Nissan S14/15 (SR20DET) (18-0014) - replacement IACV gasket

Important Notes

  • Fuel injectors are not included
  • Injectors must be 34mm tall with 14mm upper and lower O-rings - the short height avoids bonnet clearance issues (e.g. Injector Dynamics ID1050-XDS, ID1300-XDS, ID1700-XDS, ID2600-XDS in 34mm)
  • The S13 SR20DET uses a different Radium kit
  • Fittings must be selected for your application - allow clearance around the ports for regulators, gauges and pulse dampers
  • Installation instructions are available in the Instructions tab

Vehicle Fitment

  • Nissan Silvia / 200SX S14 - SR20DET
  • Nissan Silvia / 200SX S15 - SR20DET

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Supplier-listed applications:
- Nissan Silvia / 200SX S14 - SR20DET
- Nissan Silvia / 200SX S15 - SR20DET

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
