Radium Engineering Radium Engineering Fuel Surge Tank Install Kit (FST Not Incl) - Honda S2000 AP2 05-09, product image, part 20-0114

Radium Engineering Fuel Surge Tank Install Kit (FST Not Incl) - Honda S2000 AP2 05-09

Name: Radium Engineering Fuel Surge Tank Install Kit (FST Not Incl) - Honda S2000 AP2 05-09
Brand: Radium Engineering
SKU: 20-0114
Price: 602.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0114

$602.99 - $602.99

$602.99

$602.99 - $602.99

$602.99

Description

Radium Fuel Surge Tank Install Kit (FST Not Incl) - Honda S2000 AP2 05-09

Application: Honda S2000 (2006-2009)
Part Type: Fuel surge tank install kit (FST-R not included)
Part Number: 20-0114

This Radium kit includes everything needed to install a Radium fuel surge tank with a single 39mm fuel pump in a 2006-2009 Honda S2000. It is designed around the Radium FST-R, which has an integrated fuel pressure regulator for the S2000's returnless fuel system, so no external regulator is needed. Leaving the regulator's manifold-pressure barb disconnected emulates OEM fuel pressure if required.

Because the 2006-2009 S2000 has no low-pressure return line to the tank, the kit includes a billet barb adapter that routes excess fuel from the surge tank back into the main tank through the filler hose. The FST mounts in the boot behind the left seat using the factory threaded bosses - no drilling or modification, and 100% of the boot space remains usable.

Key Features

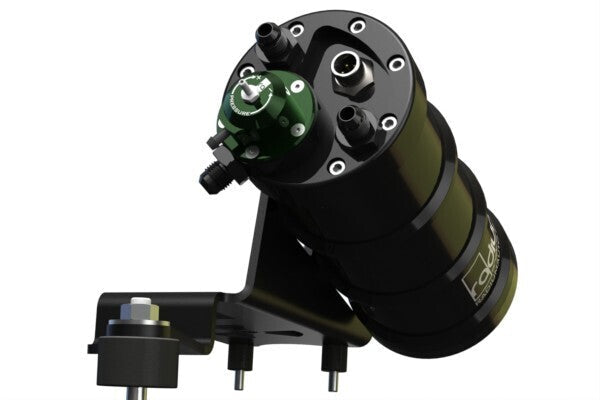

FST-R Ready: Designed for the Radium FST-R with integrated regulator for the returnless system

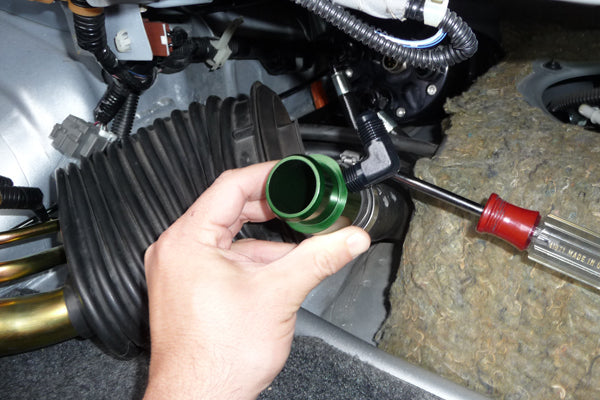

Filler Return Adapter: Billet barb adapter returns excess fuel via the filler hose

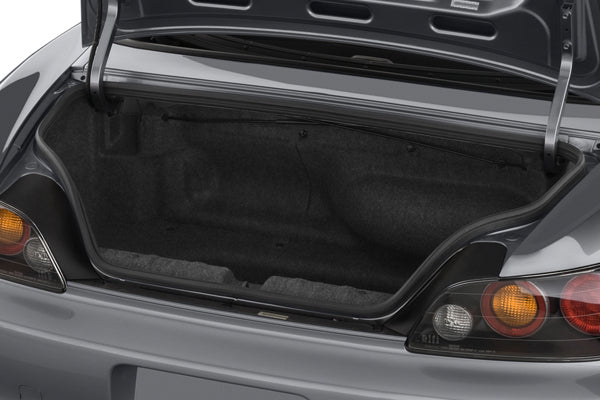

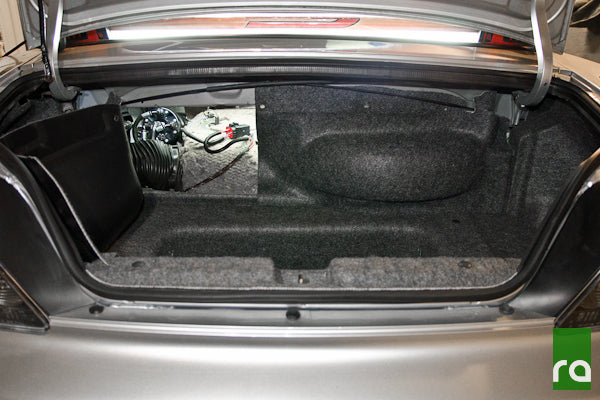

Hidden Mounting: Behind the left seat using factory threaded bosses - no drilling

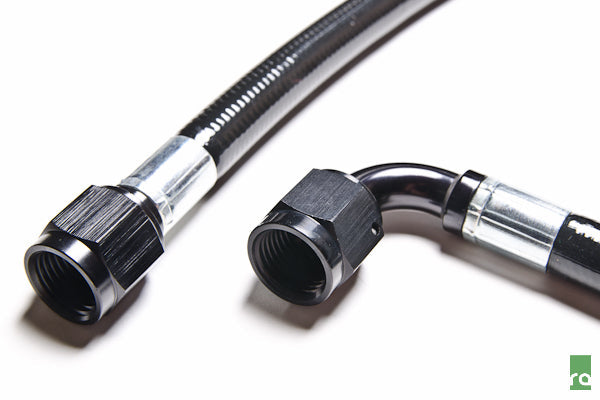

PTFE Hoses: Four pre-assembled 6AN PTFE hoses cut to length for the S2000
Isolated Bracket: Powder-coated aluminium bracket with three rubber isolation mounts
Solderless Wiring: Raychem solderless splices, weatherproof fuse and relay

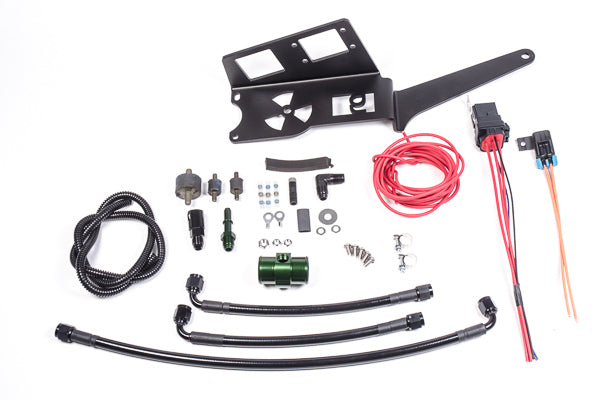

What's Included

4x Pre-assembled 3/8" (6AN) PTFE hoses
1x Aluminium mounting bracket with vibration isolators
AN and OEM-style adapter fittings
1x Billet fuel filler barb adapter
Stainless steel clamps
Stainless steel hardware
Wiring components with relay and fuse

Important Notes

Requires the Radium FST-R (regulated) surge tank, sold separately
Fuel surge tank and fuel pump are NOT included - both are sold separately
Not designed for the Radium MPFST
The main tank pump must keep the surge tank full - as a guide it should flow roughly 40-50% of the surge tank pump's flow, so a main tank pump upgrade may be required
The S2000 is a small car, so consider pump noise when choosing a surge tank pump
For the 2000-2005 S2000 use the 20-0094 kit
Installation instructions are available in the Instructions tab

Vehicle Fitment

Honda S2000 (2006-2009)

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Honda S2000 (2006-2009)

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
