Radium Large Fuel Vent Charcoal Canister Universal

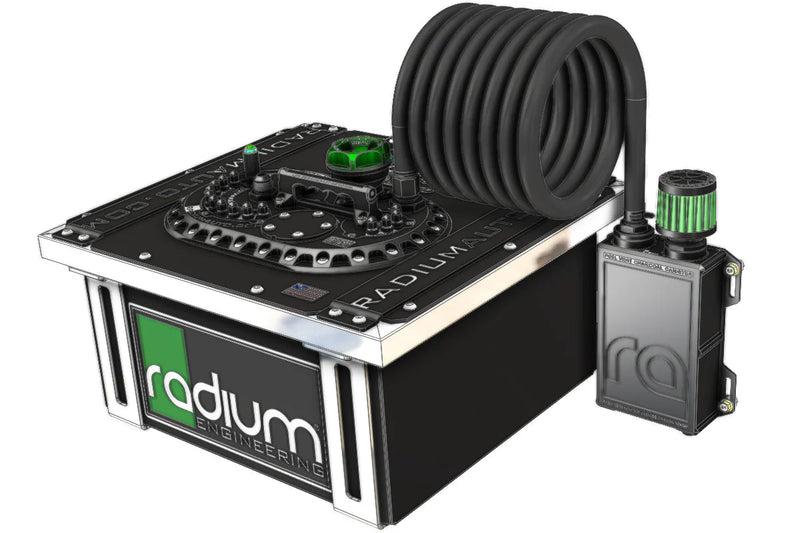

Application: Universal - EFI and carburetted fuel tank vent systems, incl. Radium fuel cell surge tanks
Part Type: Fuel vent charcoal canister (standard size)
Part Number: 20-1828-00, 20-1828-08, 20-1828-12
Radium fuel vent charcoal canisters filter fuel vapour odours from the fuel tank vent system on both EFI and carburetted vehicles. In Radium testing, a combustible gas detector read above 10,000 ppm at the vent without a canister and under 50 ppm with one fitted, while a dry break dump can flow test showed a negligible pressure drop.
The standard-size 20-1828 canister holds about five times more activated carbon than the compact version, so it needs less frequent servicing. Vibratory-packed activated carbon sits inside a 150 micron strainer and anodised aluminium baffle so no loose carbon can escape, and the canister can be recharged with a service kit.
Key Features
-
Vapour Filtration: Reduces outlet fuel vapour to under 50 ppm in Radium testing
-

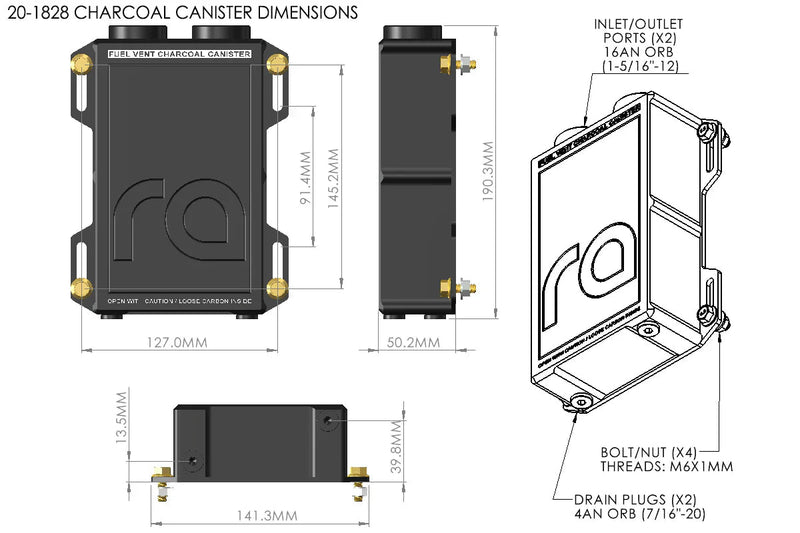

High Flow: 16AN ORB (1-5/16"-12) female ports, usable interchangeably as inlet or outlet
-
Drain Ports: Two 4AN ORB (7/16"-20) drain ports with preinstalled plugs - one can take a petcock drain kit
-
Contained Media: Activated carbon inside a 150 micron strainer and anodised aluminium baffle
-
Construction: CNC machined 6061 aluminium, type-II anodised
-
Serviceable: Recharge with fresh carbon and a new strainer using service kit 20-1828-SK
Available Configurations
-

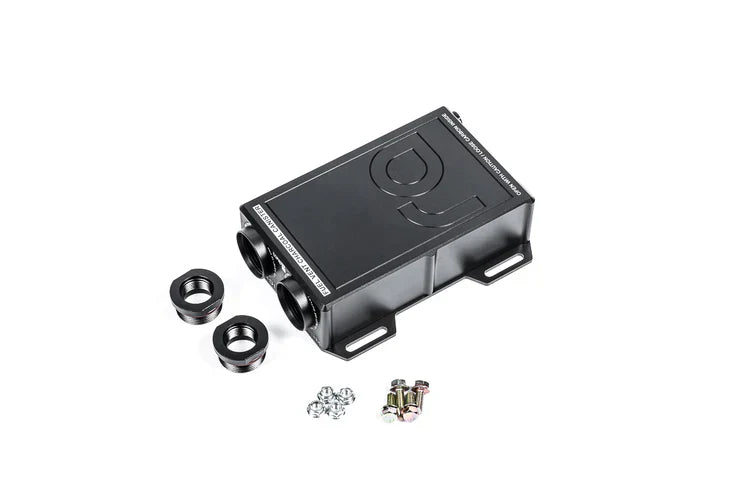

20-1828-00: Universal - includes two 16AN ORB male to 10AN ORB female couplers
-

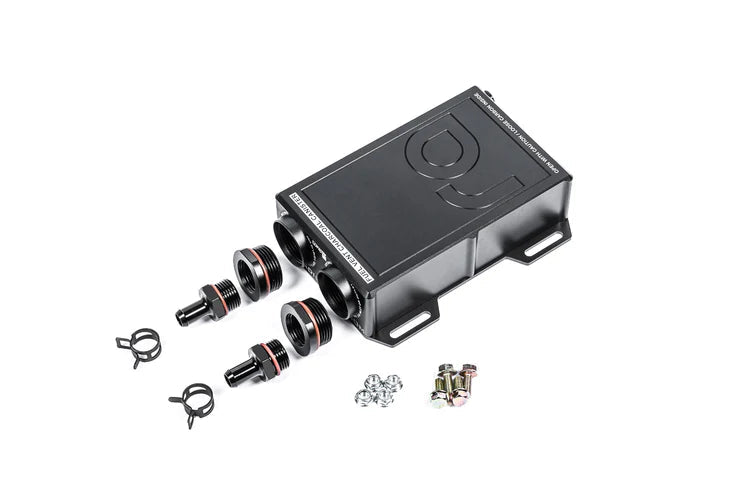

20-1828-08: Standard flow - for 1/2" fuel vent hose; pairs with vent kit 20-0484-08
-
20-1828-12: High flow - for 3/4" fuel vent hose; pairs with vent kit 20-0484-12, and the 3/4" barb accepts an air filter directly
Optional Parts
-

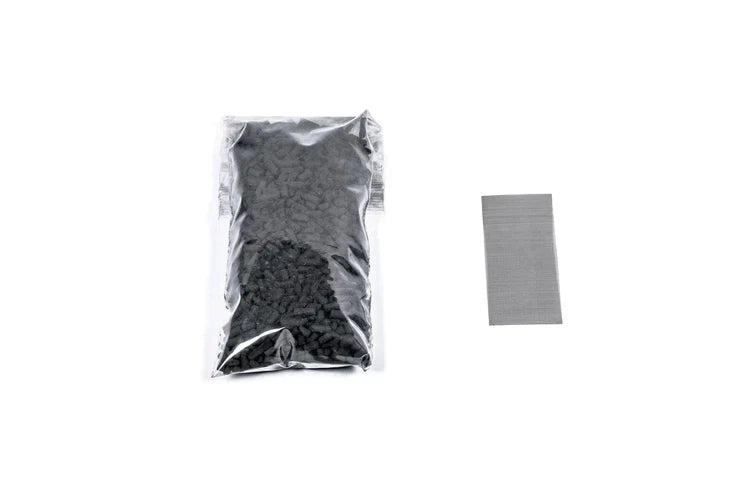

Radium Fuel Vent Charcoal Canister Service Kit Standard/Compact/Cannister (20-1828-SK) - recharges the canister
-
Radium Fuel Cell Vent Kit - 8AN (20-0484-08) - vent kit for the -08 canister
-
Radium Fuel Cell Vent Kit - 12AN (20-0484-12) - vent kit for the -12 canister
-
Radium Air Filter 0.75" ID (18-0042) - 3/4" air filter for the vent outlet
-
Radium Catch Can Petcock Drain Kit (20-0024) - fits one of the 4AN ORB drain ports
Important Notes
- A section of vent hose upstream of the air filter must sit higher than the fuel filler
- Vent line loops are recommended to keep debris out of the fuel system
- Mount the air filter at the rear of the vehicle, away from the exhaust
- Most classic car tanks use a 1/4" (6mm), 5/16" (8mm) or 3/8" (10mm) vent line
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Universal - see Application
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Universal - see Application
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
