Radium Engineering PCV Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET)

Name: Radium Engineering PCV Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET)
Brand: Radium Engineering
SKU: 20-0635-FL
Price: 401.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0635-FL

$401.99 - $401.99

$401.99

$401.99 - $401.99

$401.99

Description

Radium PCV Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET)

Application: Nissan Silvia / 200SX S15
Part Type: Fluid Lock PCV oil catch can kit
Part Number: 20-0635-FL

The Radium PCV Catch Can Kit for the S15 Silvia and 200SX separates oil and water condensation from crankcase gases before they reach the intake, helping keep the intake manifold and throttle body clean.

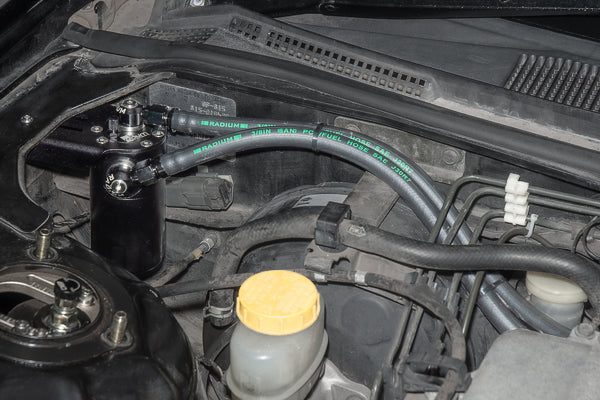

The PCV can runs inline between the PCV valve and the intake manifold, mounting to three OEM threaded bosses in the RH corner near the firewall. At idle, cruise and on deceleration it captures crankcase vapour, unburnt fuel and oil that manifold vacuum would otherwise draw into the intake.

Key Features

Closed Loop: Does not vent to atmosphere
Fluid Lock: Patented design prevents overfilling and traps collected fluid
Large Ports: 10AN ORB inlet and outlet, 4AN ORB drain
Two-Step Baffling: Separates oil from crankcase gases
O-Ring Sealed Dipstick: Check oil level without removing the can
Direct Fit: Nissan-specific bracket, no drilling required

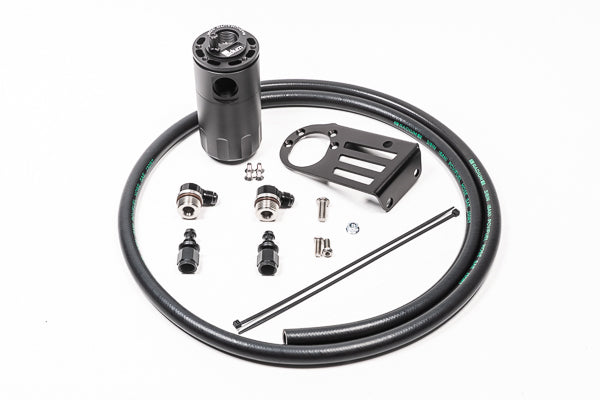

What's Included

Baffled Fluid Lock oil catch can
Nissan-specific mounting bracket
AN adapter fittings and hose ends
Stainless steel hardware
Radium hose

Optional Parts

Radium Fluid Lock CCV Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET) (20-0636-FL) - pair with the PCV kit for complete crankcase coverage
Radium Dual Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET) (20-0637-FL) - PCV and CCV kits combined
Radium Catch Can Petcock Drain Kit (20-0024) - drain the can without removing the lower reservoir, where there is room underneath

Important Notes

No additional inline check valve is required - Radium catch cans are pressure sealed
Radium recommends pairing this kit with the CCV Catch Can Kit (20-0636-FL)
Radium's Fluid Lock design (introduced 2022) uses a patented mechanism that prevents the can from being overfilled and holds collected fluid until it is emptied
There is no fixed emptying interval - start checking the dipstick after 3-4 weeks of driving and adjust from there; PCV cans typically fill faster than CCV cans
Installation instructions are available in the Instructions tab

Vehicle Fitment

Nissan Silvia S15
Nissan 200SX S15

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Nissan Silvia S15
- Nissan 200SX S15

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
