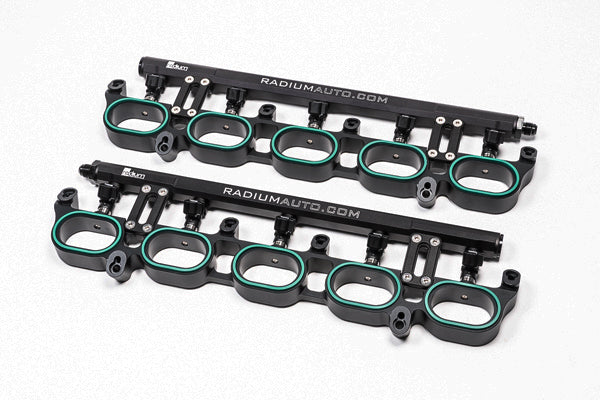

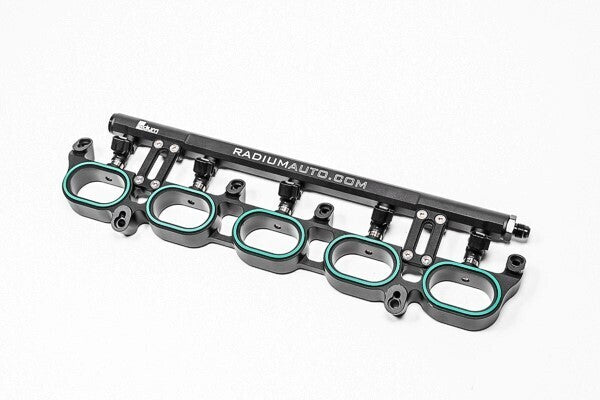

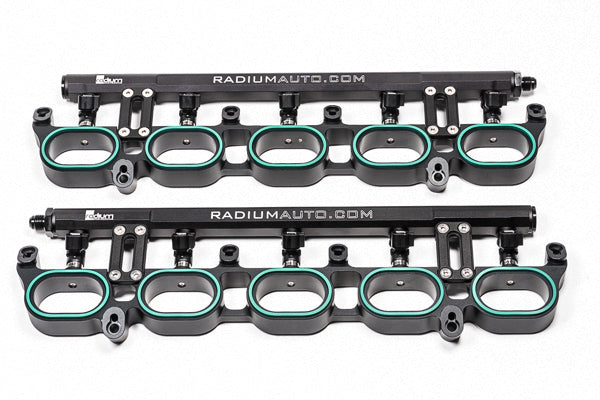

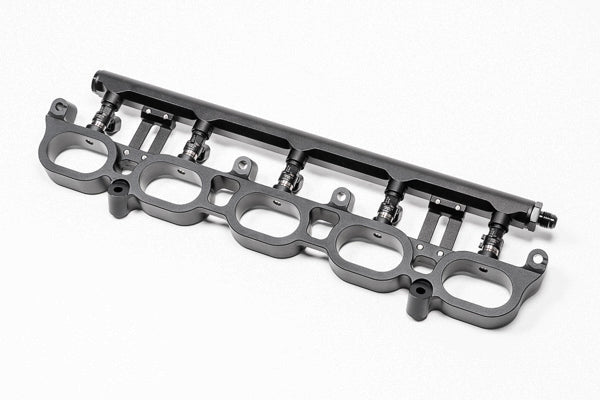

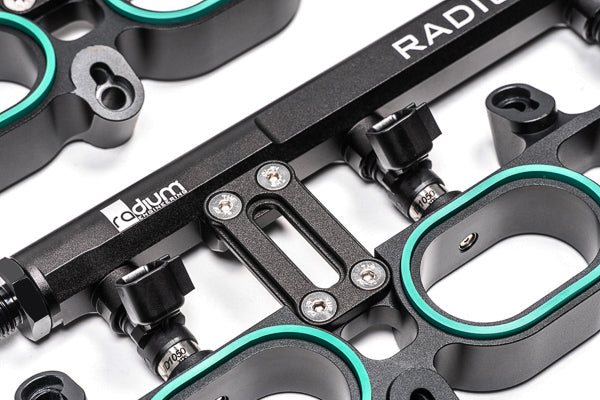

Radium Engineering Radium Engineering Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13, product image, part 20-0865

Radium Engineering Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13

Name: Radium Engineering Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13
Brand: Radium Engineering
SKU: 20-0865
Price: 1746.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-0865

$1,746.99 - $1,746.99

$1,746.99

$1,746.99 - $1,746.99

$1,746.99

Description

Radium Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13

Application: Audi R8 Type 42 V10 (2006-2015) and Lamborghini Gallardo LP 5.2L V10 (2008-2013)
Part Type: Port injection kit (adapter plates and fuel rails)
Part Number: 20-0865

The Radium Port Injection Kit (PIK) mounts between the intake manifold and the lower cylinder head runners, adding port injectors to supply the extra fuel needed by highly modified 5.2L V10 engines. It supplements the OEM direct injection system rather than replacing it.

The kit includes anodised aluminium adapter plates and big-bore fuel rails. The adapter plates can also be used on their own as an intake manifold spacer without the fuel rails. It is compatible with all fuel types, including E85 and other alcohol blends.

Key Features

Supplements DI: Adds port injection alongside the OEM direct injection system
Big-Bore Rails: Anodised aluminium fuel rails
Adapter Plates: Fit between the intake manifold and lower cylinder head runners
Spacer Option: Plates can be used as an intake manifold spacer without the rails
All Fuels: Compatible with E85 and other alcohol blends

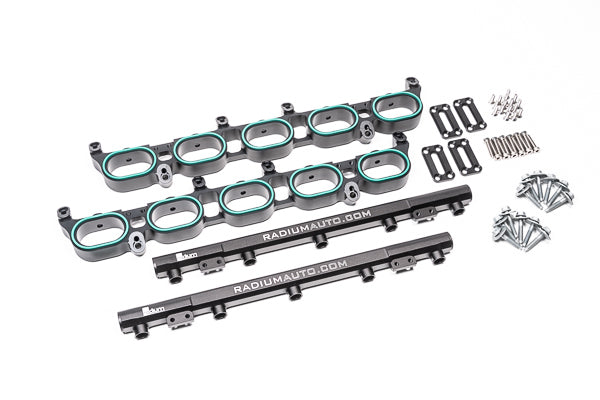

What's Included

Anodised aluminium PIK adapter plates
Big-bore fuel rails
Fuel rail mounts
Intake manifold gaskets
Stainless steel hardware

Optional Parts

Radium Engineering Port Injection Plumbing Kit - Lamborghini Gallardo LP 550/560/570 (2008-2013) (20-0967-03 / 20-0967-05) - independent port fuel system plumbing for the Gallardo LP (not R8)
Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan (20-0860) - recommended for high-horsepower port injection and to feed the 20-0967 system
Injector Dynamics XDS Fuel Injectors Lamborghini 1050 / 1300 / 1750 / 2600cc (ID1050/1300/1700/2600-XDS .34.14.14) - direct-fit port injectors suggested by Radium
Radium 14-0427 2AN ORB Plug, Round Internal Hex (14-0427) - plugs the adapter ports when used as a spacer only

Important Notes

Not included: fuel injectors, port fittings, fuel hose, wiring, injector controller and charge pipe
Injectors must be top feed with 14mm upper and lower O-rings and a short 34mm body
The spacer effect may require a minor throttle body coupler adjustment
Not compatible with the 1st generation Gallardo 5.0L, or the R8 Type 4S / Huracan upper or lower intake manifold
Installation instructions are available in the Instructions tab

Vehicle Fitment

Audi R8 Type 42 (2006-2015), all Gen 1 V10 trims
Lamborghini Gallardo LP550-2 (2008-2013), all trims
Lamborghini Gallardo LP560-4 (2008-2013), all trims
Lamborghini Gallardo LP570-4 (2008-2013), all trims
