Radium Engineering Radium Engineering Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW), product image, part 20-1120

Radium Engineering Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW)

Name: Radium Engineering Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW)
Brand: Radium Engineering
SKU: 20-1120
Price: 319.0 AUD
Availability: InStock

by Radium Engineering

SKU 20-1120

$319.00 - $319.00

$319.00

$319.00 - $319.00

$319.00

Description

Radium Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW)

Application: Mazda / Eunos Cosmo JC (1990-1995) - 20B-REW
Part Type: Top feed conversion primary fuel rail
Part Number: 20-1120

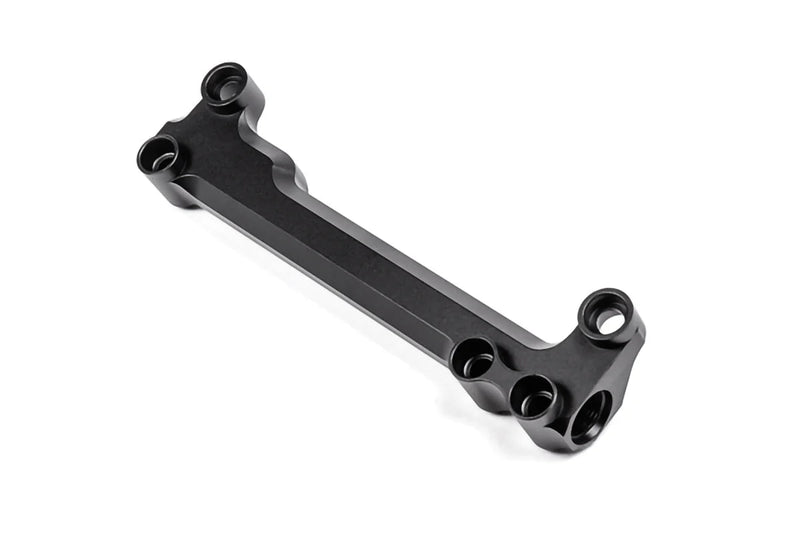

The Radium Engineering high-flow primary fuel rail suits the 20B-REW three-rotor engine found in the 1990-1995 Mazda/Eunos Cosmo. The aluminium rail is anodised black for compatibility with all popular fuel types including E85, and its large internal bore supports all necessary engine power requirements.

Thermal insulating spacers and washers are included with stainless steel hardware to help prevent heat conducting into the fuel. The included 14mm lower injector seats are designed to work with or without the OEM diffusers in place, and use FKM O-rings suitable for boosted applications. Three 8AN ORB ports are provided - the extra centre port accepts accessories such as the OEM fuel temperature sensor, a pressure transducer or a Radium fuel pulse damper.

Key Features

Large Internal Bore: Supports all necessary engine power requirements
Billet Aluminium: Anodised black, compatible with all popular fuels including E85
8AN ORB Ports: Three ports including a centre accessory port
Thermal Insulation: Insulating spacers and washers with stainless steel hardware
Injector Seats: 14mm lower seats work with or without the OEM diffusers
Boost Ready: FKM O-rings suitable for boosted applications

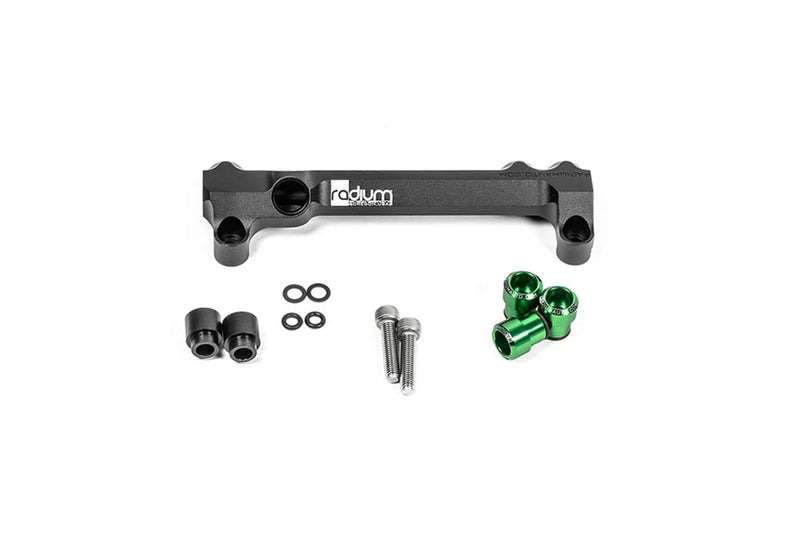

What's Included

Anodised billet aluminium fuel rail
Anodised billet aluminium injector seats
Thermal spacers
Mounting hardware

Optional Parts

Radium 14-0421 8AN ORB to M12x1.5mm Female Fitting (14-0421) - fits the OEM fuel temperature sensor to the centre port

Important Notes

Fuel injectors are NOT included
Requires universal top feed injectors 34mm tall with 14mm O-rings - e.g. Injector Dynamics 1050-XDS (1050.34.14.14), 1300-XDS (1300.34.14.14), 1700-XDS (1700.34.14.14) or 2600-XDS (2600.34.14.14)
8AN ORB adapter fittings are sold separately and must be selected to suit your application
Allow ample space around the ports for regulators, gauges and pulse dampers - check clearance using Radium's dimensional drawings
Radium part 20-1120 replaces the earlier 20-0464
Installation instructions are available in the Instructions tab

Vehicle Fitment

Mazda / Eunos Cosmo JC (1990-1995) - 20B-REW

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Mazda / Eunos Cosmo JC (1990-1995) - 20B-REW

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
