Radium Engineering Remote Mount, SVF, Swing Valve Filler, 2.25"

Name: Radium Engineering Remote Mount, SVF, Swing Valve Filler, 2.25"
Brand: Radium Engineering
SKU: 20-1203
Price: 401.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-1203

$401.99 - $401.99

$401.99

$401.99 - $401.99

$401.99

Description

Radium Remote Mount, SVF, Swing Valve Filler, 2.25"

Application: Universal - remote mounted fuel filler for fuel cells or tanks using 2.25in ID filler hose
Part Type: Remote mount swing valve fuel filler (SVF)
Part Number: 20-1203

A remote mounted fuel filler is not located directly on the fuel tank or fuel cell but somewhere else on the vehicle, such as a guard. The system has three main parts: the remote filler (the housing and cap on the outside of the vehicle), the remote fill neck (the barb or AN connection on the fuel cell or FCST) and the filler hose that joins them.

The SVF is a capless filler that mimics OEM designs: the swing valve opens when a nozzle is inserted, so there is nothing to unscrew, and a press-fit dust cap is tethered to the flange. The 30mm opening accepts petrol and diesel nozzles, and the outlet is a machined barb for 2.25in filler hose.

Key Features

Capless Swing Valve: Opens on nozzle insertion; 30mm opening accepts petrol and diesel nozzles
Outlet: Machined hose barb for 2.25in ID filler hose, O-ring sealed
Swappable Outlet: Outlet adapter can be changed by removing six screws (adapters sold separately)
Seals: FKM O-ring on the swing valve; ozone and flame resistant gasket

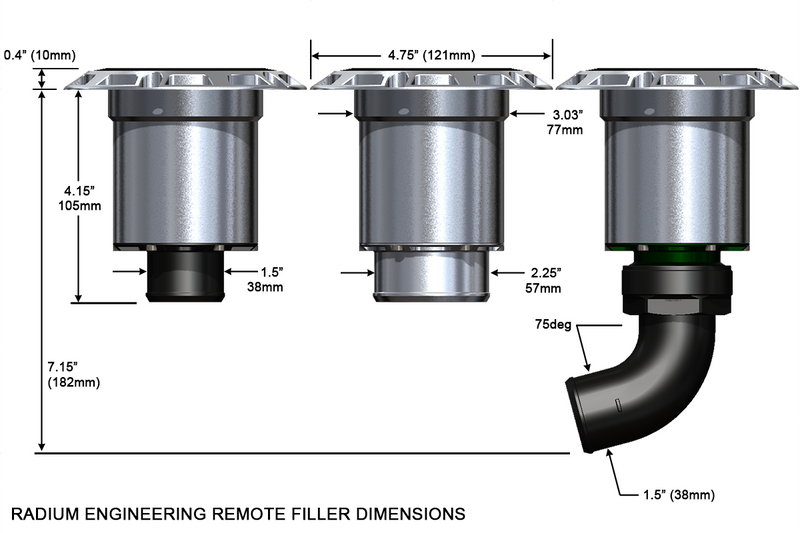

Mounting: 77mm (3.03in) hole, five stainless M5 bolts on a 108mm (4.25in) PCD with anodised aluminium nut ring
Flange: 121mm (4.75in) OD
Height: 104mm (4.1in)
Interchangeable Caps: Cap threads match the Radium dry break and standard caps
Dust Cap: Press-fit, tethered to the flange

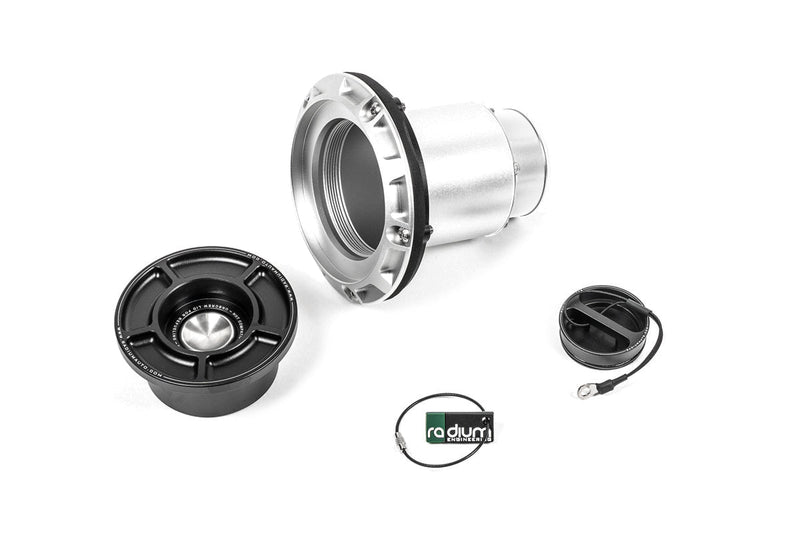

What's Included

Swing valve cap
Flanged fill neck for 2.25in ID hose
Gasket
Nut ring
M5 bolts
Tether components

Optional Parts

Radium Dry Break, 1.5In, Female, Vented (20-0549-V) - dry break upgrade
Radium Remote Mount, SVF, Swing Valve Filler, Cap (20-1548) - replacement swing valve cap
Radium Remote Mount Filler Adapter, 1.5" (20-1015) - outlet adapter for 1.5in hose
Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) - 24AN outlet adapter

Important Notes

Fill necks, hose and other tank-side accessories are not included
Mount on a relatively flat surface higher than the fuel tank fill point; Radium's instructions call for a 77mm (3.03in) hole and five 6mm (1/4in) bolt holes
Can be upgraded to a dry break filler with the Radium 20-0549-V
Installation instructions are available in the Instructions tab

Vehicle Fitment

Universal - see Application

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Universal - see Application

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
