Application: Universal - motorsport vehicles running two Radium RA-Series fuel cells with a Radium FCST-X
Part Type: Saddle tank (dual fuel cell) conversion kit
Part Number: 20-0664

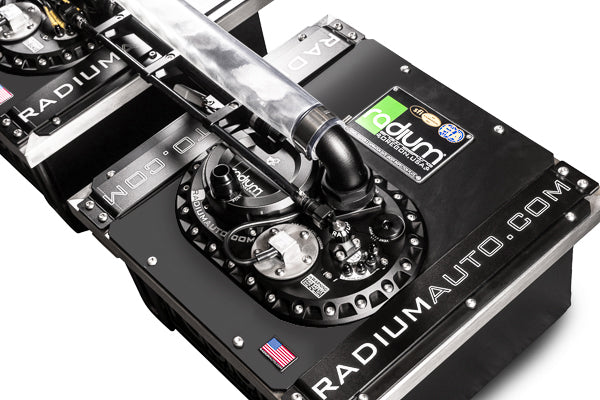

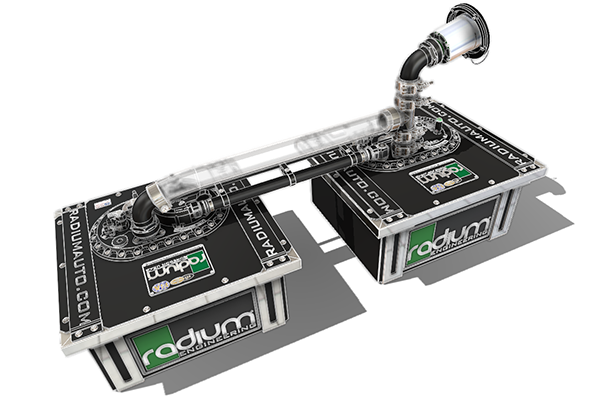

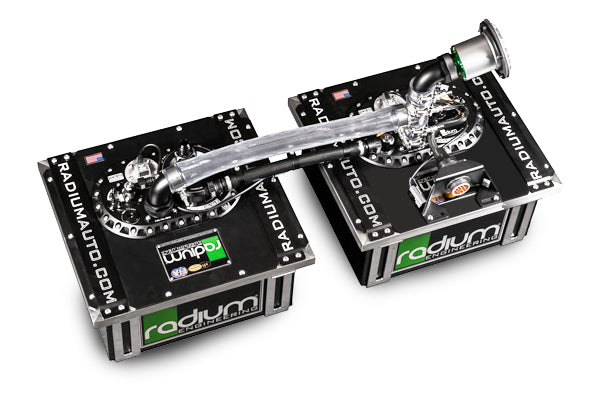

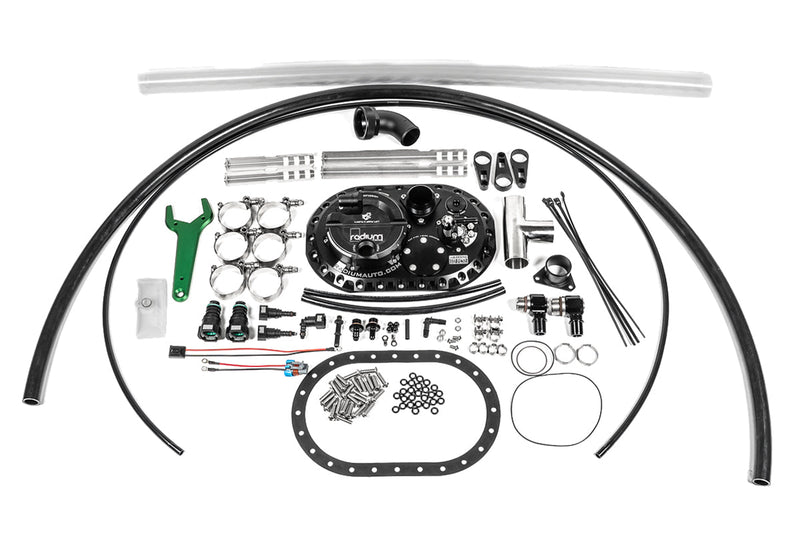

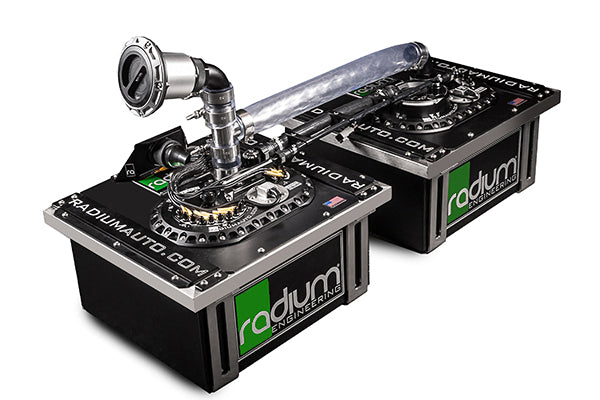

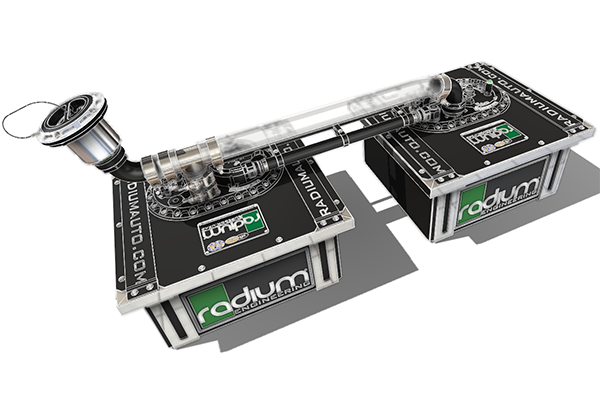

The Radium 20-0664 Saddle Tank Fuel Cell Conversion Kit is a fuel transfer system that lets two motorsport fuel cells run together in one vehicle, increasing fuel capacity while improving weight distribution. The cells can be positioned for balance and a low centre of gravity, mounted transversely or longitudinally - fittings and hoses for both layouts are included.
The FCST-X surge tank sits in the active cell with its rollover valve removed, so its vent port becomes an overflow passing air and fuel across to the passive cell. The fill plumbing TEE orientation sets which cell fills first (the active cell must fill just before the passive cell) and which side the fender filler goes on. The system works with both standard and dry break refuelling.
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
