Radium Side Feed Conversion Fuel Rail Kit - Nissan Silvia/180SX S13 (SR20DET)
Application: Nissan S13 SR20DET (RWD intake manifold) - Silvia, 180SX, 200SX, 240SX
Part Type: Top feed conversion fuel rail
Part Number: 20-0558
The Radium Engineering Top Feed Conversion Fuel Rail for the Nissan SR20DET converts the factory side-feed injection to top-feed injectors. The CNC-machined rail has a 17.5mm (0.69in) internal bore and high-flow ports that accept a wide range of adapter fittings, with a black satin anodised finish safe for all gasoline and alcohol blends.

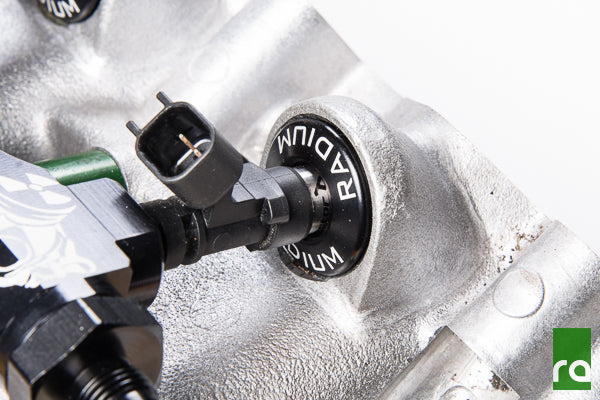

The rail bolts to the factory fuel rail mounting points. Billet aluminium injector seats - anodised and laser etched - press into the intake manifold to seal the top-feed injectors. Designed for the S13 SR20DET RWD intake manifold, it may also suit some aftermarket intake manifolds that use the OEM fuel rail.
Key Features
-
Top Feed Conversion: Converts side-feed SR20DET to top-feed injectors
-
Large Bore: 17.5mm (0.69in) internal bore
-
8AN ORB Ports: Two end ports plus a bottom port, all 8AN ORB female
-
Pulse Damper Port: Extra centre-bottom 8AN ORB port for an FPD-R or plug
-
Gauge Port: 1/8in NPT female port on top
-
Factory Mounting: Bolts to the OEM fuel rail mounting points

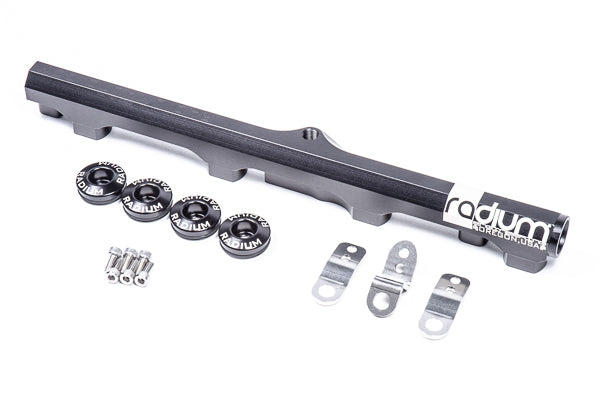

What's Included
- Black anodised aluminium fuel rail
- Black anodised aluminium 30mm injector seats
- Stainless steel mounting brackets
- Stainless steel mounting bolts
Optional Parts
-
Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) - FPD-R fuel pulse damper for the centre-bottom port
-
Radium FPR Adaptor 8AN ORB, 11mm Bore, 32mm Spacing, M5 (20-0303) - FPR adaptor needed if reusing the factory pressure regulator (per Radium instructions)
Important Notes
- Injectors are not included and not sold by Radium - use a 34mm tall universal top-feed injector with 14mm upper and lower O-rings (e.g. Injector Dynamics 1050/1300/1700/2600-XDS in .34.14.14 form)
- Short injectors are specified because taller injectors may cause bonnet clearance issues
- Fittings are not included
- Fittings must be selected to suit the application and hose type; allow ample clearance around the ports for larger accessories such as regulators, gauges and pulse dampers
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Nissan Silvia / 180SX / 200SX / 240SX S13 (SR20DET, RWD intake manifold)
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Nissan Silvia / 180SX / 200SX / 240SX S13 (SR20DET, RWD intake manifold)
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
