Radium Side Feed Conversion Fuel Rail - Toyota 1JZ-GTE non-VVTi
Application: Toyota 1JZ-GTE - non VVT-i only
Part Type: Top feed conversion fuel rail (converts OEM side feed to top feed)
Part Number: 20-0235
This Radium fuel rail converts the OEM side feed injector arrangement on the non VVT-i Toyota 1JZ-GTE to top feed, allowing high-flow top feed injectors to be used.
Manufactured with a large 0.69in (17.5mm) internal bore, the rail is CNC machined from 6063 aluminium, media blasted, black anodised and laser etched, and is compatible with all fuel types including E85. Green anodised injector seats suit 14mm O-rings, and the anodised mounting feet reuse the OEM Toyota thermal insulating spacers.
Key Features
-

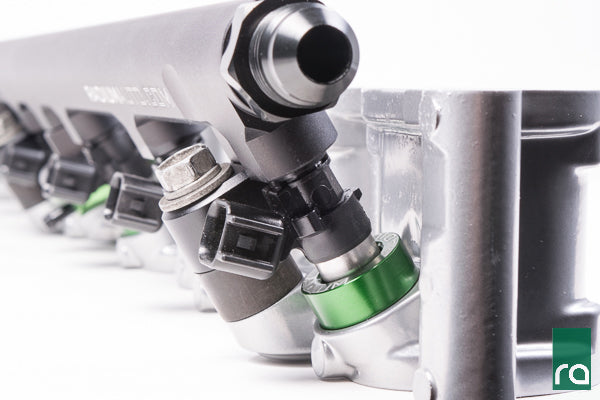

Side to Top Feed Conversion: Run high-flow top feed injectors on the 1JZ-GTE
-
Large Bore: 0.69in (17.5mm) internal bore
-
8AN ORB Ports: Rail ports tapped 8AN ORB
-
Tall & Short Feet: Suit 48mm or 34mm injectors with 14mm upper and lower O-rings
-

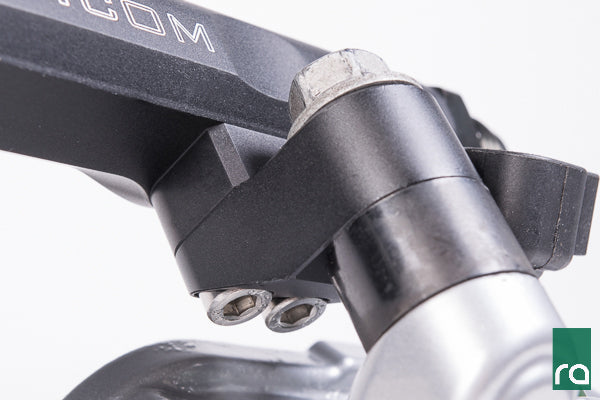

OEM Thermal Spacers: Mounting feet reuse the factory insulating spacers

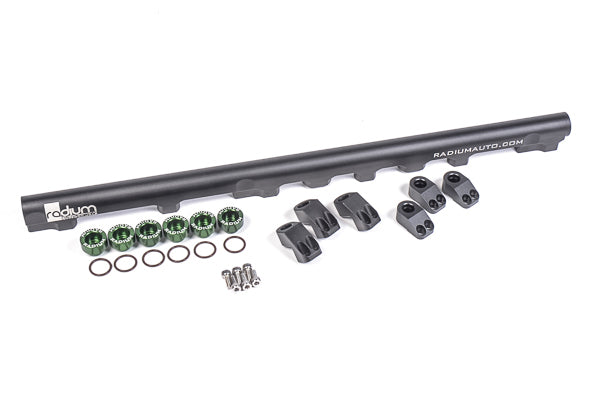

What's Included
- 1x Black anodised, laser-etched aluminium fuel rail
- 2 sets of black anodised aluminium mounting feet (tall and short)
- Stainless steel mounting feet bolts

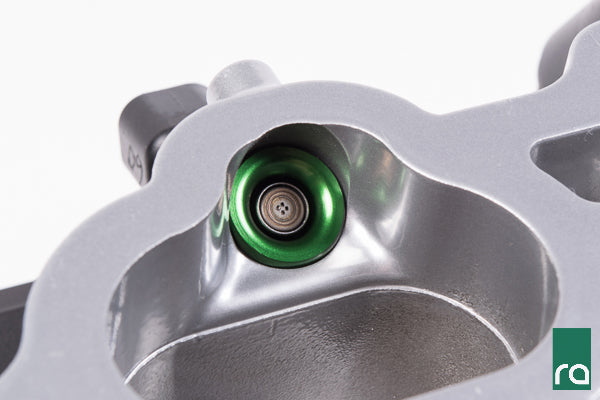

- Green anodised aluminium injector seats (with O-rings)
Optional Parts
-

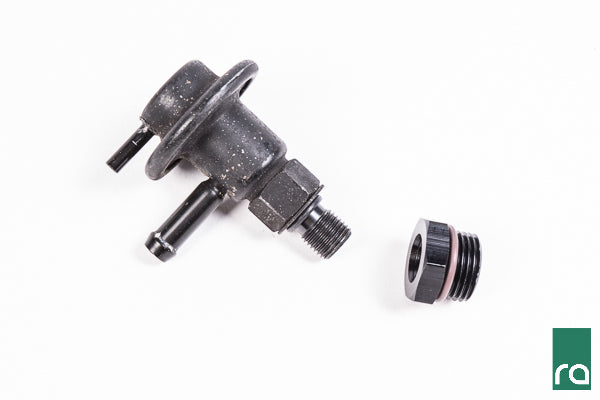

Radium 14-0285 8AN ORB to M12x1.25mm Female Fitting (14-0285) - required to reuse the OEM fuel pressure regulator
Important Notes
- Suits non VVT-i 1JZ-GTE engines only - not compatible with VVT-i 1JZ-GTE
- Fuel injectors are not included
- Use the tall feet with 48mm injectors or the short feet with 34mm injectors - both with 14mm upper and lower O-rings
- Injector Dynamics examples - tall feet (48mm): ID1050-XDS (1050.48.14.14), ID1300-XDS (1300.48.14.14), ID1700-XDS (1700.48.14.14), ID2600-XDS (2600.48.14.14); short feet (34mm): ID1050-XDS (1050.34.14.14), ID1300-XDS (1300.34.14.14), ID1700-XDS (1700.34.14.14), ID2600-XDS (2600.34.14.14)
- Fittings are not included - select fittings to suit your application and allow space around the ports for regulators, gauges and pulse dampers
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Toyota 1JZ-GTE non VVT-i engines
- Toyota Supra MKIII - 1JZ-GTE
- Toyota Soarer - 1JZ-GTE (non VVT-i)
- Toyota Chaser / Cresta / Mark II - 1JZ-GTE (non VVT-i only)
- Excludes all VVT-i 1JZ-GTE engines
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Toyota 1JZ-GTE non VVT-i engines
- Toyota Supra MKIII - 1JZ-GTE
- Toyota Soarer - 1JZ-GTE (non VVT-i)
- Toyota Chaser / Cresta / Mark II - 1JZ-GTE (non VVT-i only)
- Excludes all VVT-i 1JZ-GTE engines
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
