Radium Engineering Top Feed Conversion Fuel Rail, Mazda 26B Primary

Name: Radium Engineering Top Feed Conversion Fuel Rail, Mazda 26B Primary
Brand: Radium Engineering
SKU: 20-1126
Price: 524.99 AUD
Availability: InStock

by Radium Engineering

SKU 20-1126

$524.99 - $524.99

$524.99

$524.99 - $524.99

$524.99

Description

Radium Top Feed Conversion Fuel Rail, Mazda 26B Primary

Application: Mazda 26B 4-rotor - primary injectors
Part Type: Top feed conversion primary fuel rail
Part Number: 20-1126

The Radium Engineering 20-1126 is a high-flow primary fuel rail for the Mazda 26B 4-rotor engine. Thermal insulating spacers and washers are supplied with stainless steel hardware to stop heat from the engine conducting into the fuel.

The included 14mm lower injector seats were designed to work with or without the OEM diffusers in place, and their FKM O-rings make them suitable for boosted applications. The green injector seats extend the O-ring past the air-assist injector holes in the iron. The rail has four 8AN ORB ports - the extra centre ports allow accessories such as the OEM fuel temperature sensor (using 14-0421), a pressure transducer or a Radium fuel pulse damper.

Key Features

Top Feed Conversion: High-flow primary rail for universal 34mm, 14mm O-ring top feed injectors
Thermal Isolation: Insulating spacers and washers with stainless steel hardware
Injector Seats: 14mm lower seats work with or without the OEM diffusers
Boost Ready: FKM O-rings on the injector seats suit boosted applications
Air-Assist Sealing: Green seats extend the O-ring past the air-assist injector holes in the iron
4 Ports: Four 8AN ORB ports, including centre ports for sensors, transducers or dampers

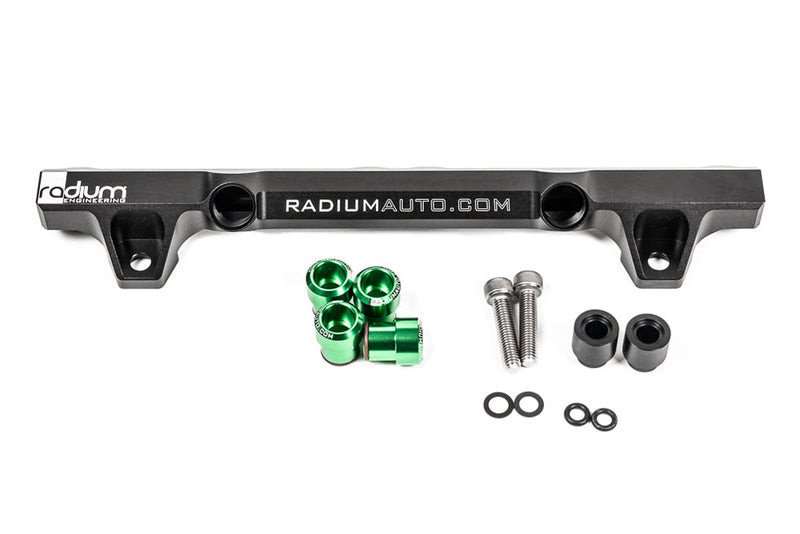

What's Included

Anodised billet aluminium fuel rail
Anodised billet aluminium injector seats
Thermal spacers
Mounting hardware

Optional Parts

Radium 14-0421 8AN ORB to M12x1.5mm Female Fitting - fits the OEM fuel temperature sensor into one of the centre 8AN ORB ports
Radium Fuel Pressure Gauge 0-100psi (20-0029) - 0-100psi gauge Radium offers for monitoring rail pressure

Important Notes

Fuel injectors are NOT included - universal injectors with a 34mm height and 14mm O-rings are required
Injector Dynamics examples: 1050-XDS, 1300-XDS, 1700-XDS and 2600-XDS (34mm, 14mm O-ring versions)
Fittings are sold separately
Fittings must be selected to suit the application - allow ample clearance around the ports for regulators, gauges and pulse dampers
Installation instructions are available in the Instructions tab

Vehicle Fitment

Mazda 26B 4-rotor engine - primary injectors

For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.

Compatibility

Supplier-listed applications:
- Mazda 26B 4-rotor engine - primary injectors

Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
