Radium Engineering Remote Mount Fuel Filler - 1.5" Vented
Application: Universal - remote mount, connects to 1.5in (38mm) ID filler hose
Part Type: Remote mount vented standard fuel filler, 1.5in
Part Number: 20-1005-V

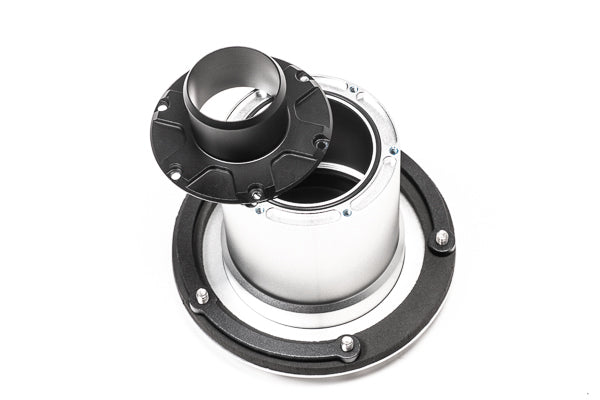

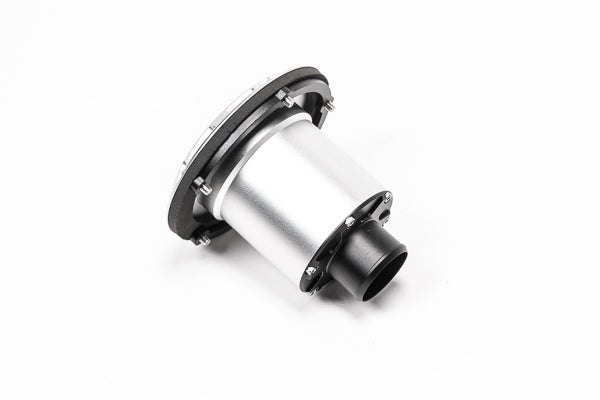

A remote mounted fuel filler is mounted elsewhere on the vehicle, such as the fender, rather than directly on the fuel tank or fuel cell. The Radium 20-1005-V is a vented standard filler for remote mounting, usually secured to the vehicle body. A filler hose links it to the fill neck on the fuel cell or surge tank.

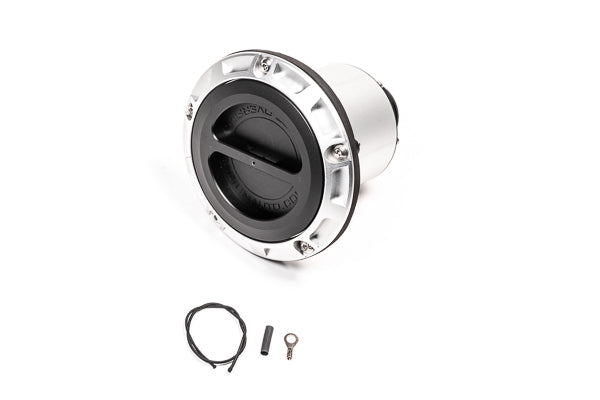

The threaded, vented cap has roll-over protection in case the vehicle becomes inverted. A machined 1.5in barb on the fill neck takes the filler hose. The outlet adapter can be swapped by removing 6 screws, and the filler can be upgraded to a dry break with the 20-0549-V because it shares threads with Radium's dry break and swing valve caps.
Key Features
-
Vented Cap: Threaded vented cap with roll-over protection
-
Remote Mount: Mounts to the body, such as a fender, away from the tank
-
1.5in Barb: Machined straight 1.5in barb for the filler hose
-
Swappable Outlet: Outlet adapter changes to 2.25in or 24AN by removing 6 screws
-
Dry Break Upgrade: Shares threads with Radium dry break and swing valve caps - upgradable with 20-0549-V
-
Construction: Anodised aluminium housing and nut ring with stainless steel hardware
What's Included
- Vented cap with roll-over protection
- Flanged fill neck for 1.5in ID hose
- Ozone and flame-resistant gasket
- Anodised aluminium nut ring
- Stainless steel M5 bolts
- Tether components
Optional Parts
-
Radium Dry Break, 1.5In, Female, Vented (20-0549-V) - upgrade the filler to a 1.5in female vented dry break
-
Radium Remote Mount Filler Adapter, 2.25In (20-1007) - swap the outlet to 2.25in filler hose
-
Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) - swap the outlet to a 24AN connection
-
Radium Remote Mount Filler Adapter, 1.5" (20-1015) - replacement 1.5in outlet adapter
-
Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) - 1.5in ID filler hose kit
-
Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) - clear 1.5in filler hose kit
-
Radium Fuel Cap, Remote Mount, Vented (20-0548-V) - replacement vented cap
-
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) - FCST-X straight remote fill neck for the tank end
-
Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) - FCST-X 24AN elbow remote fill neck for the tank end
Important Notes
- Requires a 77mm (3.03in) hole to be fabricated
- Tank-side accessories (fill neck) and filler hose are not included
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Universal - see Application
For application support, send your vehicle details to TJ Auto Parts through the Parts Finder.
Supplier-listed applications:
- Universal - see Application
Note: Compatibility information is provided as a general guide only. Some vehicles may have multiple part variations for the same model or engine. To ensure this product is the correct fit and to be eligible for our Fitment Guarantee, please contact our team before purchasing.
