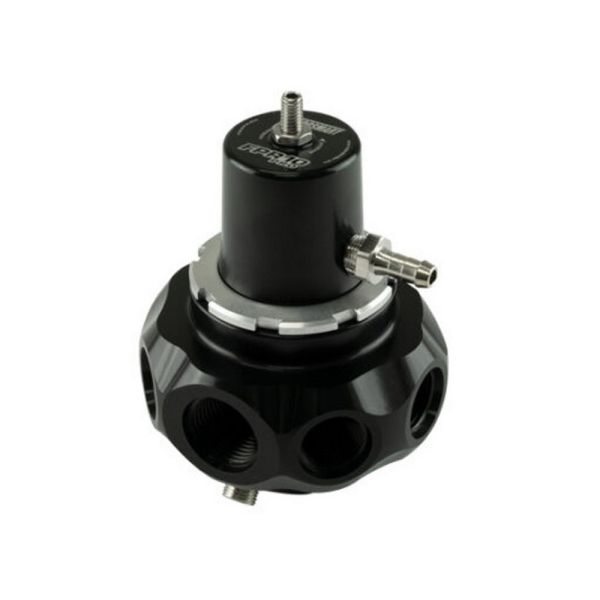

The Turbosmart FPR Pro 10 Series provides market leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel feed and -8 / 8AN return fittings.
Utilising Turbosmart's Stainless Steel Valve Seat & Milspec Diaphragm the FPR10 Pro Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels.
Turbosmart's FPR10 Pro Range includes 1 x 10AN inlet, 4 x 8AN outlet ports and a 8AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for Mechanical Pump Systems.Available in Pro (EFI) and Pro M (Mechanical Pump) - Suits Up to 3000HP Systems.FeaturesStainless Steel Valve SeatSuitable for all fuel types1:1 Class Leading Ratio & ResponseAdjustable Pressure1/8 NPT Pressure Sensor PortUnique Locking Collar DesignMilspec DiaphragmDetailed Specific Fuel Flow Data & SpecFPR10 Pro Series (EFI & Mechanical) Available In:FPR10 Pro 5 Port EFI Suit -10AN (Black) TS-0404-1242FPR10 Pro M 5 Port Mechanical Pump Suit -10AN (Black) TS-0404-1342Whats in the box?Fuel Pressure RegulatorMounting bracket2 x M5 Mounting ScrewsTurbosmart Decal
